Product features
LDD, LD series spiral single quick freezing device is the latest domestic model developed by our company by absorbing the advanced design ideas of Japan's MIZUNO Co., Ltd. and Sweden's FRIGOSCANDIA company and carrying out independent innovation. It not only has the energy saving and land occupation of similar models. In addition to the characteristics of province, it also has the following characteristics:

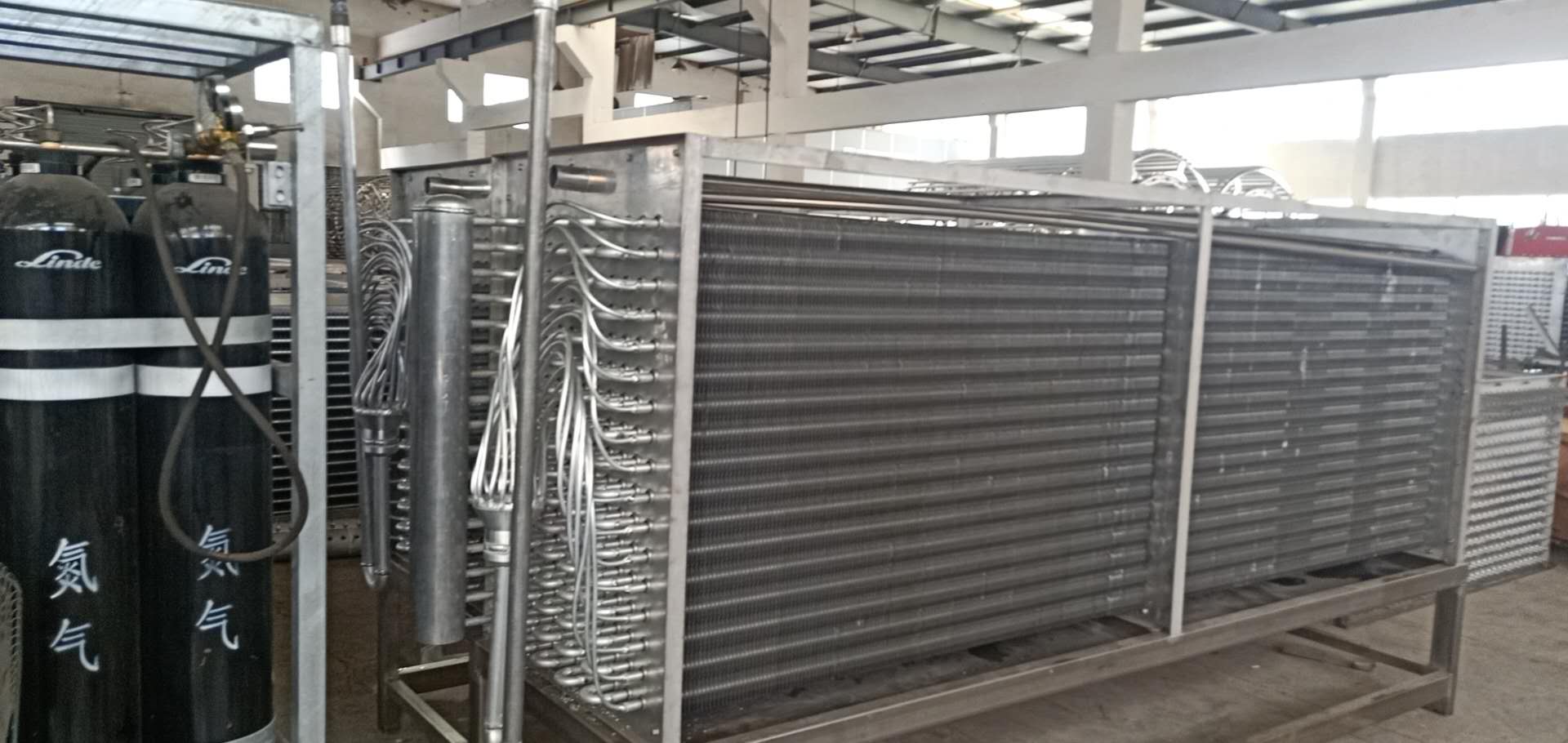

1. Using high-efficiency large-fin all-aluminum evaporator (or large-fin copper tube evaporator), high heat transfer coefficient, low frosting rate, long continuous working time; uniform and reasonable airflow organization.

2. The key supporting parts and the parts that are easy to be contaminated and not easy to clean are made of thick polished stainless steel square pipes, which meet the requirements of HACCP specifications.

3. The internal structure and driving mechanism are designed reasonably and concisely, and it is convenient and convenient to repair and replace parts.

4. The new drive system is adopted to ensure the synchronous operation of the mesh belt and the brick tower; and after the system stops, the residual tension of the mesh belt is zero, thereby effectively extending the service life of the conveyor mesh belt.

5. The accessories of all models are selected with international quality, domestically manufactured products, easily damaged parts are easily purchased and replaced, and operating costs are low.

6. Frozen product range: This device is suitable for fast freezing of small packaged food, prepared food, ice cream and other foods, and is also suitable for seafood such as scare, fish, and fried foods with a long freezing time.

7. This series of models can be equipped with our company's unique computer-controlled CIP automatic cleaning system according to user requirements, and can be specially designed according to users' special requirements.

Product composition
1. This series of products includes LDD double tower series and LD single tower series, and there are various types of products for selection according to different blowing styles and different inlet and outlet positions.

2. Model description

Main standard technical parameters and dimensions

LD single spiral technical parameters

Model	LD-2012-300	LD-2512-500	LD-2518-750	LD-2918-1000
Standard production volume kg/h	300	500	750	1000
Freezing time min	20~200 minutes adjustable
Feed temperature ℃	+50
Discharge temperature ℃	-18
Inside temperature℃	-35
Cold consumption KW	65	100	146	188
Installed power KW	11.5	19.5	24.0	31.5

Note:
1. The standard design output is based on naked frozen fried chicken nuggets, and the loading density is 5kg/m2
2. Cold consumption refers to the working conditions of evaporating temperature -42℃ and condensing temperature +35℃
3. The refrigerant can be R717, R22 or R404A, etc.

LD single spiral dimensions

Model	L(mm)	L0(mm)	W(mm)	H1(mm)	H0(mm)	H(mm)
LD-2012-300	8600	5600	4500	2800	1050	3300
LD-2512-500	10550	7800	5400	2800	1050	3300
LD-2518-750	10550	7800	5400	3750	1050	4300
LD-2918-1000	12200	8600	5850	3759	1050	4300

Frozen product range: This device is suitable for fast freezing of small packaged food, prepared food, ice cream and other foods, and is also suitable for seafood such as scare, fish, and fried foods with a long freezing time.
