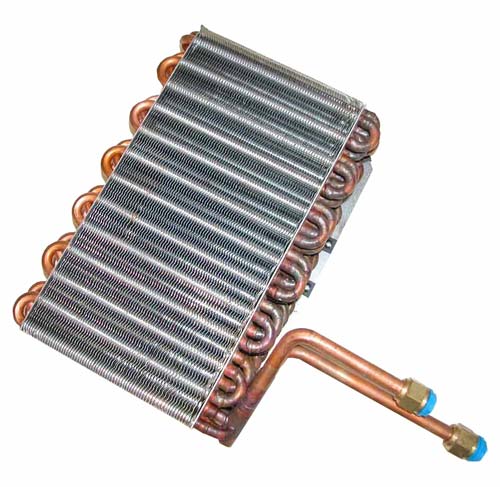

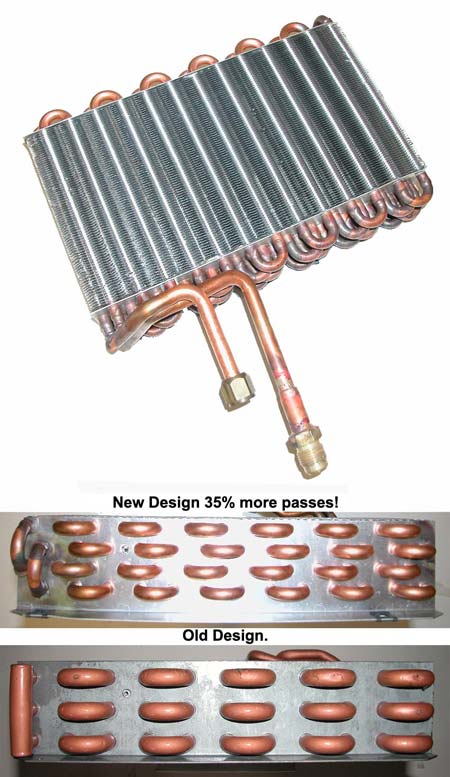

Cold Room Evaporator Unit

• Features
• Technical Data
• Application

● Cold Room Evaporator Unit
● Widely used in refrigeration industry
● High quality,Reasonable price
● Coating:Can be Epoxy coating
● Copper tube:9.52*0.35mm.

Feature:
1. material :copper , aluminum ,galvanized plate
2. aluminum foil: hydrophilic or bare
3. fin type: louver fin or flat fin or corrugated fin
4. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. suitable for R134A, R22, R404A, R407C refrigerant and so on
8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.widely used in refrigeration industry, cold room and other cooling system.
12. we can supply products as per customized samples or drawing.
