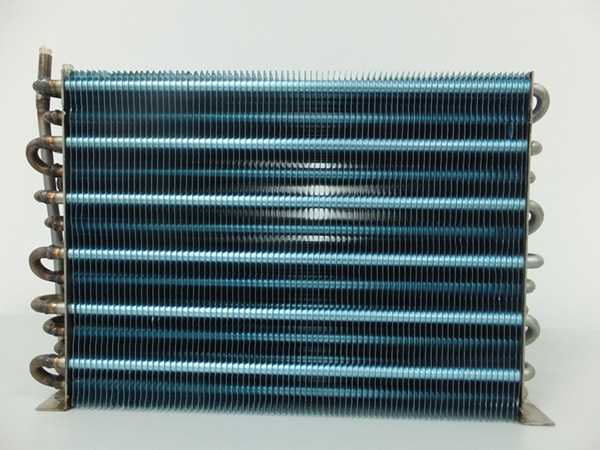

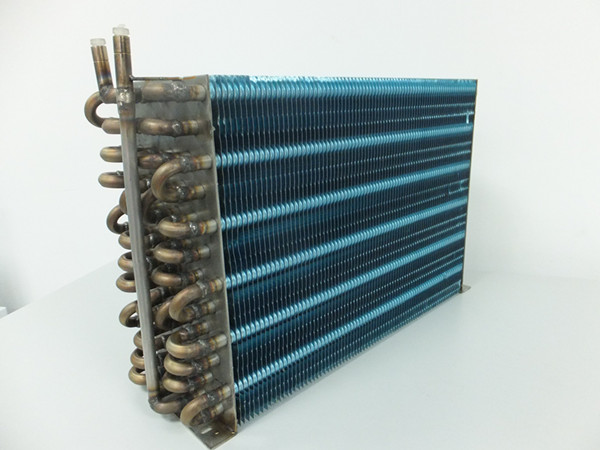

Stainless Steel Tube with Blue Fin Heat Exchanger

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application

Stainless Steel Tube with Blue Fin Heat Exchanger use for dairy, food, chemicals & pharma

CONSTRUCTION

Tubes

Stainless steel tube AISI-316 or 304, specially manufactured for the coil's construction with thickness from 0,5mm to 1mm.

Fins

Corrugated fins with auto-separation collar, covering all the tube surface maximising the global inter change and adjusting the fin's

spacing (from 1,8 mm to 12 mm). These can be manufactured in aluminium, pre-coated aluminium, copper or stainless steel.

All these materials can be coated by the electrophoresis treatment for corrosive ambient.

Casing

This is built from galvanized steel, aluminium or stainless steel. The structure is totally riveted between the frames, top and bottom
sides, this gives a rigid and compact coil.

The perforations for the accommodation tubes are with protection collars for avoiding fractures.

Headers

The headers are manufactured totally in stainless steel. For direct expansion coils, the distributors and capillary are also in stainless steel.

Welding

TIG, without any material addition; this guarantee the circuit hold back and the perfect welding.

Test

The pressure testing is made to all coils, with dried air at 38kg/cm2 and submerged in a water to verify are not leakages.
All coils evaporators and condensers are charged with pressure and provided with a shell for verifying in the reception.
A quality stamp certufy the test and hold back of each coil and allow the perfect draw up of the product assigned reference number and manufacturing.

Welding surface can be sandblasted
