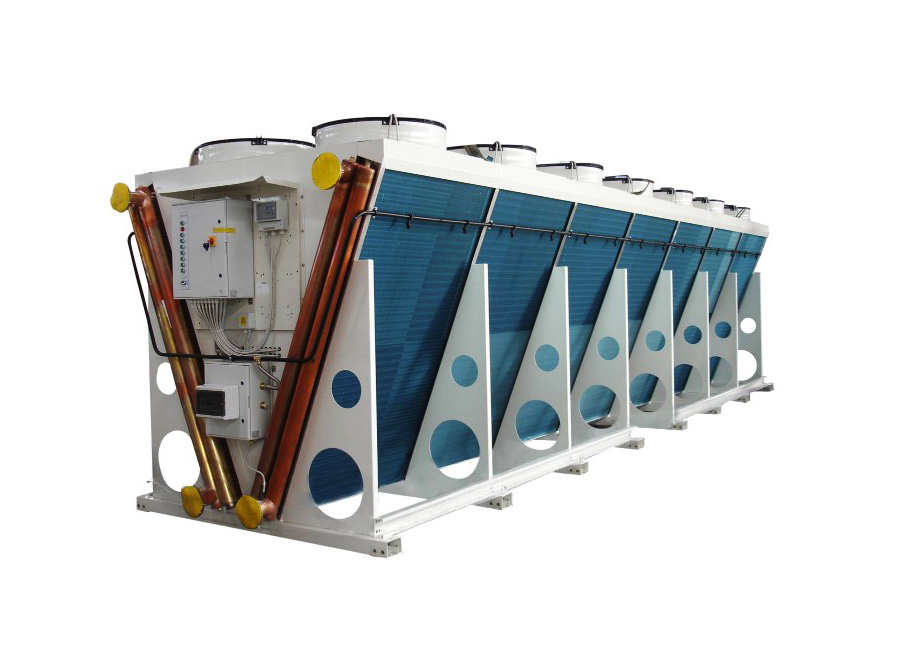

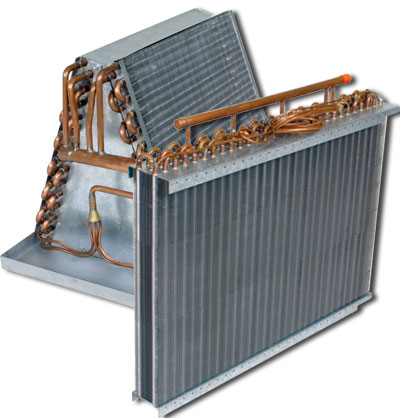

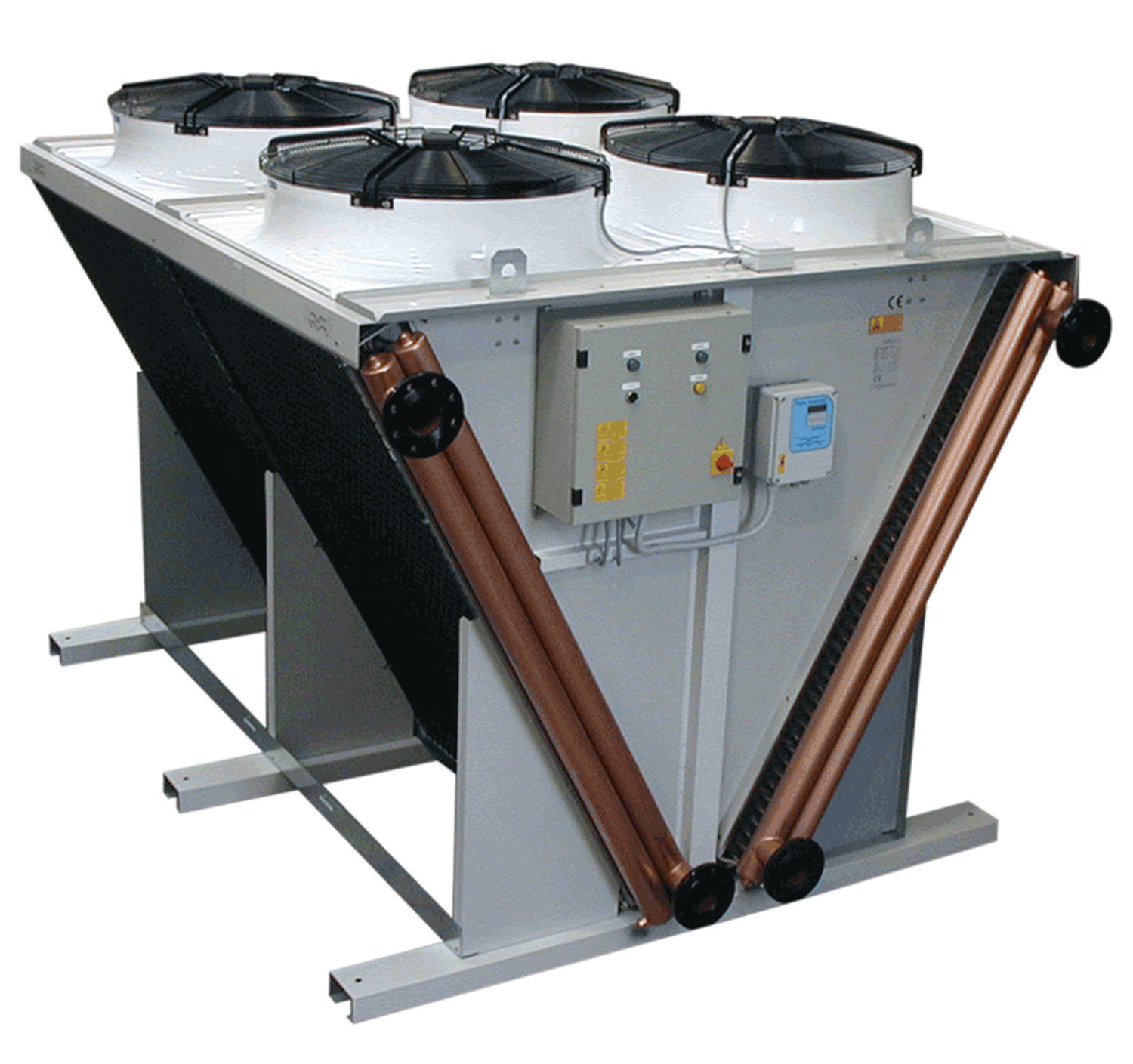

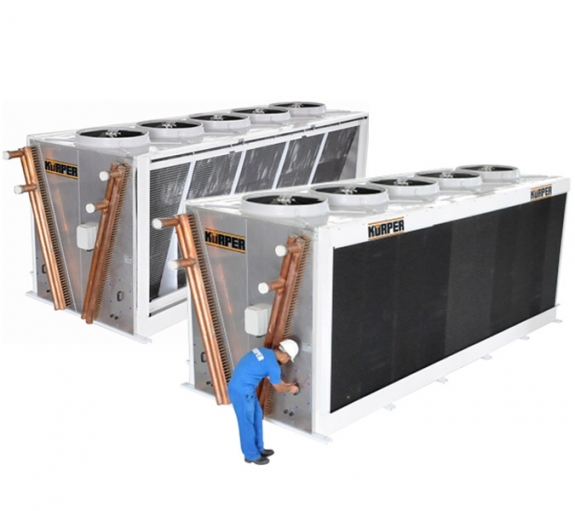

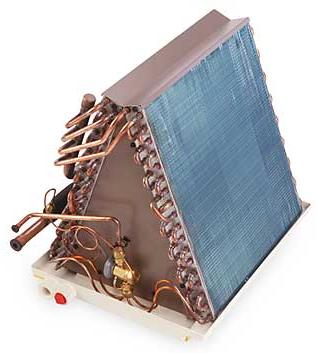

Air cooled tube fin heat exchanger

The max diamension of our heat exchanger can be 7-8m, Widely used in desalination, heat recovery, drying, dehumidification etc industry.

Specification

Tube sizes range from 7mm to 15.88mm. Materials include copper, aluminum, stainless steel, and others.
This product is brazed or welded depending on the material and application.

A wide range of Air Cooled Heat Exchanger at affordable rates. Known for efficiently transferring heat, these heat exchangers are fabricated in tandem with the set industry norms at our vendor’s premises. It is a pressure vessel, which can cool a circulating fluid within finned tubes. Our range is known for its excellent functionality and easy installation, meeting the demands of refinery and petrochemical industry. We are looking for queries from all over the world.

Features:

Cost-effective operation

Minimal maintenance

Longer service life

Fin Type	Copper Tube O.D. (mm)	Row Space (mm)	Hole Space (mm)	Fin Thickness (mm)	Fin Space(mm)
Fin Type	Copper Tube O.D. (mm)	Row Space (mm)	Hole Space (mm)	Fin Thickness (mm)	Flat fin	Sine wave with blade fin	Smooth sine wave fin	Window fin	Sesamoid fin
A	7	12.7	21	0.105	/	/	1.3	1.3	/
B	7	13.2	17.6	0.105	/	/	1.3	1.3	/
C	7	12.7	20.4	0.105	/	/	1.3~1.8	1.3~1.8	/
D	7.94	15.88	25.4	0.105	1.8~3.0	1.8~3.0	1.8~3.0	1.8~3.0	/
E	7.94	19.05	22	0.105~0.13	1.4~3.0	1.4~3.0	1.4~3.0	1.4~3.0	/
E	9.52	22	25.4	0.105~0.15	1.6~3.2	1.6~3.2	1.6~3.2	1.6~3.2	/
F	9.52	22	25.4	0.18~0.4	3.5~6.35	/	/	/	/
G	9.52	21.65	25	0.105~0.18	1.6~3.2	1.6~3.2	1.6~3.2	1.6~3.2	/
H	9.52	21.65	25	0.15~0.24	3.2~6.35	3.2~6.35	3.2~6.35	/	/
I	12.75	27.5	31.75	0.115~0.15	1.5~3.5	1.5~3.5	1.5~3.5	1.5~3.5	1.6~3.2
J	15.88	33	38.1	0.115~0.15	1.5~4.0	1.5~4.0	1.5~4.0	/	/
K	15.88	34.64	40	0.115~0.15	/	2.6~3.5	2.6~3.5	/	/
