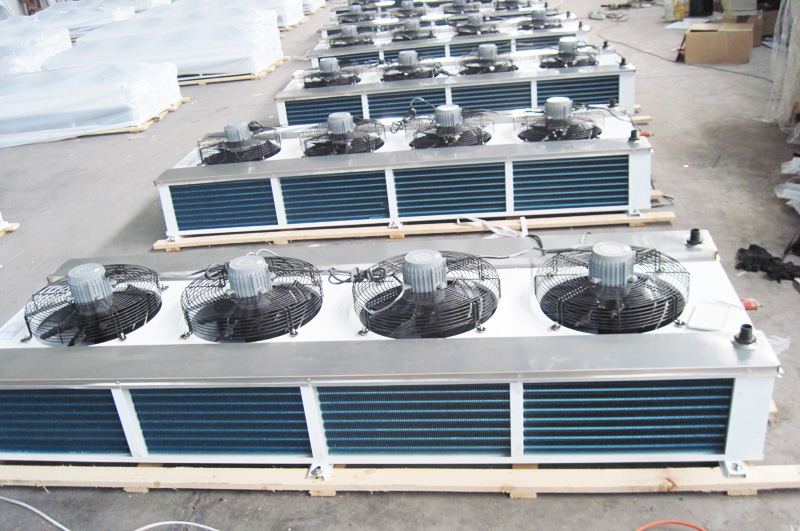

Hot Selling Eveporative Unit Cooler With Air Purifier

Water-melt-frost system is generally used in the large capacity cold air machine. It is simple and reliable, has good effect in frost melting, less warehouse temperature rise in frost melting process, especially suitable for fast freezing refrigerating warehouse. The disadvantage of this water-melt-frost system is that the water used to melt frost should not lower than 15℃, so this kind of air cooler can’t be adopted by the area of low atmosphere temperature.

Various water-melt-frost air coolers are provided for selection.


BR>

Main Technical Parameters of DD-type Low Noise High
Efficiency Air Coolers

Type	Refrigerating Capacity	Cooling Area （mm）	Pitch of Fins(mm)	Air cooler				Electric pipe
				Qty.	Dia	Wind Rate	Wind Pressure		Power	Voltage Water Flow	KW×pcs	Water drain （kw）	Voltage Water Flow
DD-1.4/7	1400(1200)	8.4	6	1	φ300	1700	140		80	380	0.5×2	0.5	380
DD-2.35/12	2350(2000)	11.5	6	2	φ300	2×1700	140		2×80	380	0.9×2	0.9	380
DD-3.0/15	3000(2600)	15.2	6	2	φ300	2×1700	140		2×80	380	0.9×2	0.9	380
DD-4.0/22	4000(3450)	22.8	6	2	φ350	2×3200	90		2×120	380	1.2×2	1.2	380
DD-6.0/30	6000(5150)	31.7	6	2	φ350	2×3200	90		2×200	380	1.5×2	1.5	380
DD-8.0/40	8000(6900)	43.4	6	2	φ400	2×4800	120		2×250	380	1.6×2	1.6	380
DD-12.0/60	12000(10300)	59.0	6	2	φ400	2×4800	120		2×250	380	1.8×2	1.8	380
DD-16.0/80	16000(13750)	87.8	6	2	φ450	2×6600	160		2×550	380	1.6×5	1.6	380
DD-20.0/100	20000(17200)	106.7	6	3	φ450	3×6600	160		3×550	380	1.8×5	1.8	380
DD-24.0/120	24000(20650)	131.5	6	3	φ450	3×6600	160		3×550	380	2.4×5	2.4	380
DD-28.0/140	28000(24100)	153.5	6	4	φ450	4×6600	160		4×550	380	3×5	3.0	380
DD-32.1/160	32100(27600)	175	6	4	φ500	4×9900	170		4×740	380	3.2×5	3.2	380
DD-37.4/200	37400(32200)	208	6	2	φ600	2×10000	200		2×1100	380	2.7×8	2.7	380
DD-46.8/250	46800(40300)	259	6	3	φ600	3×10000	200		3×1100	380	3.3×8	3.3	380
DD-56.2/310	56200(48300)	310.5	6	3	φ600	3×12000	200		3×2200	380	3.5×8	3.5	380

Main Technical Parameters of DJ-type Low Noise High Efficiency Air Coolers

Type	Refrigerating Capacity	Cooling Area （mm）	Pitch of Fins(mm)	Air cooler				Electric pipe
				Qty.	Dia	Wind Rate	Wind Pressure		Power	Voltage Water Flow	KW×pcs	Water drain （kw）	Voltage Water Flow
DJ-13.2/8	1320(1150)	7.95	9	2	φ300	2×1700	140		2×80	380	0.9×2	0.9	380
DJ-2.3/15	2300(2000)	15.9	9	2	φ350	2×3200	90		2×120	380	1.2×2	1.2	380
DJ-4.0/20	4000(3450)	21.8	9	2	φ350	2×3200	90		2×200	380	1.5×2	1.5	380
DJ-5.1/30	5100(4400)	30	9	2	φ400	2×4800	120		2×250	380	1.6×2	1.6	380
DJ-7.8/40	7800(6700)	40.2	9	2	φ400	2×4800	120		2×250	380	1.8×2	1.8	380
DJ-9.8/55	9800(8400)	60.3	9	2	φ450	2×6600	160		2×550	380	1.6×5	1.6	380
DJ-12.8/70	12800(11000)	73.3	9	3	φ450	3×6600	160		3×550	380	1.8×5	1.8	380
DJ-15.7/85	15700(13500)	90.4	9	3	φ450	3×6600	160		3×550	380	2.4×5	2.4	380
DJ-18.8/100	18800(16160)	105.3	9	4	φ450	4×6600	160		4×550	380	3×5	3.0	380
DJ-21.6/115	21600(18600)	120.6	9	4	φ500	4×9900	170		4×740	380	3.2×5	3.2	380
DJ-29.3/140	23900(26600)	142.7	9	2	φ600	2×10000	420		2×1100	380	2.7×8	2.7	380
DJ-29.0/170	29000(24900)	178	9	3	φ600	3×10000	420		3×1100	380	3.3×8	3.3	380
DJ-35.9/210	35900(30900)	209	9	3	φ600	3×12000	420		3×2200	380	3.5×8	3.5	380

Cold storage room, cold storage house, cold room.
