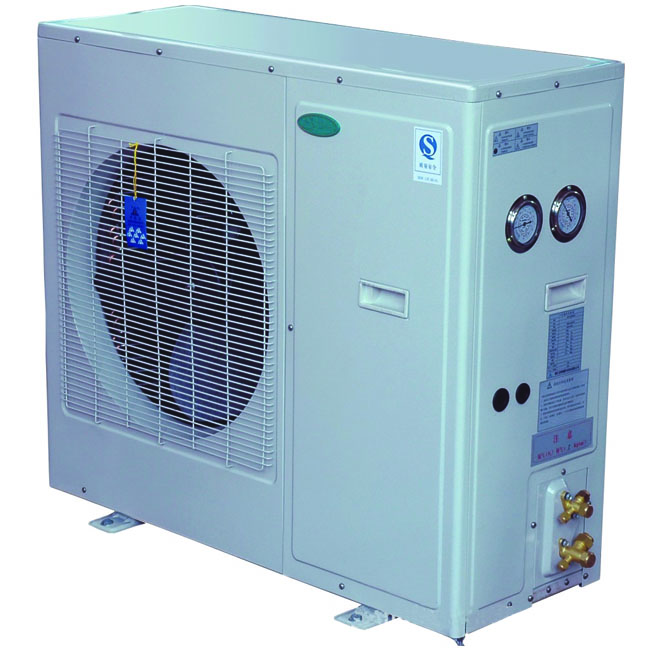

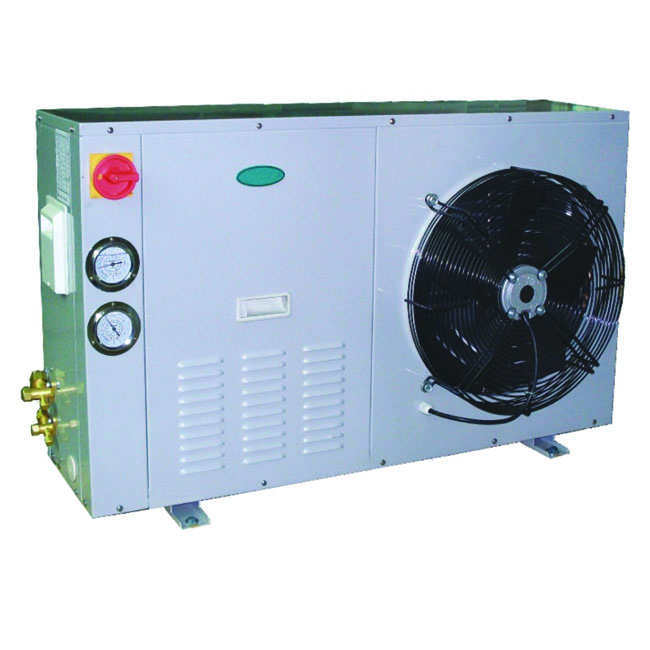

L Type Condensing Unit
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
temperature range from -5 ℃ to 10℃ , and -10 ℃ to 18℃ .
2. Closed box type with compact structure and good appearance;
3. Equiped matched with copeland, sanyo and danfoss and other freezing scroll compressor
4. Condenser with copper pipe plus aluminum fin type for high efficiency ans stabilization
5. Terminal box with convenient wiring
6. Convenient to engineering and repair with installation stop valves
L type condensing unit middle-high temperature parameter
|
Model |
200H |
300H |
400H |
500H |
|||
|
Compressor model(copeland, Sanyoo, Dakin, Danfoss) |
2HP |
3HP |
4HP |
5HP |
|||
|
Cooling capacity |
Evaporation 7℃ |
W |
6150 |
8870 |
12000 |
14700 |
|
|
|
Evaporation 5℃ |
W |
5730 |
8260 |
11050 |
13700 |
|
|
|
Evaporation 0℃ |
W |
4770 |
6890 |
8880 |
11250 |
|
|
Room temperature |
℃ |
5~10℃ |
|||||
|
Refrigerant |
R22 |
||||||
|
Supply power |
380v/3P/50HZ |
||||||
|
Condenser |
Fan qty |
1*Φ450 |
1*Φ450 |
2*Φ450 |
2*Φ450 |
||
|
Fan voltage |
V |
220 |
220 |
220 |
220 |
||
|
Fan power |
W |
60 |
60 |
60*2 |
60*2 |
||
|
Interface |
Suction interface |
mm |
Φ16 |
Φ16 |
Φ19 |
Φ19 |
|
|
Liquid interface |
mm |
Φ10 |
Φ10 |
Φ12 |
Φ12 |
||
|
External dimension |
L |
mm |
1020 |
1020 |
1020 |
1020 |
|
|
W |
mm |
420 |
420 |
420 |
420 |
||
|
H |
mm |
840 |
840 |
1240 |
1240 |
||
|
Installation dimension |
(A * B) |
mm |
580*380 |
580*380 |
580*380 |
580*380 |
|
Design condition: Evaporator temp. 5 ℃, ambient temp. 35℃, suction superheat 10℃
|
Model |
200M |
300M |
400M |
500M |
600M |
||
|
Compressor model |
ZB15KQ |
ZB21KQ |
ZB29KQ |
ZB38KQ |
ZB45KQ |
||
|
Cooling capacity |
Evaporation -5℃ |
W |
3290 |
5700 |
7000 |
9100 |
11550 |
|
|
Evaporation -7℃ |
W |
3620 |
5270 |
6320 |
8300 |
10650 |
|
|
Evaporation -10℃ |
W |
3190 |
4660 |
5390 |
7200 |
9390 |
|
Room temperature |
℃ |
-5~5℃ |
|||||
|
Refrigerant |
R22 |
||||||
|
Supply power |
380v/3P/50HZ |
||||||
|
Condenser |
Fan qty |
1*Φ450 |
1*Φ450 |
1*Φ450 |
2*Φ450 |
2*Φ450 |
|
|
Fan voltage |
V |
220 |
220 |
220 |
220 |
220 |
|
|
Fan power |
W |
60 |
60 |
60 |
60*2 |
60*2 |
|
|
Interface |
Suction interface |
mm |
Φ16 |
Φ16 |
Φ16 |
Φ19 |
Φ19 |
|
Liquid interface |
mm |
Φ10 |
Φ10 |
Φ10 |
Φ12 |
Φ12 |
|
|
External dimension |
L |
mm |
1020 |
1020 |
1020 |
1020 |
1020 |
|
W |
mm |
420 |
420 |
420 |
420 |
420 |
|
|
H |
mm |
840 |
840 |
840 |
1240 |
1240 |
|
|
Installation dimension |
(A * B) |
mm |
580*380 |
580*380 |
580*380 |
580*380 |
580*380 |
Design condition: Evaporator temp. -7 ℃, ambient temp. 35℃, suction superheat 10℃
|
Model |
200L |
300L |
400L |
500L |
600L |
||
|
Compressor model |
ZB15KQE |
ZB21KQE |
ZB29KQE |
ZB38KQR |
ZB45KQE |
||
|
Cooling capacity |
Evaporation -5℃ |
W |
3660 |
5630 |
7680 |
9550 |
11200 |
|
|
Evaporation -7℃ |
W |
3630 |
5180 |
7070 |
8790 |
10350 |
|
|
Evaporation -10℃ |
W |
2920 |
4570 |
6210 |
7740 |
9120 |
|
|
Evaporation -20℃ |
W |
|
2930 |
3930 |
4940 |
5850 |
|
|
Evaporation -23℃ |
W |
|
2540 |
3390 |
4280 |
4080 |
|
|
Evaporation -25℃ |
W |
|
2300 |
3070 |
3880 |
4610 |
|
Room temperature |
℃ |
-18℃ |
|||||
|
Refrigerant |
R404A |
||||||
|
Supply power |
380v/3P/50HZ |
||||||
|
Condenser |
Fan qty |
1*Φ450 |
1*Φ450 |
1*Φ450 |
2*Φ450 |
2*Φ450 |
|
|
Fan voltage |
V |
220 |
220 |
220 |
220 |
220 |
|
|
Fan power |
W |
60 |
60 |
60 |
60*2 |
60*2 |
|
|
Interface |
Suction interface |
mm |
Φ16 |
Φ16 |
Φ16 |
Φ19 |
Φ19 |
|
Liquid interface |
mm |
Φ10 |
Φ10 |
Φ10 |
Φ12 |
Φ12 |
|
|
External dimension |
L |
mm |
1020 |
1020 |
1020 |
1020 |
1020 |
|
W |
mm |
420 |
420 |
420 |
420 |
420 |
|
|
H |
mm |
840 |
840 |
840 |
1240 |
1240 |
|
|
Installation dimension |
(A * B) |
mm |
580*380 |
580*380 |
580*380 |
580*380 |
580*380 |
Design condition: Evaporator temp. -23 ℃, ambient temp. 35℃, suction superheat 10℃
