Air Conditioner

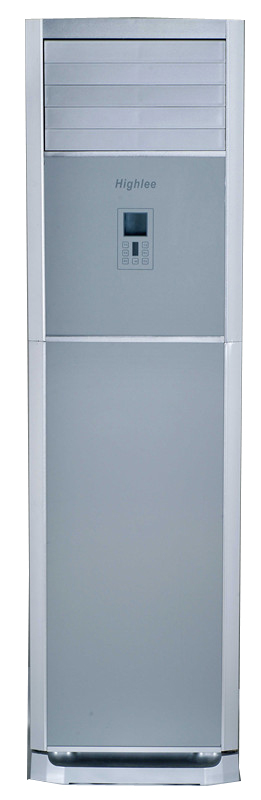

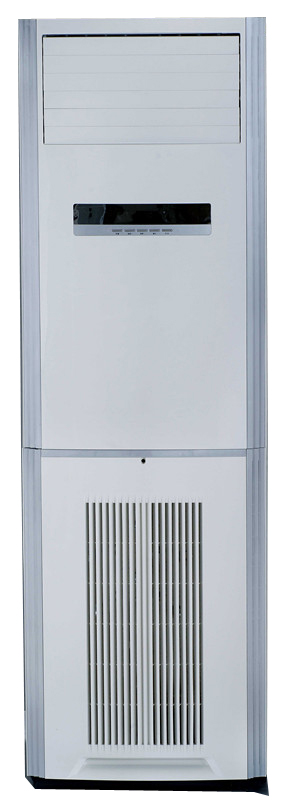

Floor Standing type Air Conditioner

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application

Voltage: 220V-50Hz, 60Hz; 380V-50Hz-3phase;
Gas: R22, R407c...
Function: Cooling only, Cooling and heating;
Capacity: 18000BTU, 24000BTU, 42000BTU, 48000BTU.

High Efficiency Compressor

Hydrophilic Fins & Inner Threads Copper Tube

Quiet and Moden design

Remote Control

Sleep Operation

Strong Cooling And Heating

Wide Voltage Running

BTU		18000BTU	24000BTU	36000 BTU	42000BTU	48000BTU
Model			KFR-70LW	KFR-100LW	KFR-120LW	KFR-140LW
Power Supply			220V/ 50Hz	220V/50HZ	220V/ 50Hz	220V/50Hz
Capacity	Cooling		7000W/24000Btu	10000W/36000Btu	12000W/42000Btu	14000W/48000BTU
Capacity	Heating		7000W/24500Btu	10000W/36000Btu	12500W/42000Btu	14500W/48000BTU
lnput Power	Cooling		2600W	3700W	4500W	4800W
lnput Power	Heating		2600W	3700W	4600W	4800W
Currency (Amp)	Cooling		11.5A	9.0A	11.5A	15A
Currency (Amp)	Heating		12A	9.0A	12A	17A
Refrigerant			R22	R22	R22	R22
Air flow (m3/hour)			1200	1150	1500	1700
Noise(dBA)	Indoor(kg)		46	55	55	55
Noise(dBA)	Outdoor(kg)		56	65	65	65
Weight	Indoor(gross)		40kg	58kg	51kg	54kg
Weight	Outdoor(gross)		64kg	69kg	105kg	110kg
Dimension for unit	Indoor		1715315480mm	1715315480mm	1900350600mm	1900350600mm
Dimension for unit	Outdoor		800290600mm	860375855mm	9503551245mm	9503551245mm
Dimension for Package	Indor		1795380570mm	1795380570mm	4206952000mm	4206952000mm
Dimension for Package	Outdoor		930390670mm	1010455900mm	11104551305mm	11104551305mm
Applicable Area			32-42	45-65	50-80	85-95
Quantity(20/40H)			41/100	32/80	21-52	21-52
