Air Conditioner

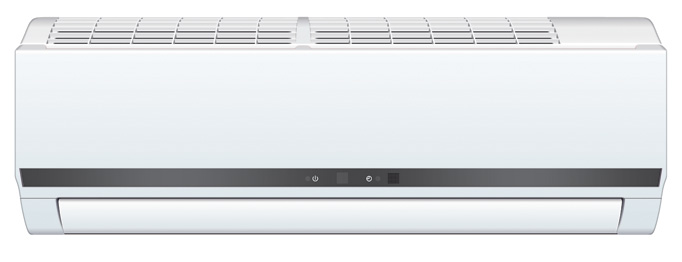

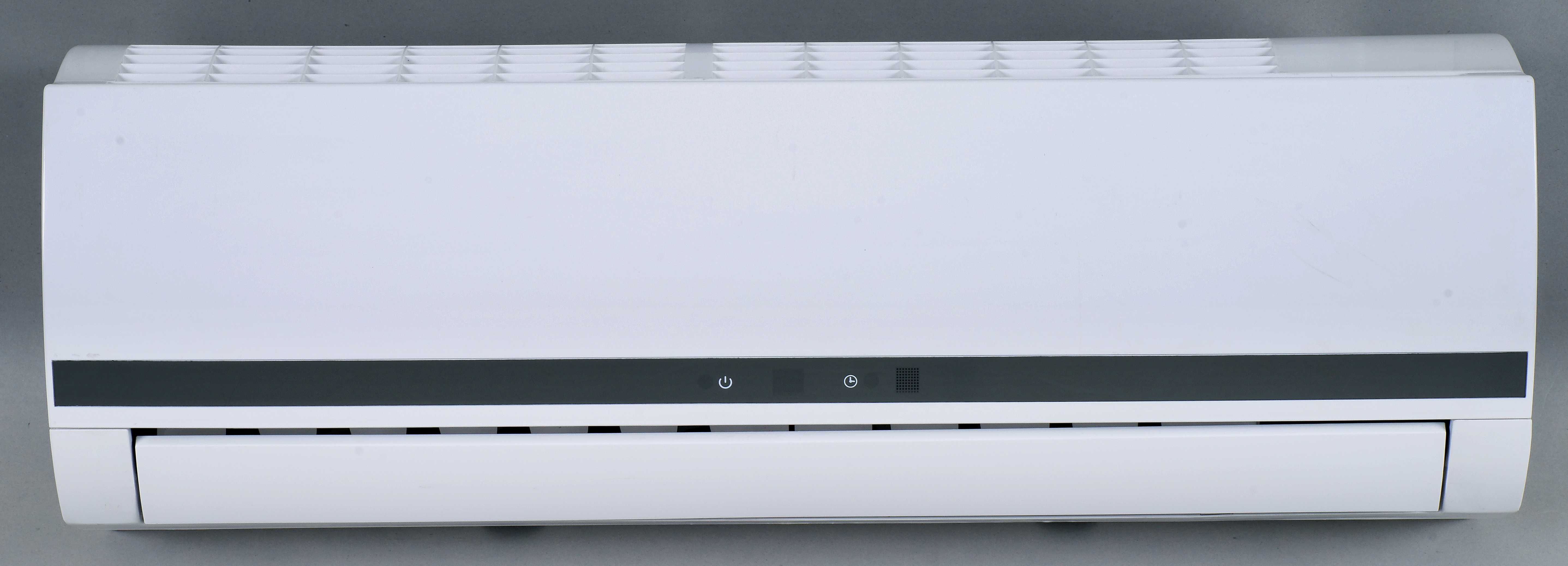

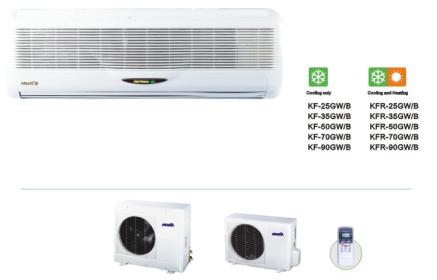

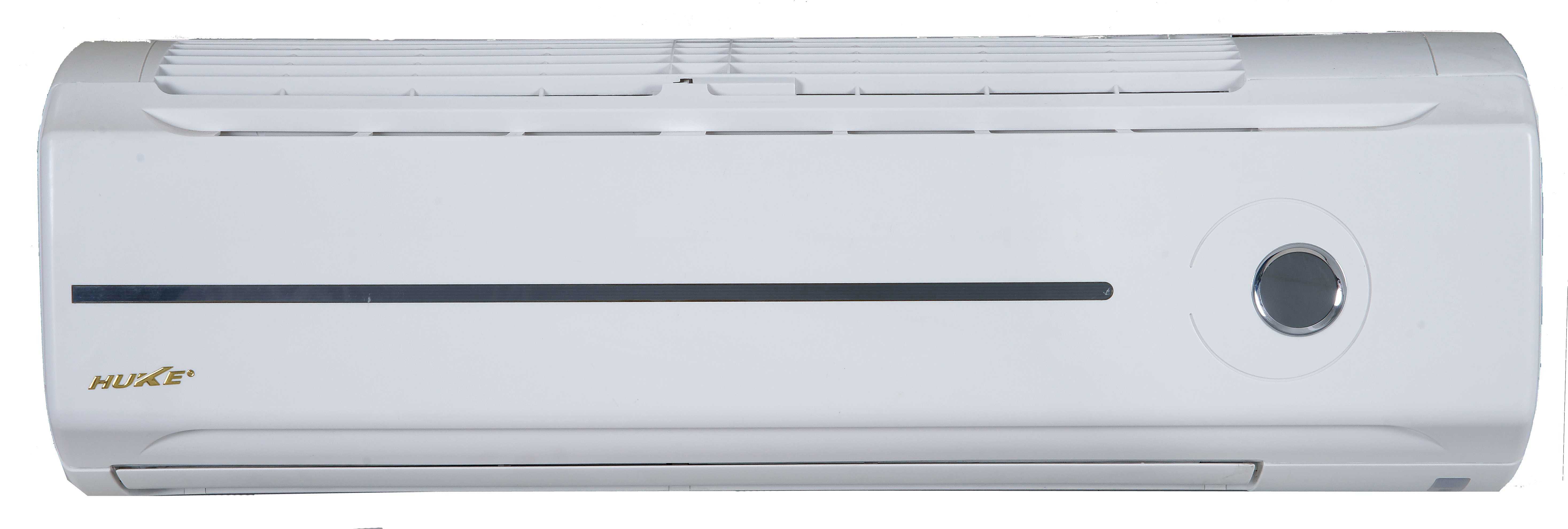

Wall Split type Air Conditioner

We're here to help Easy ways to get the answers you need.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application

Voltage: 220V-50Hz, 60Hz; 110V-60Hz;
Gas: R22, R407c, R410a;
Function: Cooling only, Cooling and heating;
Capacity: 9000BTU, 12000BTU, 18000BTU, 24000BTU.

High Efficiency Compressor

Hydrophilic Fins & Inner Threads Copper Tube

Quiet and Moden design

Remote Control

Sleep Operation

Strong Cooling And Heating

Wide Voltage Running

BTU		9000BTU	12000BTU	18000BTU	24000BTU	NOTES
	model	KFR-25GW/EM	KFR-35GW/EM	KFR-50GW/EL	KFR-70GW/EL
Power Supply		220V/ 50HZ	220V/50HZ	220V/ 50HZ	220V/ 50HZ
Capacity	Cooling	2500W/9000Btu	3500W/12000Btu	5000W/18000Btu	7000W/24000Btu
Capacity	Heating	2500W/9000Btu	3600W/12600Btu	5200W/18000Btu	7000W/24500Btu
lnput Power	Cooling	865W	1219W	1755W	2456W
lnput Power	Heating	900W	1257W	1800W	2500W
Currency (Amp)	Cooling	4.2A	6.0A	9.0A	11.5A
Currency (Amp)	Heating	4.3A	6.0A	9.0A	12A
Refrigerant		R410A	R410A	R410A	R410A
EER/COP		2.89/2.93	2.87/2.91	2.85/2.90	2.85/2.90
Air flow (m3/hour)		430	550	800	900
Noise(dBA)	Indoor	42	45	48	48
Noise(dBA)	Outdoor	50	55	56	56
Weight	Indoor(gross)	9kg	11kg	15kg	16kg
Weight	Outdoor(gross)	26kg	28kg	40kg	50kg
Dimension for unit	Indoor	745255195mm	745255195mm	1010320210mm	1010320210mm
Dimension for unit	Outdoor	645260540mm	760260540mm	800290600mm	800290600mm
Dimension for Package	Indor	780240305mm	780240305mm	1070290395mm	1070290395mm
Dimension for Package	Outdoor	740335600mm	880335600mm	930390670mm	930390670mm
Applicable Area		12--16	14--23	26-36	35-45
Quantity(20'/40HQ)		135/320	110/270	70/162	70/162
