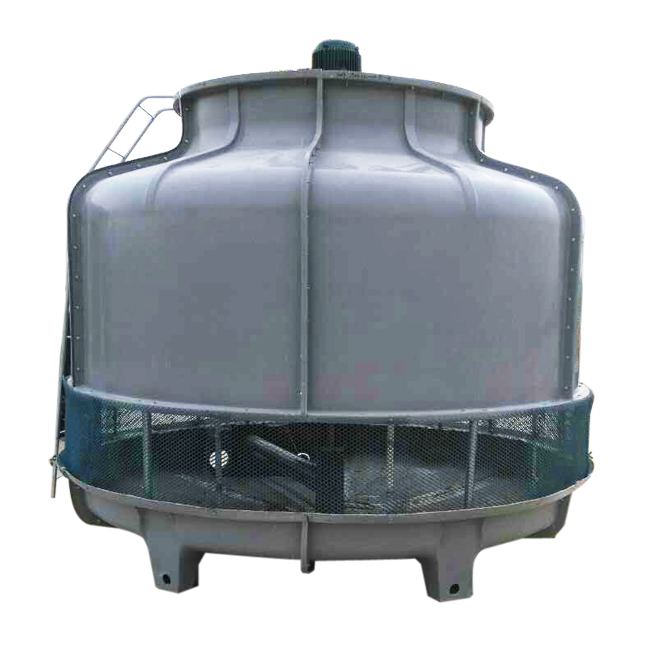

Glass Fiber Reinforced Plastics Cooling Tower

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com
WhatsApp:0086 13916147965
Mob:0086 13916147965

Features
Technical Data
Application
Certification
Part List
Reference

1.The counterflow cooling tower adopts the bottle type design with the smallest windward load, easy assembly, and sturdy and durable. Each component is produced strictly according to ISO9001 standard, and has the highest test efficiency and can operate with ultra-low noise. The shell is made of RP (glass fiber reinforced plastic), which has good water resistance and high strength. The surface can be mirrored with silver gray to prevent UV rays from aging. High-performance automatic rotating water-spraying head, using advanced reinforced plastic or aluminum alloy casting, low pressure and uniform water, uniform heat exchange rate, economical and practical, ideal for small and medium air conditioning.

2.It adopts the motor for totally enclosed cooling tower, which is suitable for long-term continuous work under high temperature and high humidity environment. It has the characteristics of high efficiency, low noise, safety and reliability, and can also be equipped with the specified brand motor and corresponding inverter according to user requirements.

3.With the imported V-belt, the outer casing is completely enclosed, the operation is stable, the noise is low, and the transmission efficiency is high.

4.Made of high-quality aluminum alloy, linear, high air volume, high efficiency, low noise and corrosion resistance.

5.Automatic rotary sprinkler, can evenly distribute water to every corner of the packing, long life, corrosion resistance, high blocking efficiency, energy saving

6.High quality high grade PVC inclined ladder with corrugated winding. The surface has good hydrophilicity, large surface area growth rate, small wind resistance, is not easy to block, and has high cooling efficiency.

MODEI	FIOW RATE (M3/h)		OVERALL DIMENSION		SUPPLY FAN		PIPING SIZE					NOISE (DB)
MODEI	WB28℃ TWB28℃	WB27℃ TWB27℃	H	D	(HP) MOTOR	FAN	INLET	OUTLET	DR	OF	FV	NOISE (DB)
LYC-W-10	4.1	4.3	1740	1060	1/4	670	40	40	25	25	15	50.0
LYC-W-15	6.1	6.5	1960	1060	1/4	670	40	40	25	25	15	52.0
LYC-W-20	8.2	8.6	2000	1200	1/4	670	50	50	25	25	15	53.0
LYC-W-25	10.2	10.8	2290	1430	1/2	770	80	80	25	25	15	530.
LYC-W-30	12.2	13.0	2290	1430	3/4	770	80	80	25	25	15	55.0
LYC-W-40	16.3	17.3	2360	1620	1	770	80	80	25	25	15	56.0
LYC-W-50	20.4	21.6	2595	1810	2	970	80	80	25	25	15	57.0
LYC-W-60	24.5	25.9	2595	2000	2	970	80	80	25	25	15	58.0
LYC-W-80	38.1	40.8	2690	2180	2	1170	100	100	25	25	25	59.0
LYC-W-100	44.1	46.8	2790	2180	2	1170	100	100	40	25	25	60.0
LYC-W-125	60.0	64.2	2875	2750	3	1470	100	100	40	25	25	61.0
LYC-W-150	74.1	78.6	2950	3070	3	1470	125	125	50	25	25	61.0
LYC-W-175	84.9	90.3	3200	3300	5	1750	125	125	50	50	25	62.0
LYC-W-200	99.6	105.3	3300	3300	5	1750	125	125	50	50	25	62.0
LYC-W-250	116.7	125.4	3600	3770	5	1750	150	150	50	50	40	63.0
LYC-W-300	138.6	147.6	3960	3770	7.5	2400	200	200	50	50	40	63.0
LYC-W-350	173.4	184.2	4150	4790	10	2400	200	200	50	50	40	63.5
LYC-W-400	194.7	206.7	4150	4790	10	2400	200	200	50	50	40	63.5
LYC-W-500	269.4	283.2	5200	5480	15	3000	250	250	80	80	40	65.0
LYC-W-600	298.8	315.9	5260	5580	15	3000	250	250	80	80	40	66.0
