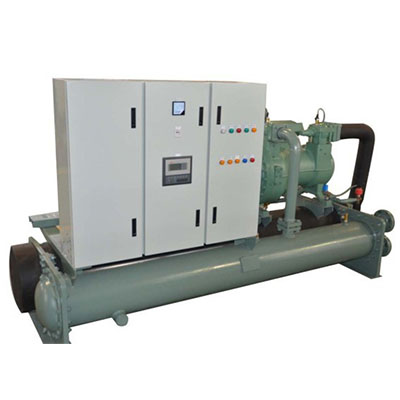

Screw Water Chiller/Screw Chiller

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application
Certification
Part List

Features
1.World famous brand new type and high-efficient screw-rotor compressor, with efficiency 20%~30% higher than those common ones. It has obtained several patents of Europe and America countries and passed the international quality certification of ISO9001.
2.High efficiency 5-to-6 rotor profile patent.
3.Capacity control apply to four-step (100%-75%-50%-25%),three-step (100%-66%-33%) and no step control system.
4.With 11 bearings and a balance piston against axial thrust. This extends longer bearings life 2.5 to 3.5 times than traditional design.
5.Designed with efficient silicon steel and special slots , and equipped with the inside and outside all around design to cool the flow channel so to ensure maximum efficiency of the compressor motor under any load.
6.Built-in oil pressing system ensure compressor maintaining the optimal lubricity without oil pump.
7.High efficiency double filtration oil separator ensures maxinum heat exchanger.
8.Efficient, low noise and small vibration.
9.Various options of refrigerants, R22, environment-friendly R134A, R407C etc.
10.All-wave compressor volume ratio(Vi=2.2/2.6/3.0/3.5) for selection to avoid the extra energy consumption caused by over or under compression.

Water screw chiller parameters (output temp 7℃ Single compressor)

Model			SLW-
			UNIT		100.1	135.1		180.1		195.1			235.1	260.1	305.1		320.1	350.1	385.1
Cooling capacity			Btu		341200.00	460620.00		614160.00		665340.00			801820.00	887120.00	1040660.00		1091840.00	1194200.00	1313620.00
			RT		28.41	38.35		51.14		55.40			66.76	73.86	86.65		90.91	99.43	109.38
			Kw		100.00	135.00		180.00		195.00			235.00	260.00	305.00		320.00	350.00	385.00
			x104Kcal/h		8.60	11.60		15.50		16.80			20.30	22.40	26.30		27.60	30.20	33.20
Control mode			PLC automatic control
power source			380V/3N/50Hz
Compressor	Type		5-6 asymmetric semi-hermetic twin screw compressors
	Startup type		Y-△
	Energy regulation		0-33-66-100%								0-25%-50%-75%-100%
	Qty		1.00
	Input power		KW		22.60	29.80		37.30			41.00		49.90	54.30	61.10		64.30	70.80	78.00
	Operation Current		A		39.30	51.90		64.90			71.30		86.80	94.50	106.30		111.90	123.20	135.70
Condenser	Type		High efficiency copper dry type shell-and-tube heat exchanger
	Water pipe connection		mm		DN65			DN80					DN100						DN125
	Cooling Water Flow		m³/h		21.50	29.00		38.70				41.90	50.50	55.90	65.60		68.80	75.30	82.80
	Water pressure		kpa		46.00	46.00		47.00				47.00	48.00	49.00	51.00		53.00	53.00	56.00
Evaporator	Type		Horizontal shell-and-tube/Coil type high efficiency copper heat exchanger
	Water pipe connection		mm		DN65			DN80					DN100						DN125
	Chilled water Flow		m³/h		17.20	23.20		31.00				33.60	40.60	44.80	52.60	55.20		60.40	66.40
	Water pressure		kpa		48.00	48.00		50.00				50.00	50.00	52.00	54.00	55.00		55.00	58.00
Refrigerant	Type				R22
	kilogram			kg	20.00	27.00		36.00				39.00	47.00	52.00	61.00	64.00		70.00	77.00
Safety protection				high and low pressure protection, overload protection, over temperature protection, phase sequence protection, etc.
Dimensions (LWH)		Length		mm	2100		2360		2450			2860	2860	2860	2860	2860		2860	3225
		Width		mm	700		700		900			900	900	900	900	900		900	900
		High		mm	1410		1520		1580			1600	1720	1745	1745	1770		1880	1960
Net Weight				kg	850		1050		1270			1340	1640	1680	1720	1750		2080	2300
Operating weight				kg	900		1150		1420			1540	1890	1940	1990	2050		2330	2550

Model		SLW-
		UNIT		420.1	500.1	530.1		570.1	610.1	635.1		740.1		815.1	865.1	965.1
Cooling capacity		Btu		1433040.00	1706000.00	1808360.00		1944840.00	2081320.00	2166620.00		2524880.00		2780780.00	2951380.00	3292580.00
		RT		119.32	142.05	150.57		161.93	173.30	180.40		210.23		231.53	245.74	274.15
		Kw		420.00	500.00	530.00		570.00	610.00	635.00		740.00		815.00	865.00	965.00
		×104Kcal/h		36.00	43.00	46.00		49.00	53.00	55.00		64.00		70.00	75.00	83.00
Control mode		PLC automatic control
power source		380V/3N/50Hz
Compressor	Type	5-6 asymmetric semi-hermetic twin screw compressors
	Startup type	Y-△
	Energy regulation	0-25%-50%-75%-100%
	Qty	1
	Input power	KW		84.10	99.70	105.20		114.00	122.80	126.70		147.50		162.00	172.00	193.40
	Operation Current	A		146.30	173.50	183.00		198.40	213.70	220.50		256.70		281.90	299.30	336.50
Condenser	Type	High efficiency copper dry type shell-and-tube heat exchanger
	Water pipe connection	mm		DN125				DN150
	Cooling Water Flow	m³/h		90.30	107.50	114.00		122.60	131.20	136.50		159.10		175.20	186.00	207.50
	Water pressure	kpa		56.00	60.00	65.00		65.00	67.00	67.00		68.00		68.00	68.00	68.00
Evaporator	Type	Horizontal shell-and-tube/Coil type high efficiency copper heat exchanger
	Water pipe connection	mm		DN125				DN150
	Chilled water Flow	m³/h		72.00	86.00	92.00		98.00	106.00	110.00		128.00		140.00	150.00	166.00
	Water pressure	kpa		60.00	62.00	67.00		68.00	68.00	69.00		69.00		70.00	70.00	70.00
Refrigerant	Type			R22
	kilogram		kg	84.00	100.00		105.00	113.00	121.00	126.00			147.00	162.00	172.00	192.00
Safety protection			high and low pressure protection, overload protection, over temperature protection, phase sequence protection, etc.

Dimensions (LWH)	Length		mm	3225	3225	3505		3605	3605		3720	3720		3930	3930	4230
	Width		mm	900	900	900		900	900		1100	1100		1100	1100	1100
	High		mm	1960	2010	2010		2080	2110		2110	2110		2110	2150	2150
Net Weight			kg	2570	2850	2900		3100	3450		3600	3850		4050	4230	5150
Operating weight			kg	3950	3000	3200		3450	3750		3900	4180		4450	4600	5650

Note:

1.Chilled water inlet temperature 12 ℃, chilled water outlet temperature 7 ℃; cooling water inlet temperature of 30 ℃ cooling water outlet temperature of 35 ℃; 2.Temperature conditions: Chilled water outlet temperature range 5 ℃ -15 ℃,cooling water inlet temperature ranger 19℃-33℃

3.Safe operating range : Chilled water inlet temperature 9℃-20℃; 4.The using compressor is closed turbine imported from Europe and the United States , superior performance, strong ability of anti-effusion; 5.Nominal operating conditions in the evaporator and condenser water side fouling factor of 0.018m² ℃ / kw, condenser water side fouling factor of 0.044 m² ℃ / kw; 6. Water side of the evaporator and condenser, designed to withstand a pressure of 1.0MPa; 7. The actual head of Host is that the pump head minus head losses within the host; 8.In addition to the specifications and requirements, We can provide non-standard products according to customer requirements.

Application:
Our water cooled screw chillers, water cooled screw type low temperature unit, flooded type water hillers, air-cooled screw chiller, air-cooled, water-cooled box type chillers products have been widely used in chemical industry, chemical fiber, plastics, oil, food, as long as the industry, printing, electroplating, electronics and other industries

Recommend products:
Usually cooling tower offers chilled water to water cooled chiller, here we recommend our dry cooler to instead of cooling tower.

Structure Type	Model	Cooling cpacity (kw)	Air volume (m3/h)	Fan Diameter(mm)	Air discharge direction	Key documents
Plate Type	D1-005-1x350~D1-649-16x630	5~649	2828~263503	350~630	Vertical	Brochure of D1
Plate Type	D1-005-1x350~D1-649-16x630	5~649	2828~263503	350~630	Horizontal	Brochure of D1
V type	D2-148-4X630~D2-921-20x630	148~921	76459~351663	630	Vertical	Brochure of D2
Plate Type	D3-042-1X800~D3-607-12X800	42~607	21454~227449	800	Vertical	Brochure of D3
V type	D4-176-4X800~D4-792-16X800	176~792	21454~227449	800	Vertical	Brochure of D4
