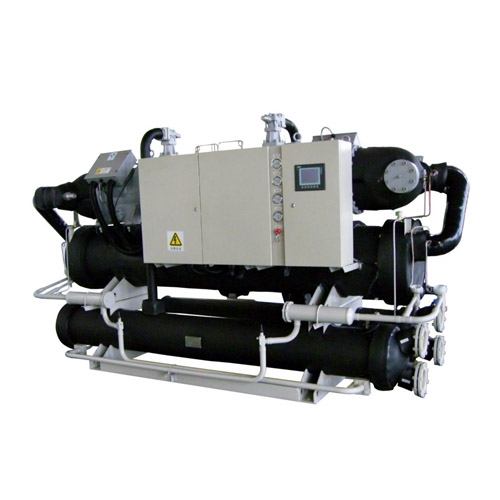

Water Cooled Low Temperature Chiller -30 Degree

In case you do not find the type or model in the website We can customized according to your request.
Contact Now

TEL:0086-21-35324169
FAX:0086-21-35324166
Email:sales@shenglintec.com

Features
Technical Data
Application
Certification
Part List

Features
1. Compressor: adopt international brand semi closed 5:6 non symmetrical double screw type air cooled special type compressor.
2. Heat exchanger: evaporator use high efficient shell and tube heat exchanger, condenser use high efficiency copper pipe+hydrophilic aluminum fin; with high pressure, high heat transfer efficiency, maintenance free, long service life, etc.;
3. Control system: using SIEMENS control system, advanced PLC control technology, can accept the programming, perfect communication function;
4. The electrical system: SIEMENS, Schneider and other national brands of electrical components, waterproof type control cabinet;
5. Man-machine interface: Chinese and English man-machine interface, touch type liquid crystal display operation, simple procedures, one key to start, automatic operation;
6. Chiller maintenance: chiller adopts integral design, compact structure, simple, strong corrosion resistance, with waterproof control cabinet, to ensure that the unit can be placed outside the long-term is not easy to fade, corrosion.
7. The choice of environmental protection type R407C or R134a refrigerant.

Water chiller parameters (output temp -30℃)

Model			UNIT	SLPW-
				6.2h	8.2h		10.2h	12.2h
Cooling capacity			Btu	12624.40	15695.20		22178.00	25931.20
			RT	1.05	1.31		1.85	2.16
			Kw	3.70	4.60		6.50	7.60
			×10³Kcal/h	3.20	4.00		5.60	6.50
Total Power			KW	4.50	4.90		6.80	8.60
Total Current			A	17.00	23.30		28.70	26.70
Compressor	Qty		set	2	2		2	2
	Input power		KW	3.70	4.10		6.00	7.50
	Operation Current		A	6.60	7.30		10.70	13.40
Condenser	Type		High efficiency copper dry type shell-and-tube heat exchanger
	Cooling Water Flow		L/min	33.00	39.00		55.00		67.00
	Water Pipe Connection		mm	25	32		32		32
Evaporator	Type		Horizontal shell-and-tube/Coil type high efficiency copper heat exchanger
	Chilled water Flow		L/min	13.30	16.60		23.20		27.00
	Water pipe connection		mm	25	32		32		32
Chilled Water Pump	Type		High efficiency, low noise
	Input Power		Kw	0.55	0.75	0.75			1.10
	Head		m	17	25	24			24
Refrigerant	Type		R22
Water tank Indicating Volume			Liter	190.00	210.00	250.00			250.00
Safety protection			high and low pressure protection, overload protection, over temperature protection, phase sequence protection, etc.
Dimensions (LWH)		Length	mm	1350	1350	1350			1350
		Width	mm	850	850	850			850
		High	mm	1200	1200	1200			1200
Total Weight			KG	260	290	330			380

Model			UNIT	SLPW-
Model			UNIT	3.1h	4.1h	5.1h	6.1h
Cooling capacity			Btu	6482.80	7847.60	11259.60	12965.60
			RT	0.54	0.65	0.94	1.08
			Kw	1.90	2.30	3.30	3.80
			×10³Kcal/h	1.60	2.00	2.80	3.30
Total Power			KW	2.20	2.40	3.60	4.30
Total Current			A	4.70	8.20	12.10	13.40
Compressor	Qty		set	1	1	1	1
	Input power		kw	1.90	2.10	3.00	3.80
	Operation Current		A	3.30	3.60	5.30	6.70
Condenser	Type		High efficiency copper dry type shell-and-tube heat exchanger
	Cooling Water Flow		L/min	16.00	19.00	28.00	33.00
	Water Pipe Connection		mm	20	20	20	25
Evaporator	Type		Horizontal shell-and-tube/Coil type high efficiency copper heat exchanger
	Chilled water Flow		L/min	6.60	8.30	11.60	13.70
	Water pipe connection		mm	20	20	20	25
Chilled Water Pump	Type		High efficiency, low noise
	Input Power		Kw	0.37	0.37	0.37	0.55
	Head		m	15	20	19	19
Refrigerant	Type		R22
Water tank Indicating Volume			Liter	80.00	90.00	190.00	190.00
Safety protection			high and low pressure protection, overload protection, over temperature protection, phase sequence protection, etc.
Dimensions (LWH)		Length	mm	1200	1200	1200	1350
		Width	mm	850	850	850	850
		High	mm	1200	1200	1200	1200
Total Weight			KG	150	180	210	250

Note:

1, the table refrigeration conditions: chilled glycol water inlet temperature -25 ℃, water outlet temperature -30 ℃, the cooling water temperature 30 ℃, water temperature 35 ℃;

2, this series of units used in low temperature conditions, to use 55% of the glycol for antifreeze coolants;

3, the series unit uses imported from Europe hermetic compressors, superior performance, strong anti-strike capability liquid;

4, standard power supply: 380V / 3N-50HZ, voltage fluctuation allowed ± 5%, frequency fluctuation ± 2%;

5, host the actual head of the pump head minus head losses within the host. (1mH2O = 9.8KPa)

6, In addition to the specifications and requirements, we can provide non-standard products according to customer requirements.

Application:
Our water cooled screw chillers, water cooled screw type low temperature unit, flooded type water hillers, air-cooled screw chiller, air-cooled, water-cooled box type chillers products have been widely used in chemical industry, chemical fiber, plastics, oil, food, as long as the industry, printing, electroplating, electronics and other industries

Recommend products:
Usually cooling tower offers chilled water to water cooled chiller, here we recommend our dry cooler to instead of cooling tower.

Structure Type	Model	Cooling cpacity (kw)	Air volume (m3/h)	Fan Diameter(mm)	Air discharge direction	Key documents
Plate Type	D1-005-1x350~D1-649-16x630	5~649	2828~263503	350~630	Vertical	Brochure of D1
Plate Type	D1-005-1x350~D1-649-16x630	5~649	2828~263503	350~630	Horizontal	Brochure of D1
V type	D2-148-4X630~D2-921-20x630	148~921	76459~351663	630	Vertical	Brochure of D2
Plate Type	D3-042-1X800~D3-607-12X800	42~607	21454~227449	800	Vertical	Brochure of D3
V type	D4-176-4X800~D4-792-16X800	176~792	21454~227449	800	Vertical	Brochure of D4
