Ac Condenser

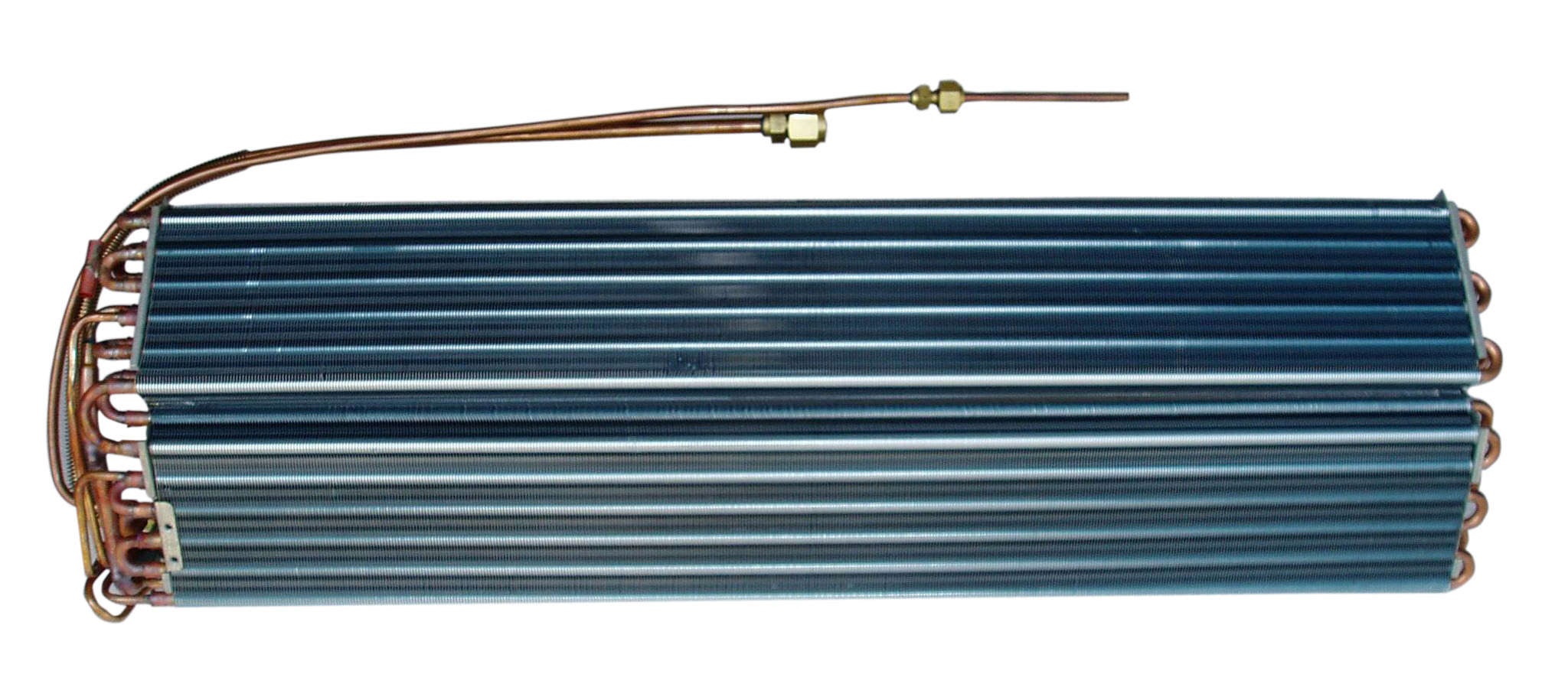

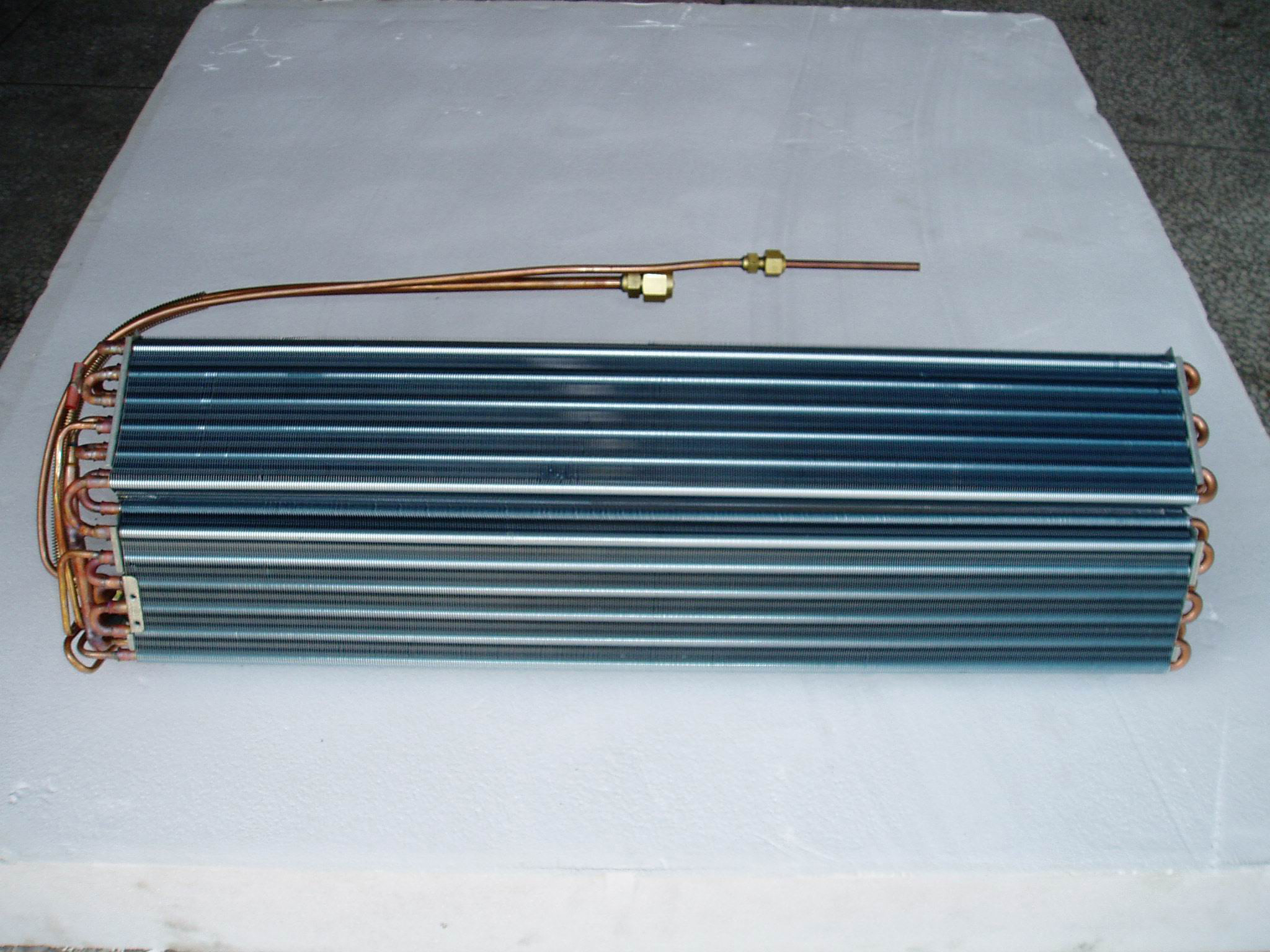

● AC  Condenser
● Copper tube:7mm,7.94mm,9mm,9.52mmetc
● Fin: corrugated, flat , louver fin
● Certificate:ROHS, ISO.


Feature:
1. fin type: louver fin or flat fin or corrugated fin
2. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
3. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
4. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
5. different alternative condensing fans available: shaded pole or outer rotor fan motor.
6.did gas examination under 3.0Mpa air pressure to ensure the tightness.
7.widely used in refrigeration industry, cold room and other cooling system.
8. we can supply products as per customized samples or drawing.

Procedure:

Mold of Copper tube＆aluminum fin/copper fin

Fin Pattern	Copper Tube O.D.(mm)	Row Space(mm)	Hole Space(mm)	Fin Thickness(mm)	Fin Space(mm)
					Flat fin	Sine wave with blade fin	Smooth sine wave fin	Window fin	Sesamoid fin
A	7	12.7	21	0.105	/	/	1.3	1.3	/
B	7	13.2	17.6	0.105	/	/	1.3	1.3	/
C	7	12.7	20.4	0.105	/	/	1.3~1.8	1.3~1.8	/
D	7	12.7	19.05	0.105	/	/	1.3~1.8	1.3~1.8	/
E	7.94	15.88	25.4	0.105	1.8~3.0	1.8~3.0	1.8~3.0	1.8~3.0	/
E	7.94	19.05	22	0.105~0.13	1.4~3.0	1.4~3.0	1.4~3.0	1.4~3.0	/
F	9.52	22	25.4	0.105~0.15	1.6~3.2	1.6~3.2	1.6~3.2	1.6~3.2	/
G	9.52	22	25.4	0.18~0.4	3.5~6.35	/	/	/	/
H	9.52	21.65	25	0.105~0.18	1.6~3.2	1.6~3.2	1.6~3.2	1.6~3.2	/
I	9.52	21.65	25	0.15~0.24	3.2~6.35	3.2~6.35	3.2~6.35	/	/
J	12.75	27.5	31.75	0.115~0.15	1.5~3.5	1.5~3.5	1.5~3.5	1.5~3.5	1.6~3.2
K	15.88	33	38.1	0.115~0.15	1.5~4.0	1.5~4.0	1.5~4.0	/	/
L	15.88	34.64	40	0.115~0.15	/	2.6~3.5	2.6~3.5	/	/

Mold of Stainless steel tube＆aluminum fin/copper fin

Fin Pattern	Stainless steel Tube O.D.(mm)	Row Space(mm)	Hole Space(mm)	Fin Thickness(mm)	Fin Space(mm)
					Flat fin	Sine wave with blade fin	Smooth sine wave fin	Window fin	Sesamoid fin
A	9.52	22	25.4	0.105~0.15	1.6~3.2	1.6~3.2	1.6~3.2	1.6~3.2	/
B	9.52	16.5	19.05	0.105~0.115	1.4~2.5	1.4~2.5	1.4~2.5	/	/
C	12.75	27.5	31.75	0.115~0.15	1.5~3.5	1.5~3.5	1.5~3.5	1.5~3.5	1.6~3.2
D	15.88	33	38.1	0.115~0.15	1.5~4.0	1.5~4.0	1.5~4.0	/	/

1.Used for combined air handling unit, fan coil etc air conditioning devices

2.Used for heat transfer in cold storage and all kinds of low temperature systems

3.Used of energy recovery and low temperature system devices

4.Used for dry operation condition, fresh air dehumidification etc systems

5.Used for industry and commerce air conditioning system

6.Used for vehicle and vessel etc transportation devices

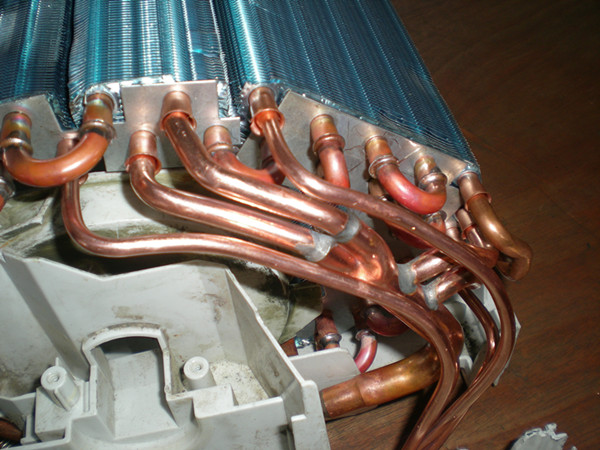

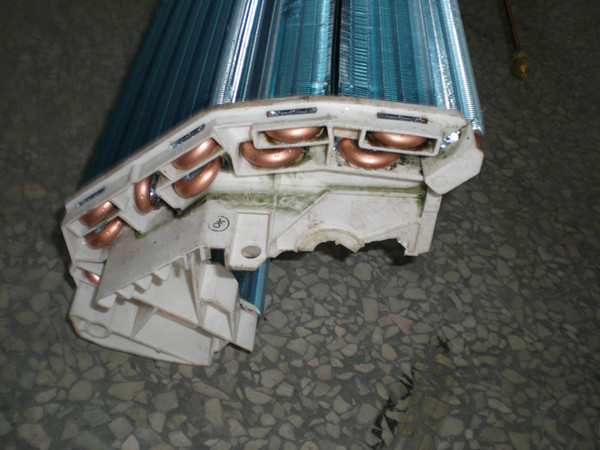

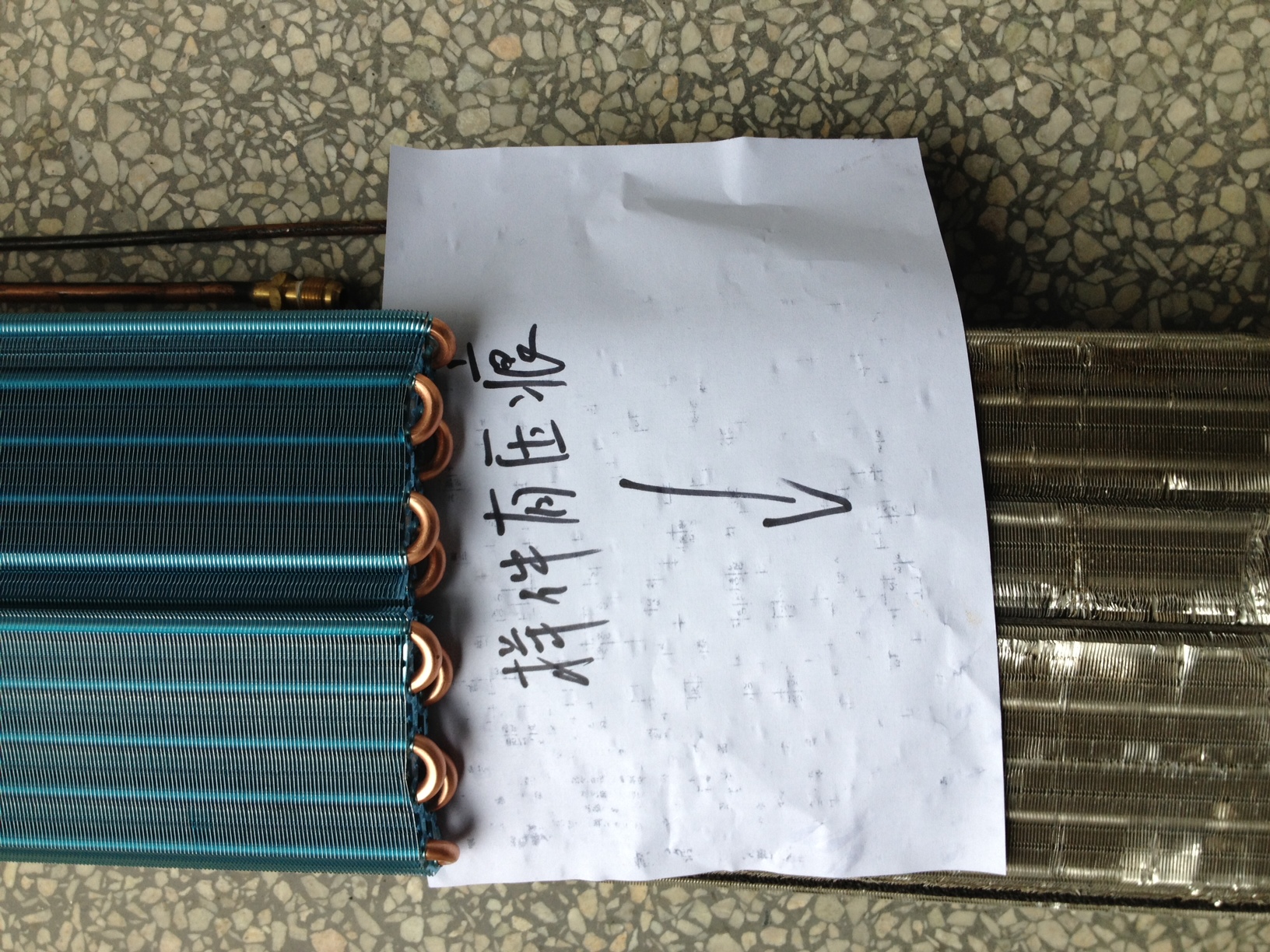

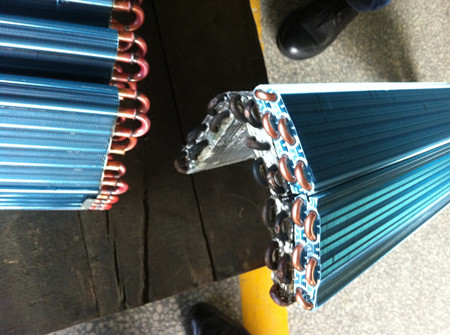

Pictures for Ac Condenser



We can manufacture the goods according to our client's samples.
