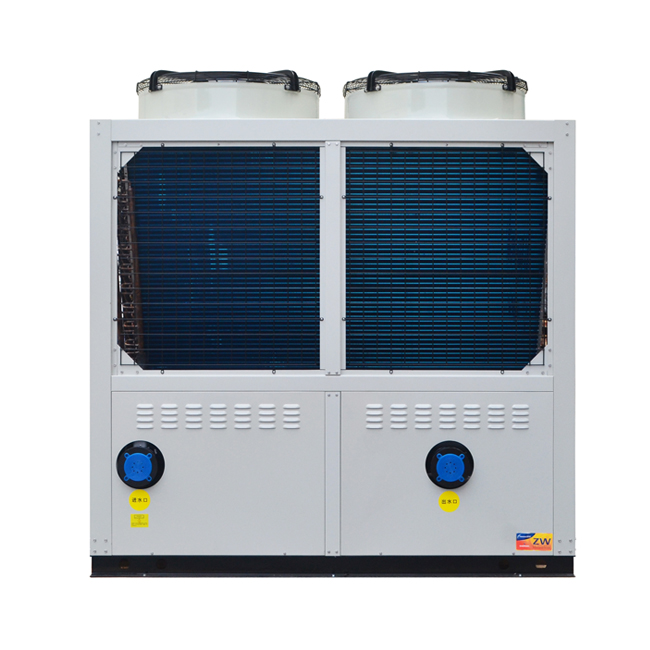

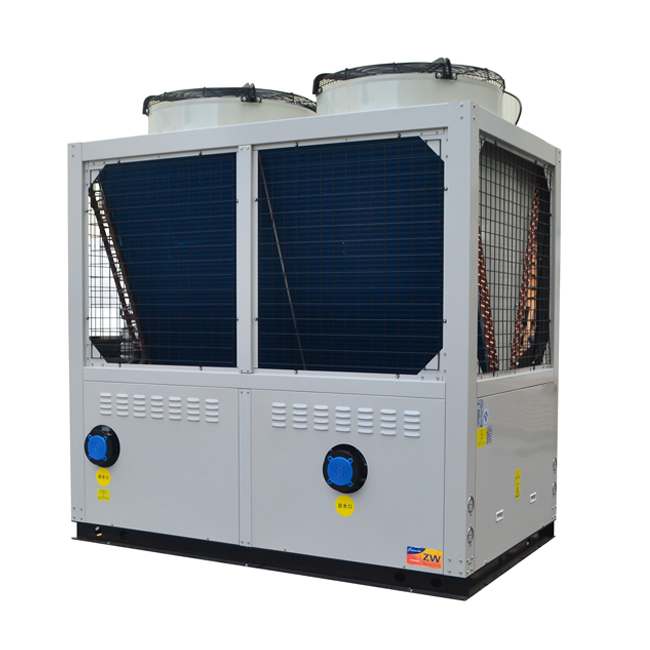

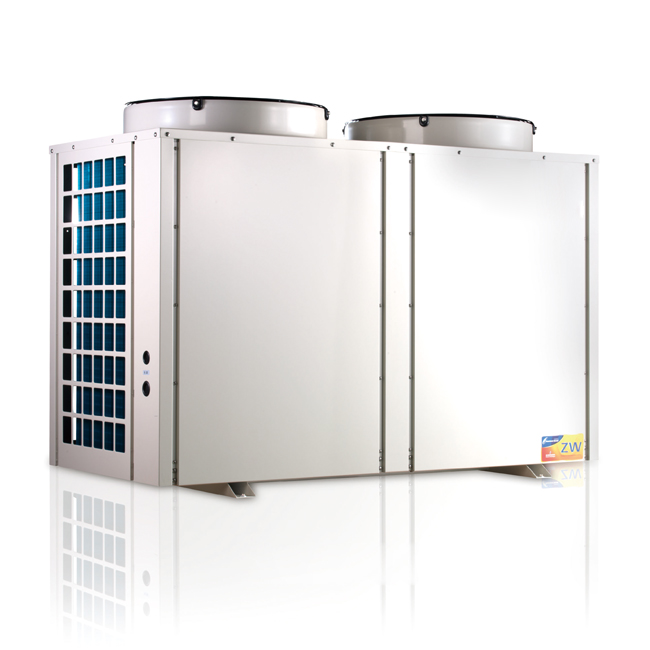

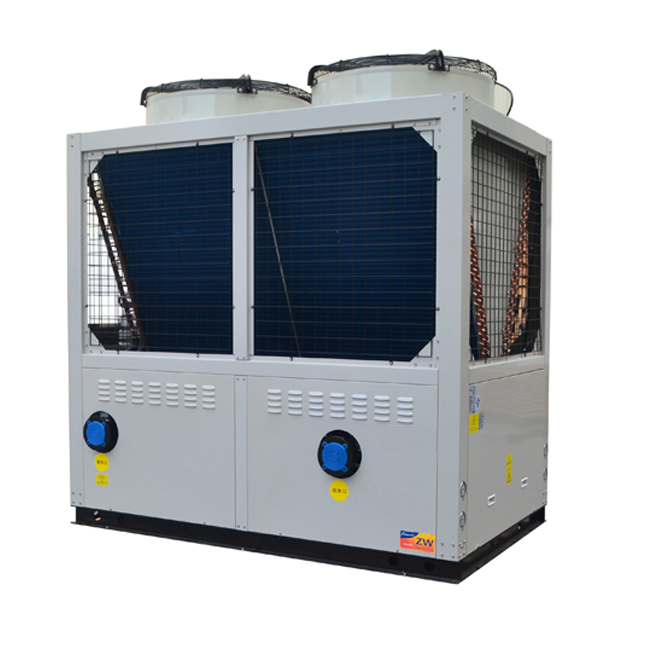

This series heat pump can work in very low climate area down to -30℃. The heat pump is equipped with EVI compressor and high efficiency in low temperature conditions, its heating performance is higher by 50%-80% than normal heat pump. It is widely used in cold area and even work well at -30℃, can be matched with fan coil, floor radiator heating, it is suitable for villa, hotel, office etc.
Features:
Heating capacity range: 9kW, 14kW, 17kW, 32kW, 45kW, 65kW, 75kW, 90kW, 150kW.
Copeland EVI compressor and Schneider electrical components.
Working ambient temperature down to -30℃
Automatically defrosting.
Intelligent controller and adjustment by microprocessor.
High efficiency tube in shell heat exchanger.
Match with floor heating, fan coils and central AC function.
Optional:
Galvanized metal cabinet or stainless steel cabinet.
Refrigerant: R22, R407C and R410A
Only heating function is optional.
|
EVI heating & cooling heat pump |
|||||||||
|
MODEL |
DKFXFC-032UII |
KFXFC-045UII |
KFXFC-065UII |
KFXFC-075UII |
KFXFC-090UMII |
KFXFC-150UII |
KFXFC-180UMII |
||
|
|
|
|
|
|
|
|
|
|
|
|
Ambient temp. range |
℃ |
-35~+43 |
|||||||
|
Power supply |
/ |
380V 3N~50Hz |
|||||||
|
Electric shock proof grade |
/ |
Class I |
|||||||
|
Protection grade |
/ |
IPX4 |
|||||||
|
Cooling capacity/COP |
KW/- |
27.0/2.8 |
35/3.0 |
53.0/3.0 |
65.0/3.1 |
70.0/2.8 |
130.0/2.8 |
140.0/2.8 |
|
|
Low-temperature heating |
KW/- |
20.0/2.3 |
26.0/2.3 |
37.5/2.5 |
41.0/2.5 |
55.0/2.4 |
82.0/2.5 |
110.0/2.4 |
|
|
Normal temperature heating（A7W45)/COP |
KW/- |
32.0/3.6 |
43.5/3.6 |
63.0/3.9 |
73.0/3.9 |
90.0/3.6 |
146.0/3.9 |
180.0/3.6 |
|
|
Heating capacity |
A7W35а/COP |
KW/- |
33.0/4.3 |
45.0/4.3 |
65.0/4.5 |
75.0/4.5 |
92.0/4.3 |
150.0/4.5 |
185.0/4.3 |
|
A-7W45/COP |
KW/- |
23.5/2.6 |
30.5/2.6 |
41.0/2.6 |
45.0/2.6 |
62.0/2.6 |
90.0/2.6 |
122.0/2.6 |
|
|
A-15W45/COP |
KW/- |
19.5/2.2 |
25.0/2.2 |
34.0/2.2 |
38.0/2.2 |
50.0/2.2 |
76.0/2.2 |
100.0/2.2 |
|
|
A-20W45/COP |
KW/- |
16.5/2.0 |
21.0/2.0 |
30.2/2.0 |
33.0/2.0 |
43.0/2.0 |
66.0/2.0 |
86.0/2.0 |
|
|
Rated cooling input power |
KW |
9.6 |
11.7 |
17.7 |
21 |
25 |
46.4 |
50 |
|
|
Low temperature heating input power |
KW |
8.7 |
11.3 |
15 |
16.4 |
22.9 |
32.8 |
45.8 |
|
|
Normal temperature heating input power |
KW |
/ |
/ |
16.2 |
18.7 |
25 |
37.4 |
50 |
|
|
Max working current |
A |
25 |
32 |
47 |
55 |
65 |
110 |
130 |
|
|
Compressor |
Type |
/ |
Scroll |
||||||
|
Quantity |
PCS |
2 |
4 |
||||||
|
Fan motor |
Quantity |
PCS |
2 |
4 |
|||||
|
Max. water temperature |
℃ |
60 |
|||||||
|
Water yield |
L/h |
4600 |
6000 |
9100 |
11200 |
12000 |
22400 |
24100 |
|
|
Refrigerant type/Weight |
-/kg |
R410a/4.0×2 |
R410a/8.0×2 |
R410a/12×2 |
R410a/15×2 |
R410a/15×2 |
R410a/15×4 |
R410a/15×4 |
|
|
Dimension (W×D×H) |
mm |
1530×750×1370 |
1500×850×1750 |
2100×1100×2000 |
2100×2060×2250 |
||||
|
Packing dimension (W×D×H) |
mm |
1650×850×1470 |
1750×950×1900 |
2260×1360×2270 |
2230×2250×2400 |
||||
|
Noise |
dB(A) |
65 |
65 |
68 |
68 |
68 |
69 |
69 |
|
|
Net weight |
kg |
350 |
380 |
850 |
950 |
950 |
1900 |
1900 |
|
|
Gross weight |
kg |
380 |
420 |
900 |
1000 |
1000 |
2000 |
2000 |
|
|
Circulating pipe diameter |
inch |
G1.5"external thread |
G1.5"external thread |
DN50 flange |
DN50 flange |
DN65 flange |
DN65 external thread |
DN65 external thread |
|
|
Remarks: |
|||||||||
