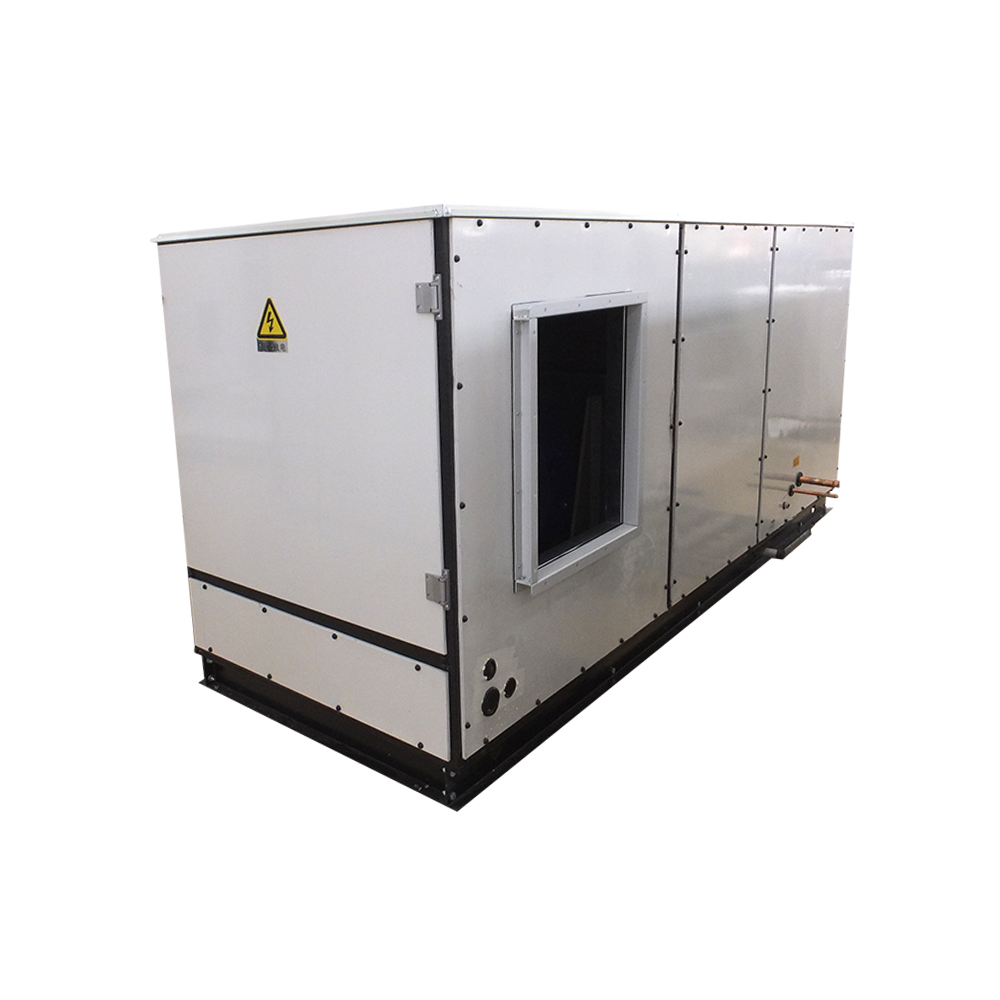

Chilled Water AHU
Air Hander
In case you do not find the type or model in the website
We can customized according to your request.
Contact Now
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
Feature:
1, Complying with above China Standard, which is from ARI standard. ISO9001 and ISO14001 qualified.
2, Choose best materials, main components are from China top brand or imported.
3, The modular casing design, easy interchanging each other. easy install,easy transport,easy maintaince.
4, Unique no-cold-bridge design, improve the insulation and air tightness, total air leak rate ≤2.5%;
5, With dynamic balanced double inlet Centrifugal fan, with good air dynamic features, and accurate working, high efficiency, low vibration, low noise etc.
6, High efficient heat exchanger coil, ensure to provide the enough cooling capacity to the unit. And also high efficient breakwater panel is provided if required, water flow in coil ≤3×10-4kg/kg
7, Strong structure, good looking and permanent color.
8, Reasonable inside structure, with the suitable space for maintenance and cleaning.
9, Casing sheet: Provide double-skin construction constructing Sandwich type comprising 0.5mm thick galvanized internal and external skins and with 30mm thick polystyrene insulation of minimum 45kg/m3 density. Good airproof material is use between the casing and the frame to reduce the rate of the air leak.

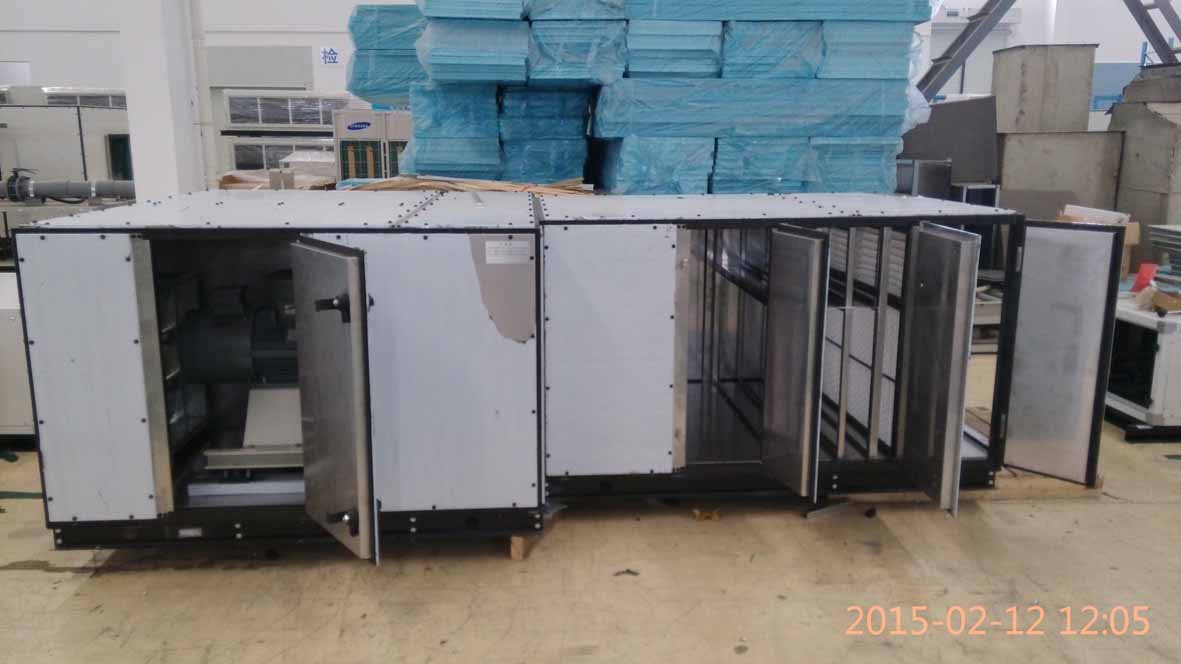

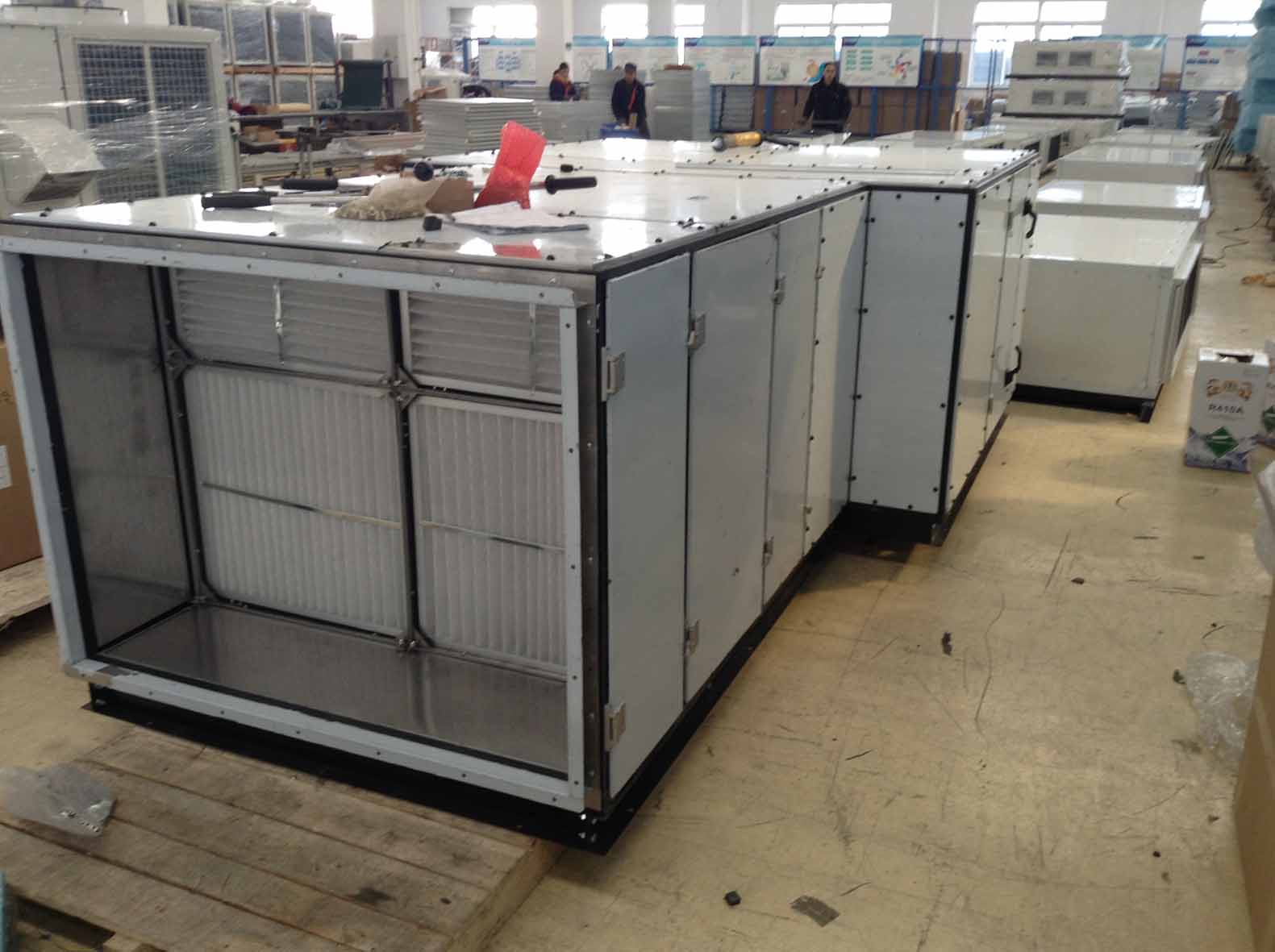

The combined air handling untis are modular designed ,each modular can be used independently and can also work together and company with fan coil units to add refresh air. Not only reduce operation costs and energy saving, but also optimize air quality and create a congnitive indoor space to meet the human health requirements.
Technical Data
Chilled Water Air Handing Unit Spec. No. 1 | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Model GT-ZKW- | 20 | 40 | 60 | 80 | 100 | 150 | 200 | 250 | 300 | ||
Air volume(m³/h) | 2000 | 4000 | 6000 | 8000 | 10000 | 15000 | 20000 | 25000 | 30000 | ||
Outlet air pressure(pa) | 300 | 300 | 400 | 500 | 500 | 600 | 750 | 750 | 750 | ||
Supply fan capacity(kw) | 1.1 | 1.5 | 2.2 | 4 | 5.5 | 11 | 15 | 15 | 18.5 | ||
Cooling | 4 Rows | Return air(kw) | 12.2 | 23.9 | 35.9 | 48 | 60 | 90 | 120 | 150 | 179 |
water flow(m³/h) | 2.2 | 4.2 | 6.1 | 8.2 | 10.5 | 15.3 | 20.4 | 23.8 | 28.2 | ||
all fresh air(kw) | 22 | 43.8 | 62 | 90 | 112 | 156 | 210 | 265 | 310 | ||
water flow(m³/h) | 3.8 | 7.7 | 11 | 15.5 | 19.2 | 27.3 | 36.5 | 45.8 | 55 | ||
pipe diameter (DN) | 25 | 32 | 40 | 40 | 40 | 50 | 65 | 65 | 80 | ||
6 Rows | Return air(kw) | 17 | 30.1 | 45.2 | 60 | 75 | 113 | 151 | 188 | 210 | |
water flow(m³/h) | 2.8 | 5.3 | 7.7 | 10.5 | 13.6 | 19.2 | 25.5 | 30.2 | 36 | ||
all fresh air(kw) | 30.5 | 58 | 88 | 118 | 150 | 200 | 288 | 355 | 420 | ||
water flow(m³/h) | 5.1 | 10 | 15.2 | 20.2 | 26.2 | 35.5 | 49 | 70 | 72.5 | ||
pipe diameter (DN) | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | 80 | ||
8 Rows | Return air(kw) | 18.3 | 35.2 | 53 | 70 | 90 | 132 | 176 | 220 | 264 | |
water flow(m³/h) | 3.2 | 6.2 | 8.9 | 12.2 | 16.2 | 22.2 | 30.2 | 37.2 | 44.2 | ||
all fresh air(kw) | 34.8 | 70 | 101 | 138 | 178 | 245 | 332 | 410 | 500 | ||
water flow(m³/h) | 5.8 | 12 | 17.5 | 23.5 | 30.8 | 42.5 | 57.1 | 71 | 85 | ||
pipe diameter (DN) | 32 | 32 | 40 | 40 | 50 | 65 | 65 | 80 | 80 | ||
Heating | 2 Rows | Return air(kw) | 20 | 42 | 60 | 84 | 108 | 150 | 200 | 250 | 300 |
water flow(m³/h) | 0.8 | 1.9 | 2.6 | 3.7 | 4.6 | 6.5 | 8.7 | 11 | 13 | ||
all fresh air(kw) | 18 | 38 | 54 | 70 | 100 | 125 | 180 | 210 | 280 | ||
water flow(m³/h) | 0.8 | 1.7 | 2.4 | 3.2 | 4.5 | 5.5 | 7.8 | 10 | 12 | ||
pipe diameter (DN) | 25 | 32 | 40 | 40 | 40 | 40 | 50 | 50 | 65 | ||
4 Rows | Return air(kw) | 28 | 56 | 80 | 110 | 140 | 200 | 250 | 320 | 380 | |
water flow(m³/h) | 1.2 | 2.4 | 3.5 | 4.8 | 6.3 | 9 | 11 | 13.5 | 18.2 | ||
all fresh air(kw) | 32 | 62 | 90 | 125 | 150 | 220 | 300 | 380 | 450 | ||
water flow(m³/h) | 1.5 | 2.7 | 3.8 | 5.4 | 6.8 | 9.5 | 13.5 | 16.2 | 19.5 | ||
pipe diameter (DN) | 32 | 32 | 40 | 40 | 40 | 50 | 50 | 65 | 65 | ||
Function section outside dimension |
Mixing section | Length(mm) | 500 | 500 | 500 | 550 | 600 | 800 | 800 | 800 | 800 |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Pre-filter section | Length(mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Medium efficiency filter section | Length(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Cooling coil section | Length(mm) | 600 | 600 | 700 | 700 | 700 | 800 | 800 | 1000 | 1000 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Heating section | Length(mm) | 300 | 300 | 300 | 400 | 400 | 400 | 400 | 400 | 400 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Humidifying section | Length(mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Fan section | Length(mm) | 500 | 500 | 900 | 400 | 1100 | 1400 | 1600 | 1700 | 1850 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Current balance section | Length(mm) | 400 | 400 | 500 | 900 | 500 | 600 | 600 | 600 | 700 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Sound deadening section | Length(mm) | 800 | 800 | 800 | 500 | 800 | 1000 | 1000 | 1000 | 100 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Air outlet section | Length(mm) | 400 | 400 | 400 | 800 | 500 | 600 | 600 | 800 | 800 | |
Width(mm) | 950 | 950 | 1080 | 1250 | 1600 | 1600 | 2000 | 2200 | 2200 | ||
Height(mm) | 980 | 980 | 1080 | 1250 | 1320 | 1470 | 1680 | 1880 | 2200 | ||
Chilled Water Air Handing Unit Spec. No. 2 | |||||||||||
Model GT-ZKW- | 350 | 400 | 450 | 500 | 550 | 600 | 700 | 800 | 1000 | ||
Air volume(m³/h) | 35000 | 40000 | 45000 | 50000 | 55000 | 60000 | 70000 | 80000 | 100000 | ||
Outlet air pressure(pa) | 600 | 600 | 600 | 600 | 800 | 800 | 800 | 800 | 900 | ||
Supply fan capacity(kw) | 18.5 | 22 | 220 | 30 | 30 | 37 | 37 | 45 | 55 | ||
Cooling | 4 Rows | Return air(kw) | 180 | 212 | 240 | 270 | 300 | 320 | 380 | 440 | 540 |
water flow(m³/h) | 32.2 | 38.2 | 42.5 | 48.2 | 53.6 | 54.8 | 66 | 76.3 | 92.8 | ||
all fresh air(kw) | 360 | 410 | 456 | 510 | 570 | 600 | 720 | 840 | 1020 | ||
water flow(m³/h) | 62.5 | 72.2 | 78.4 | 87.6 | 98 | 103.1 | 123.7 | 144.3 | 175.3 | ||
pipe diameter (DN) | 40*2 | 40*2 | 40*2 | 50*2 | 50*2 | 50*2 | 65*2 | 65*2 | 65*2 | ||
6 Rows | Return air(kw) | 240 | 280 | 310 | 350 | 380 | 400 | 490 | 560 | 680 | |
water flow(m³/h) | 42.5 | 48.1 | 52.3 | 60 | 66 | 68.8 | 84.2 | 96.6 | 116.8 | ||
all fresh air(kw) | 456 | 532 | 590 | 665 | 720 | 760 | 930 | 1060 | 1290 | ||
water flow(m³/h) | 78.4 | 91.4 | 101 | 114.3 | 123.7 | 130 | 160 | 182 | 221.6 | ||
pipe diameter (DN) | 40*2 | 50*2 | 50*2 | 65*2 | 65*2 | 65*2 | 65*2 | 80*2 | 100*2 | ||
8 Rows | Return air(kw) | 290 | 330 | 380 | 420 | 470 | 480 | 590 | 680 | 820 | |
water flow(m³/h) | 49.8 | 56.7 | 65.3 | 72.7 | 80.8 | 82.5 | 101.4 | 116.8 | 141 | ||
all fresh air(kw) | 550 | 630 | 720 | 800 | 890 | 910 | 1120 | 1290 | 1560 | ||
water flow(m³/h) | 94.5 | 108.3 | 123.7 | 137.5 | 153 | 156.4 | 192.5 | 221.7 | 268 | ||
pipe diameter (DN) | 50*2 | 65*2 | 65*2 | 65*2 | 65*2 | 65*2 | 80*2 | 100*2 | 100*2 | ||
Heating | 2 Rows | Return air(kw) | 350 | 400 | 440 | 490 | 540 | 560 | 680 | 780 | 950 |
water flow(m³/h) | 15 | 17.2 | 18.8 | 21.5 | 24 | 25 | 30 | 34.2 | 42 | ||
all fresh air(kw) | 320 | 360 | 396 | 440 | 486 | 500 | 612 | 700 | 850 | ||
water flow(m³/h) | 13.6 | 15.8 | 17.4 | 19.3 | 21.3 | 30 | 26.7 | 30.7 | 37.3 | ||
pipe diameter (DN) | 65 | 65 | 655 | 80 | 80 | 80 | 80 | 100 | 100 | ||
4 Rows | Return air(kw) | 450 | 520 | 90 | 660 | 730 | 760 | 920 | 1060 | 1280 | |
water flow(m³/h) | 19.5 | 22.5 | 25.8 | 29 | 32.2 | 32.5 | 40.2 | 45.8 | 56 | ||
all fresh air(kw) | 405 | 470 | 530 | 594 | 660 | 680 | 830 | 950 | 1150 | ||
water flow(m³/h) | 18.2 | 20.5 | 22.8 | 26.9 | 29 | 29.6 | 34.8 | 41.5 | 47.6 | ||
pipe diameter (DN) | 80 | 80 | 80 | 80 | 100 | 100 | 100 | 125 | 125 | ||
Function section outside dimension |
Mixing section | Length(mm) | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Pre-filter section | Length(mm) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Medium efficiency filter section | Length(mm) | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Cooling coil section | Length(mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | 1200 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Heating section | Length(mm) | 500 | 500 | 500 | 500 | 600 | 600 | 600 | 600 | 600 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Humidifying section | Length(mm) | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | 400 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Fan section | Length(mm) | 2000 | 2000 | 2000 | 2000 | 2200 | 2200 | 2300 | 2700 | 2700 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Current balance section | Length(mm) | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 1000 | 1000 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Sound deadening section | Length(mm) | 1200 | 1200 | 1200 | 1200 | 1200 | 1400 | 1400 | 1400 | 1400 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 | 3200 | ||
Air outlet section | Length(mm) | 1000 | 1000 | 1000 | 1200 | 1200 | 1500 | 1500 | 1500 | 1500 | |
Width(mm) | 2300 | 2300 | 2300 | 2500 | 2700 | 2700 | 2800 | 3200 | 3500 | ||
Height(mm) | 2580 | 2870 | 2870 | 2870 | 3200 | 3200 | 3200 | 3200 |
3200 |
Application:
The units are widely used in the air system of many inductries like mechanical ,electronic, textile,medical,chemical,energy and foo inductries ,etc. the units are also ideal solution for restaurants, office buildings,hospitals,theaters,supermarkets and palaestra.
