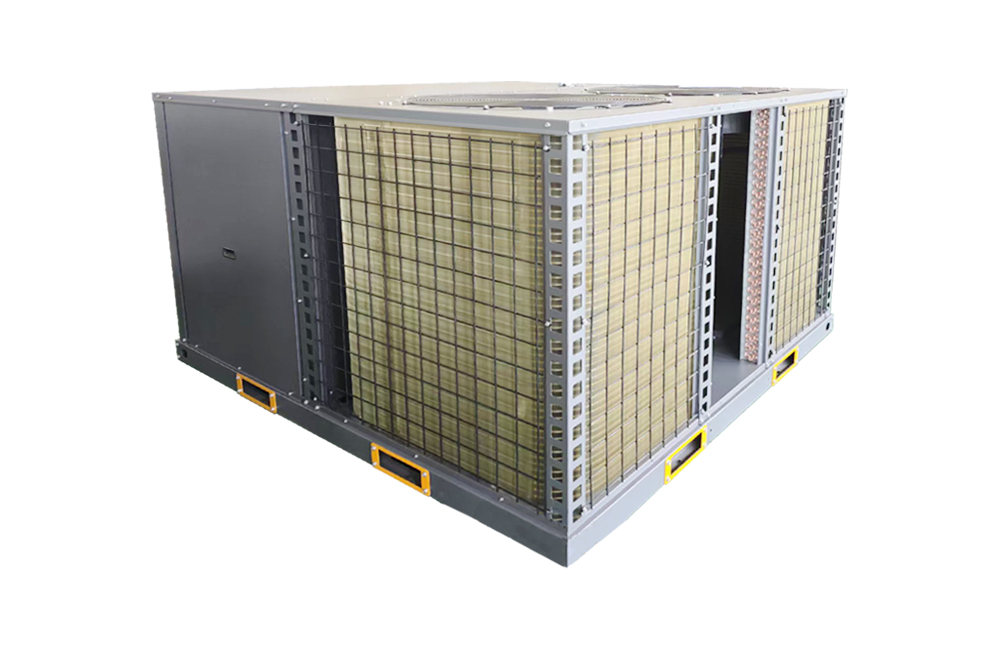

Package air conditioning unit/ Package unit
Total 1 Page 15 records
Package units are designed as an all-in-one solution and additionally useful for consolidating space. Packaged systems are popular in regions where construction favors a single cabinet system rather than a split system, which has both an outdoor and an indoor unit. Typically, packaged systems are installed outdoors at ground level. In certain instances they may also be installed on the roof for horizontal or down-flow designs. Unlike split systems, in a packaged system, most components are in one cabinet. Whether you’re looking for cooling only, heat pump type or heat recovery type, we have the right choice for you.

About the heating methods of rooftop air conditioner, we can do heat pump heating, electric heating, steam heating and  hot water heating. About humidification methods, we can do electrode humidification, dry steam humidification, electrothermal humidification, high pressure micro mist wetting and wet membrane humidification. Also we can increase the average flow section, the medium effect filter section, the noise elimination section and the air outlet section. Also we can offer various modes of air supply and return unit.

Customized designed, we can choose T3 working condition comprossor for high ambient temperature up to 50~55℃. We have agent is Egypt and Turkey. We use world  famous compressor and electrical components brand.

In case you do not find the type or model in the website, we can customized according to your request. Please contact us: Tel: 0086-21-35324169, Fax:0086-21-35324166, Email:sales@shenglintec.com

Type Model Photo COP Cooling capacity Key documents
Package unit WRF12ZA~WRF35ZA 2.7~3.3 12 Kw~35.6 Kw 3.5 Ton~10 Ton 40000 BTU~120000 BTU Brochure of 12~35kw
Package unit RF45ZA~WRF105ZA 44.5 Kw~105 Kw 13 Ton~30 Ton 150000 BTU~360000 BTU Brochure of 45~105kw
Package unit WRF120ZA~WRF300ZA 120 Kw~298 Kw 34 Ton~85 Ton 400000 BTU~1000000 BTU Brochure of 120~300kw



Reference

Country: Turkey
Application:distributor
Type: heat pump type
Cooling capacity: 108.9KW;
Heating capacity: 113KW;
380V-3Ph-50hz
R410a
ESP: 350 Pa; 19940 m3/h
25% fresh air;

Country: Nigeria
Application: Pharmaceutical Factory
Type: heat pump type
Cooling capacity: 36.2kW
Heating capacity: 82kW
Refrigerant: R407C
Compressor: Sanyo

Country: Jordan
Application: Textile Factory
Type: heat pipe heat recovery type
Cooling capacity: 368kW
Heating capacity: 359kW
Refrigerant: R410A
Compressor: Copeland
With heat recovery coil

Country: USA
Application: Residential
Type: heat pump type
Cooling capacity: 5 Ton
Heating capacity:
Refrigerant: R410A
Compressor:
COP: 3.0
Power supply: 230V/3PH/60Hz









Country:UAE
Application:offshore Drilling Platform
Cooling capacity: 80kw
Supply air volume: 4000×2 m3/h
Condensing fan: 12000m3/h
Refrigerant: R407C
Power supply:430V-3Ph-60Hz
Evaporator & condenser type: copper tube epoxy aluminum fin

Country:Australia
Application:hall
Cooling capacity: 128kw
Heating capacity: 135kw
Capacity regulator: 0,25,50,75,100
Power supply: 415V/3PH/50hz
Refrigerant:R410A

Country:China
Application: Amusement park
Cooling capacity: 180kw
Heating capacity: 192.5kw
Supply air volume: 32000m3/h
ESP: 550pa
Power supply: 380V/3PH/50hz
Refrigerant:R22

Country: Philippines
Application: Factory
Type: Fresh air type
Cooling capacity:21.9kw
Heating capacity:25kw
Supply air volume: 3000m3/h
Electric heating: 6kw
Power supply:220v/3PH/60hz
10% fresh air
Refrigerant:R410A








Country: China
Application: Rolling bearing manufacturer
Type: wheel heat recovery type
Cooling capacity: 210kw
Heating capacity: 215kw
Supply air volume: 38000m3/h
Exhaust air volume: 38000m3/h

Country: China
Application: Cool Storehouse
Type: constant temperature and constant humidity unit
One model:
Cooling capacity: 22kW & 180kW
Electric heating capacity: 82kW & 90kW
Humidifying capacity: 6kg/h & 30kg/h
Supply air: 4500 m3/h & 35000 m3/h

Country: China
Application:Ferry waiting hall
Type: heat pump type
Cooling capacity:182.5kw
Supply air volume: 22000m3/h

Country: China
Application:Flight simulation system laboratory
Cooling capacity:10kw
Supply air volume:3000m3/h
Power supply: 380V/3PH/50Hz
