Dry Cooler/Drycooler
Total 1 Page 8 records
Dry coolers are available in a wide performance range between approx. 5 and 2,000 kW dry cooling performance. Depending on case of application, you can select between different series. All dry coolers are available in different noise levels and naturally suitable for outside installation. Water or water-glycol mixtures can be used as cooling medium.

In case you do not find the type or model in the website, we can customized according to your request. Please contact us: Tel: 0086-21-35324169, Fax:0086-21-35324166, Email:sales@shenglintec.com

Structure Type Model Photo Cooling cpacity (kw) Air volume (m3/h) Fan Diameter(mm) Air discharge direction Key documents
Plate Type Dry  Cooler  SHSL-D1-005-1x350~SD1-649-16x630 5~649 2828~263503 350~630 Vertical Brochure of SHSL-D1
Horizontal
V Type Dry Cooler SHSL-D2-148-4X630~SD2-921-20x630 148~921 76459~351663 630 Vertical Brochure of SHSL-D2
Plate Type Dry Cooler  SHSL-D3-042-1X800~SD3-607-12X800 42~607 21454~227449 800 Vertical Brochure of SHSL-D3
V Type Dry Cooler SHSL-D4-176-4X800~SD4-792-16X800 176~792 21454~227449 800 Vertical Brochure of SHSL-D4

Reference

For solar industry

Country: China
Application :cooling of solar heating system when it is overheated
Cooling capacity: 463, 933 and 1475kW
Cooling medium: 50% propylene glycol water
Supply power: 380V/3P/50Hz
Fan brand: Ziehl-Abegg
Altitude:4200m

Country: UAE
Application: solar thermal system
Cooling capacity: 21kw
Cooling medium: water
Supply power: 230V/1P/50Hz
Fan brand: Chinese brand

Country: Korea
Application: solar system overheated
Cooling capacity: 32kW
Cooling medium: 30% ethylene glycol water
Supply power: 230V/1P/60Hz
Fan brand: Chinese brand

For plastic industry

Country: Algeria
Application: cooling water from injection molding machine
Cooling capacity: 694kW
Cooling medium: water
Supply power: 400V/3P/50Hz
Fan brand: Ziehl-Abegg

Country: Armenia
Application: for plastic caps of beverages factory
Cooling capacity:70kW
Cooling medium: 34% ethylene glycol
Supply power: 380V/3P/50Hz
Fan brand: Chinese brand

Country: Russia
Application: bathtub factory
Inlet/outlet air temperature:40℃/66℃
Inlet/outlet water temperature:85℃/50℃
Air volume:7986m3/h
Cooling medium:water
Supply power: 380V/3P/50Hz
Fan brand: Chinese brand

Instead of cooling tower

Country: Argentina
Application: for equipment cooling, to match chiller.
Cooling capacity: 245kW
Cooling medium: water
Supply power:380V/3P/50Hz
Fan brand: Chinese brand

Country: Mexico
Application: instead of cooling tower, to match chiller.
Cooling capacity: 360kW
Cooling medium: water
Supply power:440V/3P/60Hz
Fan brand: Chinese brand

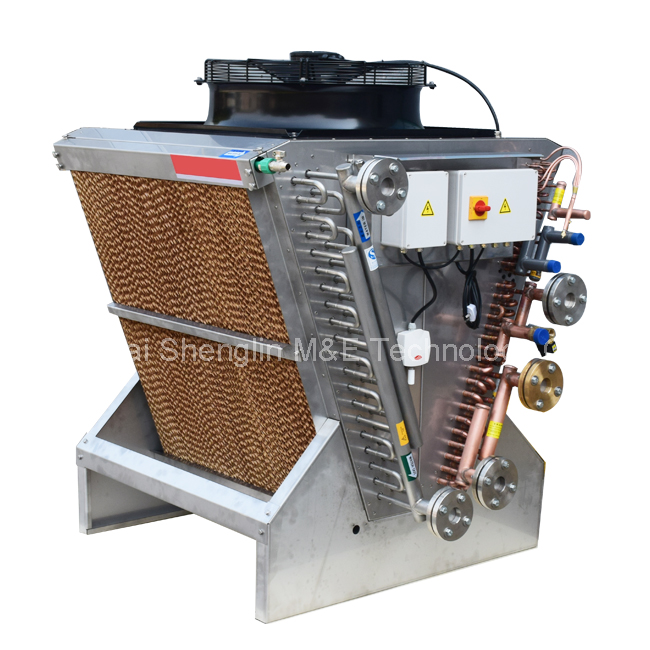

With wet curtain, with water pump and water tank

Country: Mauritius
Application: supermarket and will match chiller use.
Heat transfer capacity: 502kW
Cooling medium: water
Supply power: 380V/3P/50Hz
Fan brand: Chinese brand, air volume: 20228m3/h

For data center cooling

Country: Mongolia
Application: match with precision air conditioner
Cooling capacity: 17.6kW
Cooling medium: 34% ethylene glycol
Supply power: 400V/3P/50Hz
Fan brand: Ziehl-Abegg

Country: Russia
Application:data center cooling
Cooling capacity: 763kW
Cooling medium: water
Supply power: 380V/3P/50Hz
Fan brand: Ziehl-Abegg







Factory cooling

Country: Russia
Application: ore yard cooling
Cooling capacity: 493kW
Cooling medium: 20% ethylene glycol
Supply power: 400V/3P/50Hz
Fan brand: Ziehl-Abegg

Country: China
Application: plant cooling
Cooling capacity: 52kW
Cooling medium: 30% ethylene glycol
Supply power: 380V/3P/50Hz
Fan brand: Chinese brand





For power plant

Country: Hongkong
Application: power plant
Cooling capacity: 363kW
Cooling medium: water
Supply power: 415V/3P/50Hz
Fan brand: Chinese brand

Country: Russia
Application: power plant.
Cooling capacity: 180kW
Cooling medium: water
Supply power: 380V/3P/50Hz
Fan brand: Chinese brand





Other application

Country: Singapore
Application: match with fruit and vegerable freezer
Cooling capacity: 14.6kw, 17kw and 29.37kw
Cooling medium: 20% ethylene glycol
Supply power: 230V/1P/50Hz
Fan brand: Ziehl-Abegg

Country: Singapore
Application: wastewater treatment factory, cooling water
Cooling capacity: 429kW
Cooling medium: water
Supply power: 400V/3P/50Hz
Fan brand: Ziehl-Abegg

Country: Russia
Application: industrial cooling
Cooling capacity: 153kW
Cooling medium: 20% glycol
Supply power: 380V/3P/50Hz
Fan brand: Ziehl-Abegg



Application
1. Application of dry cooler in computer room air conditioning system:
In the summer, the air conditioner operates in a normal ethylene glycol refrigeration system. When the outdoor temperature is lowered, the glycol refrigerant can be directly used for free energy saving refrigeration. At this time, the ethylene glycol circulates in the refrigeration coil, and the refrigerant circuit and the glycol loop are simultaneously cooled, thus reducing the energy consumption of the compressor.
When the outdoor temperature is much lower than the critical temperature—the single-use (energy-saving) glycol refrigeration system is enough to dissipate all the heat load in the room, the compression refrigeration system will be completely shut down, and the whole unit is equivalent to a conventional chiller with an electric valve.


2. Application of dry cooler in cooling production equipment system:
Summer: dry cooler cools the refrigerant through a plate exchanger or shell and tube heat exchanger.
Winter: dry cooler replaces chiller, direct cooling workshop production equipment.

3. Application of dry cooler in water-cooled chilled water air conditioning system:


4. Application of dry cooler in cold storage refrigeration system:
Summer: dry cooler cools the refrigerant through a plate exchanger or shell and tube heat exchanger.
Winter: dry cooler replaces chiller, directly supplies cooling source to the air cooler, cools the room


5. Application of dry cooler in cooling diesel generator set:
Cooling method: The water in the dry cooler system uses a heat exchanger to cool the circulating water or oil inside the generator.


Dry Coolers, Dry-coolers, Dry-cooler, Dry Cooler.
