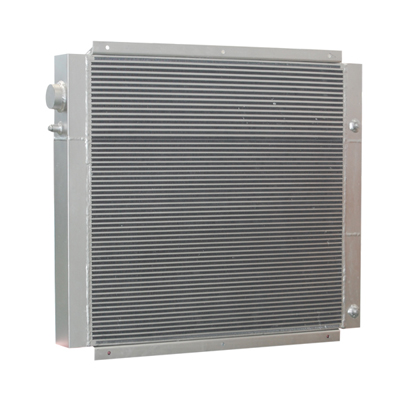

Air compressor series
Plate Fin Heat Exchanger Manufacturer
  • Plate Fin Heat Exchanger Manufacturer
  • Plate Fin Heat Exchanger Manufacturer
  • Plate Fin Heat Exchanger Manufacturer
  • Plate Fin Heat Exchanger Manufacturer

Plate Fin Heat Exchanger Manufacturer

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Features
Saving investment  costs
Less  space occupation
Plates can be increased or decreased flexibly as required
Convenient maintenance
Light weight

Fin type

Type

Fin Type

Height mm

Pitch mm

Thickness mm

Lover

Out fin

8

2.0/2.5/3.0

0.1/0.15/0.2

9

9.5

10.3

11.3

12

Sawtooth

Inner fin

2.5

1.4/1.7/2.0/2.5/3.0

0.15/0.2/0.25/0.3



Specification



SL-No:



Unit

Performance

Compressor power

kW

15

22

37

45

55

75

90

110/132

Oil flow

L/min

30

40

50

60

75

100

125

150

Compressed air flow

M3/min

2.4

3.6

6.2

8

10

13

16

20

Oil inlet temp.

90

90

90

90

90

90

90

90

Air inlet temp.

100

100

100

100

100

100

100

100

Cooling air  volume

kg/h

3200

4100

6000

7500

8600

12500

14500

19500

Cooling air pressure drop

Pa

135

170

190

250

250

250

250

250

Cooling air temp.

45

Working pressure

bar

Max. 15

Approximate cooler dimensions

A

mm

290

375

485

520

548

535

650

776

B

mm

83

126

146

146

193

260

300

300

C

mm

400

430

530

650

700

850

850

1000

D

mm

63

95

113

113

113

113

113

113

E

mm

500

550

670

790

846

990

990

1140

F

mm

450

490

600

720

770

920

920

1070

G

mm

433

561

691

726

801

855

1010

1136

Oil  side connector

inch

G1/2”

G1/2”

G1”

G1”

G1”

G1-1/4”

G1-1/4”

G1-1/4”

Air side connector

inch

G1/2”

G1/4”

G1/4”

G1/4”

G1-1/2”

G2”

G2”

G2”

Weight approx

kg

12

22

38

48

60

70

86

105


Applied fields:
Agricultural machines, tractors and forestry equipment
Construction machines
Automotive industry
Railway equipment (trains)
Compressors
Hydraulic installations
Power generator sets (gen-sets)
