Package air conditioning unit/ Package unit

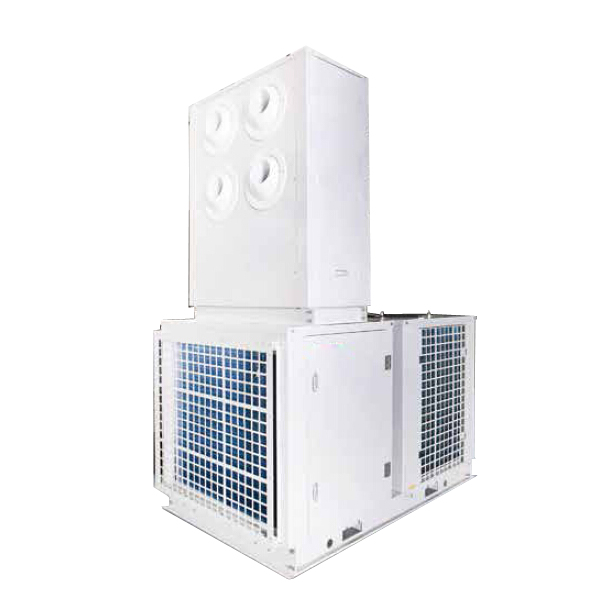

Tent Package
  • Tent Package
  • Tent Package
  • Tent Package
  • Tent Package

Tent Package

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
1. Self-contained package design
Easy installation with just connecting condensate
drainage and electrical power supply, equipped
with connecting plug.

2.Plenum chamber
3 meter height with better air circulation and
strong air flow.

3. Special unit structure design
The tent wall can be installed in between of
evaporator and condenser with the gap of 100-
150mm.

4. Long distance air supply
High external static pressure (max 350 pa) with
30 meter air throws.

5. Digital Controller
LED display, timer display, fan speed display,
tempareture display, error code display, mode
display.

6. Easy maintenance
Air filter is easily dismantled and cleaned.

Parameters           Model

CTA-14CWSA

CTA-28CWSA/B

CTA-42CWSA/B

CTA-56CWSA/B

CTA-84CWSA/T

CTA-100CWSA/T

Power supply

V~/PH/HZ

380/3/50

Cooling

Capacity

kW

14.0

28.0

42.0

56.0

84.0

100.0

HP

5

10

15

20

30

36

Btu/h

48000

96000

144000

192000

290000

340000

Power input

kW

4.90

9.80

14.80

19.80

29.80

36.60

Running current

A

8.7

17.5

26.1

34.9

51

71.7

Start current

A

26.0

35.0

52

70

95

95

EER

W/W

2.86

2.86

2.84

2.83

2.82

2.81

Adjustable capacity

%

0, 100

0,50,100

0,30,100

0,50,100

0,30,66,100

0,30,66,100

E.S.P



Pa

150

150

250

250

350

350

Evaporator

Fin material type



Hydrophilic louvered aluminum fin

Tube material type



Innergroover tube type

Number of row



3

4

4

4

5

5

Type



High efficiency Centrifugal

Air discharge type



Top discharge

Rated ESP air flow

m³/h

2500/1800

5000/3200

8000/5500

10000/7000

12000

15000

Condenser

Fin material type



Hydrophilic louvered aluminum fin

Tube material type



Innergroover tube type

Number of row



2

4

3

3

4

4

Type



High efficiency axial

Air discharge type



Top discharge

Rated air flow

m³/h

5000

11000

16000

22000

32000

35000

Numbers

Pcs

1

1

1

1

1

1

Refrigerant

Type



R410A/R22

Unit dimension

Width

mm

1050

1050

1050

1050

1100

1100

Depth

mm

1200

1700

1940

2090

2750

2750

Height

mm

1100

1100

1460

1865

2300

2475

Unit noise level

dB(A)

65

67

70

75

71

71

Unit weight

kg

320

450

560

650

1680

1840

Exhibition tent......

WRFZA series High configuration table

No

Part name

Brand

Country

1

Compressor

Copeland/Danfoss

Suzhou,Shen Yang/Tianjin,China

2

Drier-filter

EMERSON

Suzhou,China

3

Vapour liquid separator

Tongli

Wuxi,China

4

Expansion valve

EMERSON/Danfoss

Suzhou,China

5

 High pressure switch

Bai Lu

Changzhou,China

6

Low pressure switch

Bai Lu

Changzhou,China

7

Centrifugal fan

Yilida

Zhejiang,China

8

Axial fan

Kemao

Zhejiang,China

9

Fin evaporator

Shenglin

Dezhou,China

10

Fin condenser

Shenglin

Dezhou,China

11

Controller

Carel/Simens

Beijing/Suzhou,China

12

Breaker

SCHNEIDER

Shanghai,China

13

AC contactor

SCHNEIDER

Shanghai,China

14

Three phase AC protector

Cocis

Wuxi,China



WRFZA series low configuration table

No

Part name

Brand

Country

1

Compressor

Dakin

Xian,China

2

Drier-filter

EMERSON

Suzhou,China

3

Vapour liquid separator

Tongli

Wuxi,China

4

Expansion valve

EMERSON/Danfoss

Suzhou,China

5

High pressure switch

Bai lu

Changzhou,China

6

Low pressure switch

Bai lu

Changzhou,China

7

Centrifugal fan

Yingdeli

Zhangjiagang,China

8

Axial fan

Rainbow/Shenboyuan

Suzhou/Taizhou

9

Fin evaporator

Shenglin

Dezhou,China

10

Fin condenser

Shenglin

Dezhou,China

11

Controller

Syslab

Shengzhen,China

12

Breaker

SCHNEIDER

Shanghai,China

13

AC contactor

SCHNEIDER

Shanghai,China

14

Three phase AC protector

Cocis

Wuxi,China
