Marine Type AC

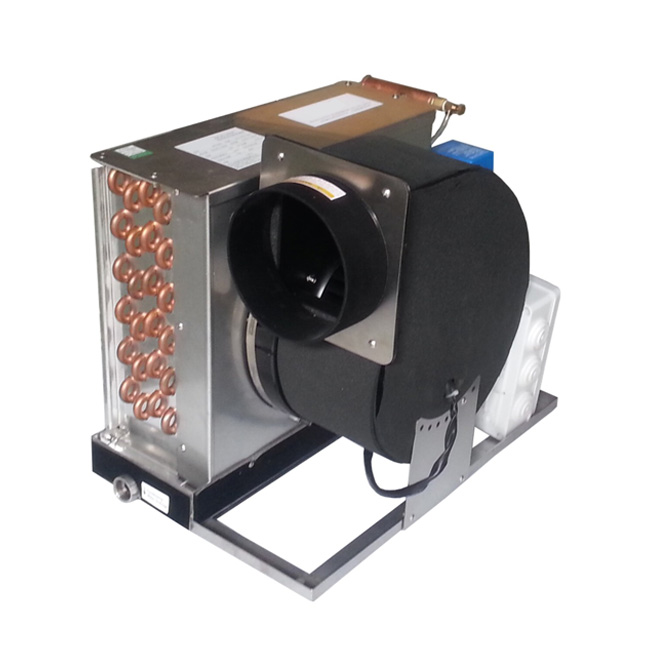

Marine Floored Fan Coil Unit
  • Marine Floored Fan Coil Unit
  • Marine Floored Fan Coil Unit
  • Marine Floored Fan Coil Unit
  • Marine Floored Fan Coil Unit

Marine Floored Fan Coil Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Fan blower can be rotated, stainless steel sheet metal, double drain pan with spill-proof design

Model



MF9-E5A

MF12-E5A

MF18-E5A

MF24-E5A

MF36-E5A

Power supply

Ph-V-Hz

1Ph/220V/50Hz

Cooling capacity

BTU

9,000

12,000

18,000

24,000

36,000

Heating capacity

BTU

10,000

13,100

19,800

26,700

42,000

Max. input power

W

140

140

200

360

680

Water flow

M3/h

0.55

0.77

1.1

1.5

2.2

Air flow

M3/h

630

630

810

1,150

1,800

Water pipe

mm

G3/4”-25

Condensed water pipe

mm

G3/4”-25

Fan duct size

mm

Φ150

Φ200

Noise level

dB(A)

≤50

≤50

≤54

≤59

≤67

Net weight

Kg

13.5

14

18

25

33

Dimension(L*W*H)

mm

512X360X390

512X360X440

560X380X485

580X440X583


It is widely used in all kinds of passenger ships, cargo ships, warships and offshore oil platfroms
