Heat Pump

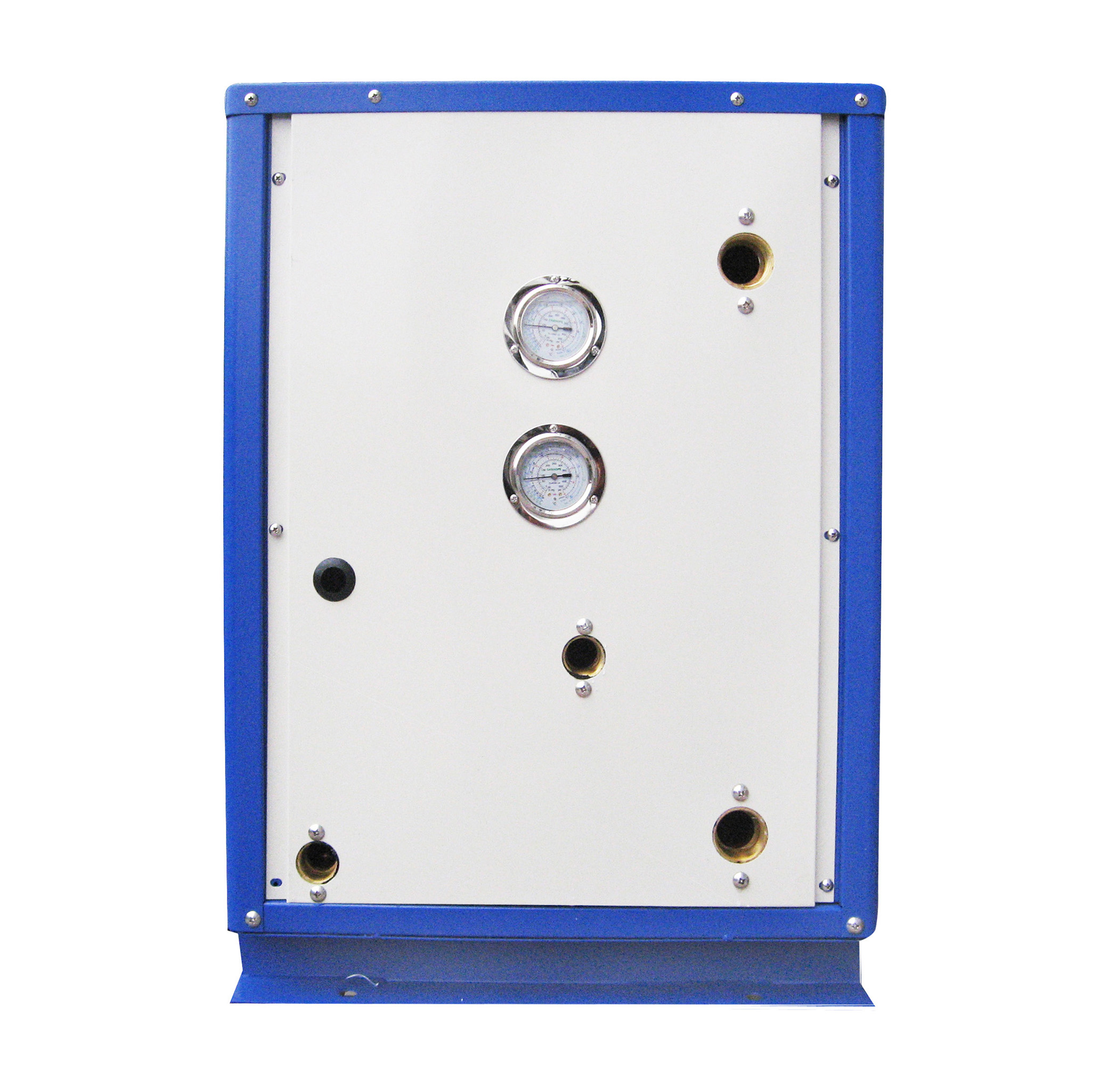

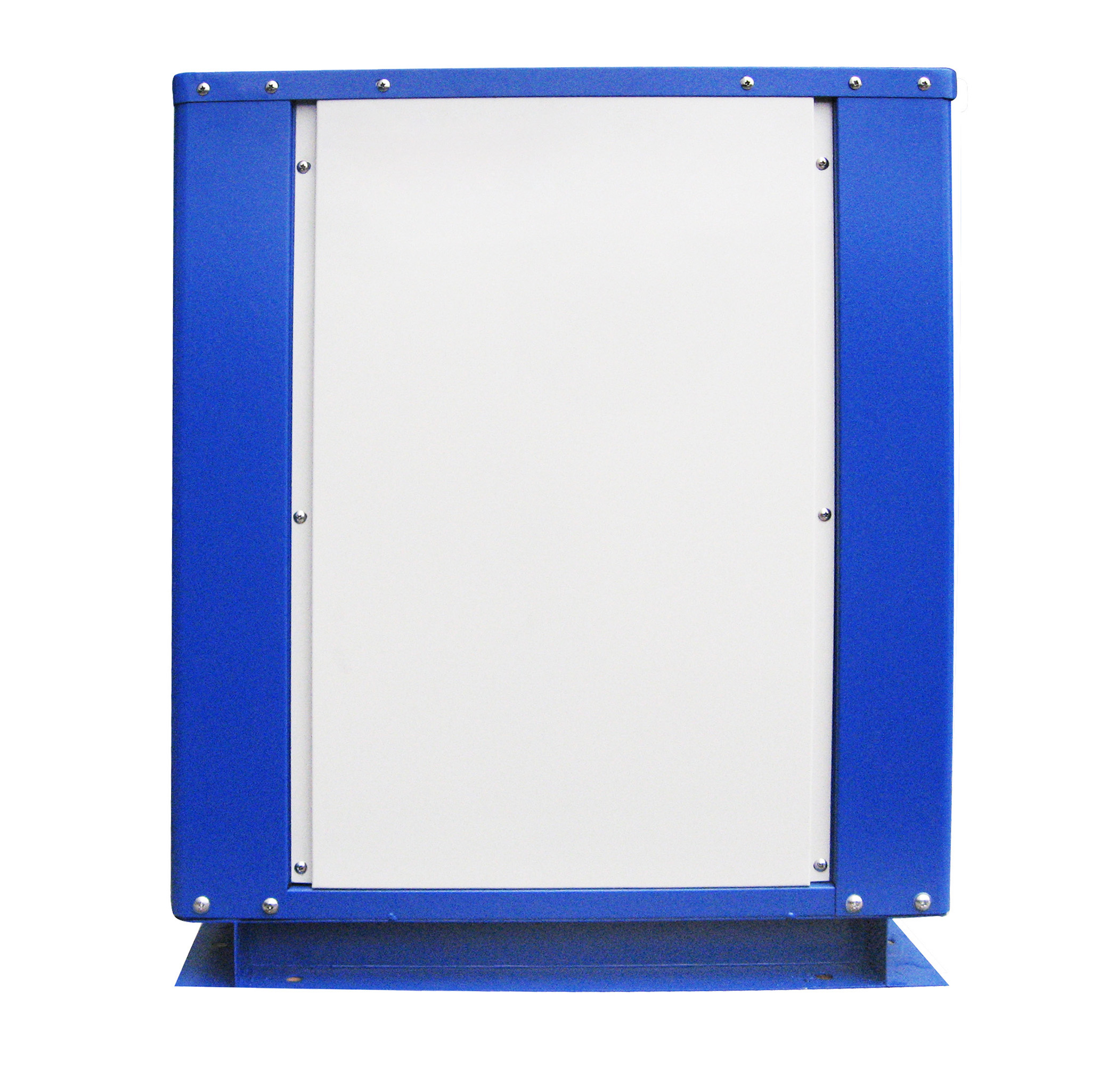

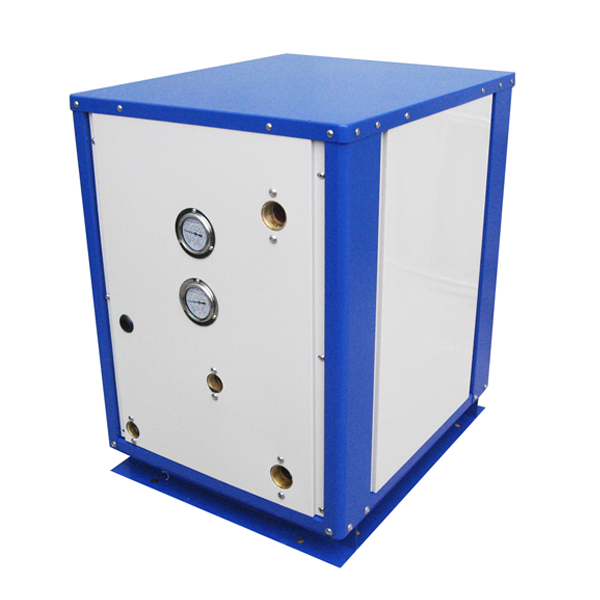

Water(geothermal) Source Heat Pump
  • Water(geothermal) Source Heat Pump
  • Water(geothermal) Source Heat Pump
  • Water(geothermal) Source Heat Pump
  • Water(geothermal) Source Heat Pump

Water(geothermal) Source Heat Pump

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. Safety:water and electric separately.
2. Hot water(55°C) can be provided directly
3. Convenient:Intelligent remote controller,with simple key operation.Displays error code when having problem,easy for maintenance.
4. World famous brand compressor,4-way valve,motor,PCB,heat exchanger,Emerson ALCO expansion valve used to ensure top quality an high efficiency(Energy-Saving as much as 75%).
5. All weather operation: stable operation without being influenced by weather.
6. Metal case and stainless steel case are available,R22,R407C,R410a,R417A,R134A are for optional.
7. Simple installation: rooftop, balcony, yard or basement can be suitable places for the installation.
8. Quiet: Special design for motor and fan to decrease noise, no disturbance to owners and neighbours.

Model

MDS20D

MDS30D

MDS50D

MDS60D

MDS100D

MDS200D

Input power (KW)

1.8

2.9

4.4

5.4

8.8

17.6

Heating capacity (KW)

7.5

12

19

22

38

76

Cooling capacity (KW)

5.4

9

14

28

28

56

Rated voltage (V)

220

220/380

380

Rated frequency (HZ)

50/60

Rated current (A)

8

13/6

9

12

18

35

Related outlet water temp (°C)

55

Outlet water Max temp (°C)

60

Cold water temp drop(°C)

3~5

Water flow L/H

2000

3600

5500

7000

11000

22000

Pipe Size of Load side

DN25

DN25

DN25

DN32

DN32

DN50

Pipe Size of heat source side

DN25

DN25

DN25

DN32

DN32

DN50

Dimensions (mm)

660*560*770

970*650*720

1000*680*720

Packing dimensions (mm)

730*630*915

1020*700*870

1080*760*870

Weight (KG)

88

125

170

175

360

620

Leve of security

IP×4

Electric shock protection grade

1 Grade

Noise (Db)

40

45

50

50

55

55

Refrigerant

R417A/R407C/R404A/R410A/R22/R134A

Compressor

Panasonic

Copeland

Condenser: Double-pipe heat exchanger.

Evaporator : Plate heat exchanger. The heat source is the earth(ground).

Throttle unit: Electronic expansion valve / Thermal expansion valve/ Capillary

Body: Spray coating metal plate (Stainless steel body should add price)

Quantities in 20" container

54

28

16

Quantities in 40" container

114

64

36

Apartment, House, Villa, Building, Dormitory, Hotel, Restaurant, Mall, Super market, Hospital, Factory, Workshop ...
