Heat Pump

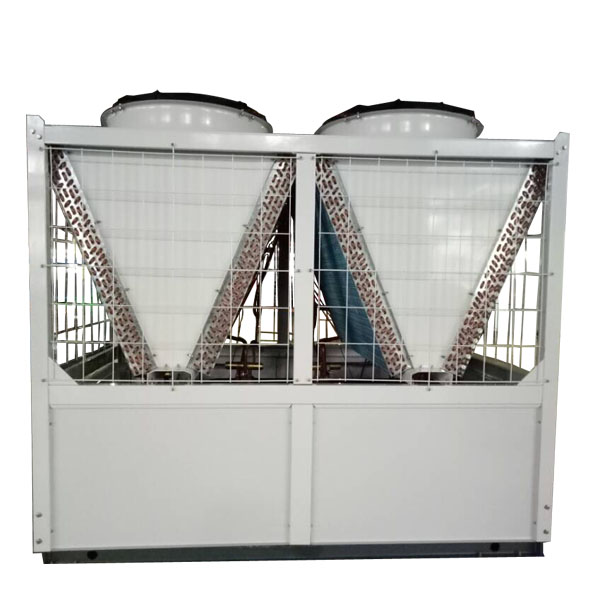

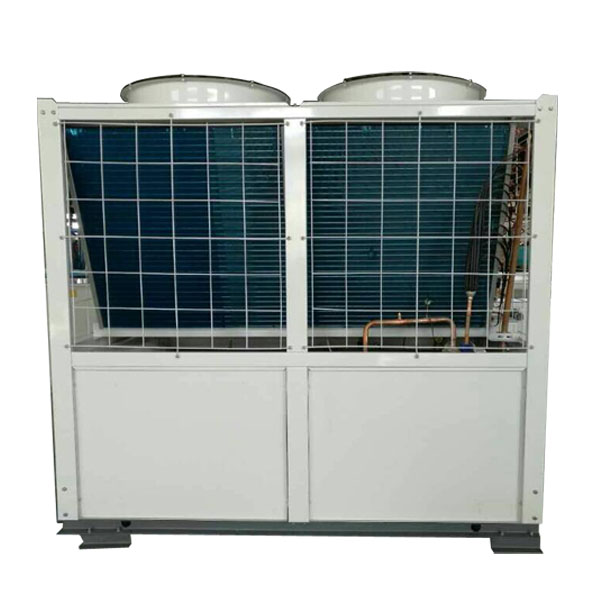

Low Temperature Air Cooled Module Cold (Hot) Water Unit
  • Low Temperature Air Cooled Module Cold (Hot) Water Unit
  • Low Temperature Air Cooled Module Cold (Hot) Water Unit
  • Low Temperature Air Cooled Module Cold (Hot) Water Unit
  • Low Temperature Air Cooled Module Cold (Hot) Water Unit

Low Temperature Air Cooled Module Cold (Hot) Water Unit

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. Easy to install, saving space: Do not need to be equipped with cooling water pumps, cooling towers, and other auxiliary equipment also it can save a large number of materials and project installation costs, if we install the unit in the open-air do not to set up a dedicated frozen room. it can save lots of the space for the users.
2. Dual-purpose machine: It can supply heating, air conditioning refrigerant through the system to achieve the function of supply heating and cooling.
3. The modular system design: Each of the refrigeration system can be independent, can be spared to each other. Any cooling loop barries have occurred does not affect the normal operation of the other loop; so that the unit can be a standard module for the production and transport, on the construction site it can be installed into a complete unit, the standard module has the characteristic of light weight, small size, it can save lots of the hoisting cost during transporting we can according to the user's requirements and air space to asseble the modules; when the unit start-up, the computer controlled the compressor to start up one by one , to reduce the impact of the current power grid.
4. Good performance, safety and reliable: *Fin Condenser down M-type design, excellent cooling effect.

Technical parameter
R410A  Super low temperature super efficient module unit

Model

LTAE90MA-G

Ambient DB/WB temperature

Inlet/outlet water temperature

Capacity

Unit

35℃/—

12℃/7℃

Cooling capacity

kW

68

Input power

kW

20.6

7℃/6℃

30℃/35℃

Heating capacity

kW

86

Input power

kW

20.2

40℃/45℃

Heating capacity

kW

86

Input power

kW

22.8

-12℃/-14℃

36℃/41℃

Heating capacity

kW

59.8

Input power

kW

22.1

Supply power

3N~/ 380V/ 50Hz

Refrigerant

R410A

Water side heat excahnger

Type

Shell and tueb ehat exchanger

Cooling water flow

m3/h

11.7

Heating water flow

m3/h

14.8

Water resistance

kPa

56

Inlet / outlet interface dimension

DN

50

External dimensions

L*W*H

mm

2200x1180x2180

Noise

dB(A)

63

Net weight

kg

690

Running weight

kg

720


Widely used in houses, villas, factories, schools, hotels, hospitals,beauty parlor,bath centers,TCM pharmacy,swimming pool,large shopping plaza,tobacco industry,etc..
