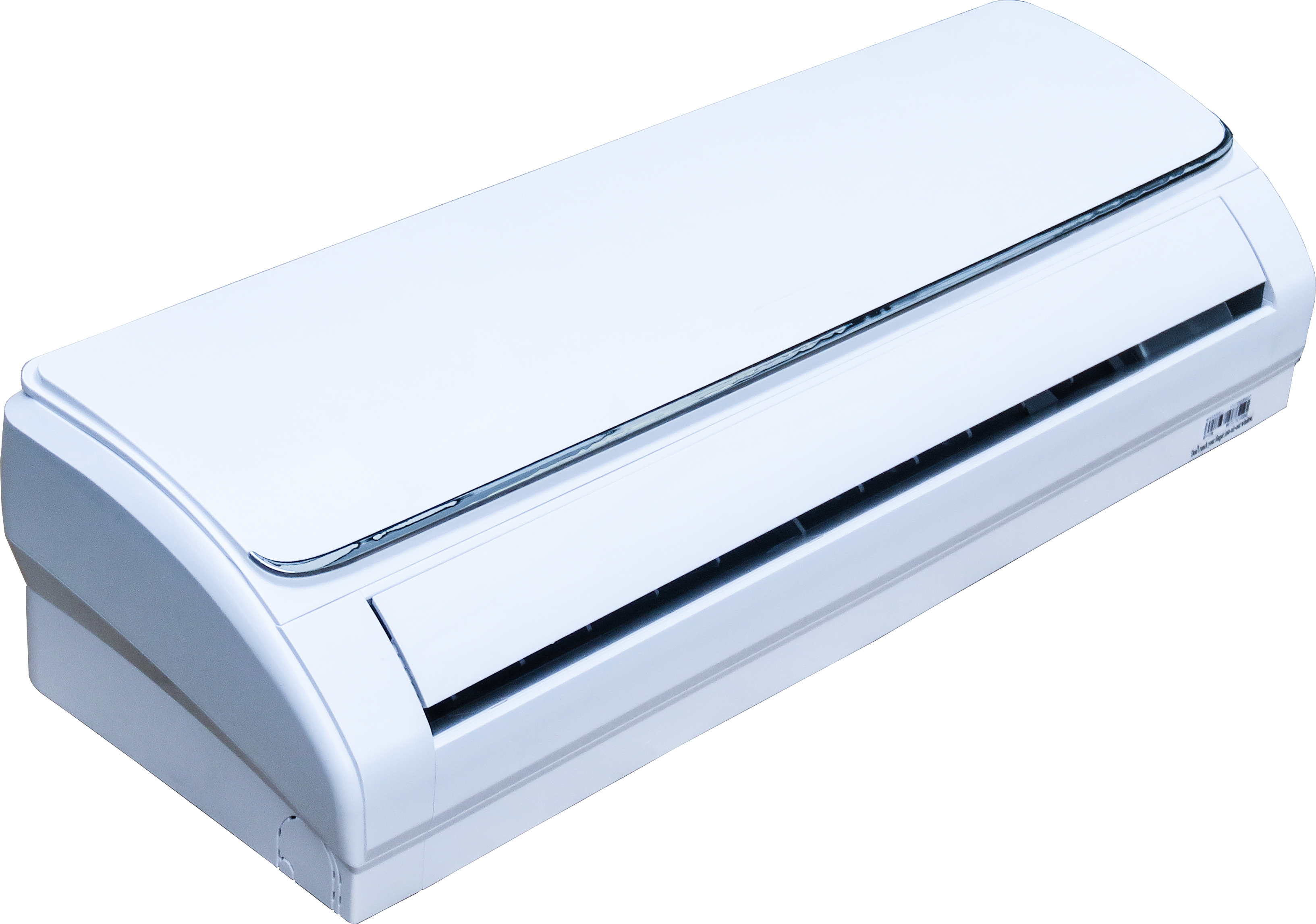

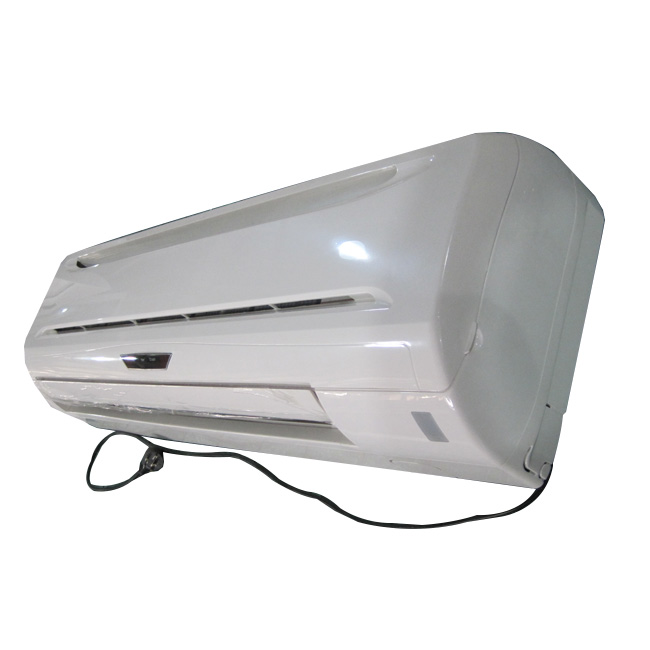

Fan Coil Unit Wall Mounted Type/Chilled Water FCU Unit Suppli
Contact Now
- TEL:0086-21-35324169
- FAX:0086-21-35324166
- Email:sales@shenglintec.com
- WhatsApp:0086 13916147965
- Mob:0086 13916147965
2. Remote controller
3. Stainless steel hose, easy to install(optional)
|
Model(2 tube system) |
MFP-34BM |
MFP-51BM |
MFP-68BM |
MFP-85BM |
MFP-102BM |
MFP-136BM |
||||
|
Panel |
220V,50Hz,1Ph |
|||||||||
|
Air volume |
H |
M³/H |
340 |
510 |
680 |
850 |
1020 |
1360 |
||
|
M |
260 |
380 |
515 |
660 |
765 |
1010 |
||||
|
L |
180 |
260 |
340 |
430 |
520 |
700 |
||||
|
Static pressure |
Pa |
0 |
0 |
0 |
0 |
0 |
0 |
|||
|
Cooling capacity |
Full heat TH |
H |
W |
1800 |
2700 |
3600 |
4500 |
5400 |
7200 |
|
|
BTU/h |
6142 |
9212 |
12283 |
15354 |
18425 |
24566 |
||||
|
Sensible heat SH |
W |
1350 |
2025 |
2700 |
3375 |
4050 |
5400 |
|||
|
BTU/h |
4606 |
6909 |
9212 |
11516 |
13819 |
18424 |
||||
|
Full heat TH |
M |
W |
1476 |
2214 |
2952 |
3690 |
4428 |
5904 |
||
|
Sensible heat SH |
W |
978 |
1399 |
1963 |
2409 |
3044 |
3926 |
|||
|
Full heat TH |
L |
W |
1098 |
1647 |
2196 |
2745 |
3294 |
4392 |
||
|
Sensible heat SH |
W |
649 |
960 |
1355 |
1715 |
2060 |
2710 |
|||
|
Heating capacity |
H |
W |
2700 |
4050 |
5400 |
6750 |
8100 |
10800 |
||
|
M |
W |
2146 |
3219 |
4293 |
5366 |
6439 |
8586 |
|||
|
L |
W |
1512 |
2268 |
3024 |
3780 |
4536 |
6048 |
|||
|
Noise |
High speed |
dB(A) |
37 |
39 |
41 |
43 |
45 |
46 |
||
|
Power input |
High speed |
W |
30 |
38 |
45 |
50 |
90 |
100 |
||
|
Waterflow volume |
High speed |
M³/H |
0.31 |
0.46 |
0.62 |
0.77 |
0.93 |
0.93 |
||
|
Pressure dropping |
kPa |
16 |
18 |
20 |
21 |
22.5 |
23.5 |
|||
|
Water tube connection (inlet) |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
||||
|
Water tube connection (oulet) |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
||||
|
Coil |
form |
Hydrophilic aluminum fin to wear copper tube |
||||||||
|
Maximum working pressure |
MPa |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|||
|
Condensing water pipe |
mm |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
ZG1/2” |
|||
|
Net dimension |
L x W x H |
mm |
850x300x198 |
850x300x198 |
970x315x235 |
970x315x235 |
1100x330x235 |
1100x330x235 |
||
|
Net weight |
kg |
11.2 |
11.2 |
14.5 |
14.5 |
16.5 |
16.5 |
|||
