Fan Coil Unit

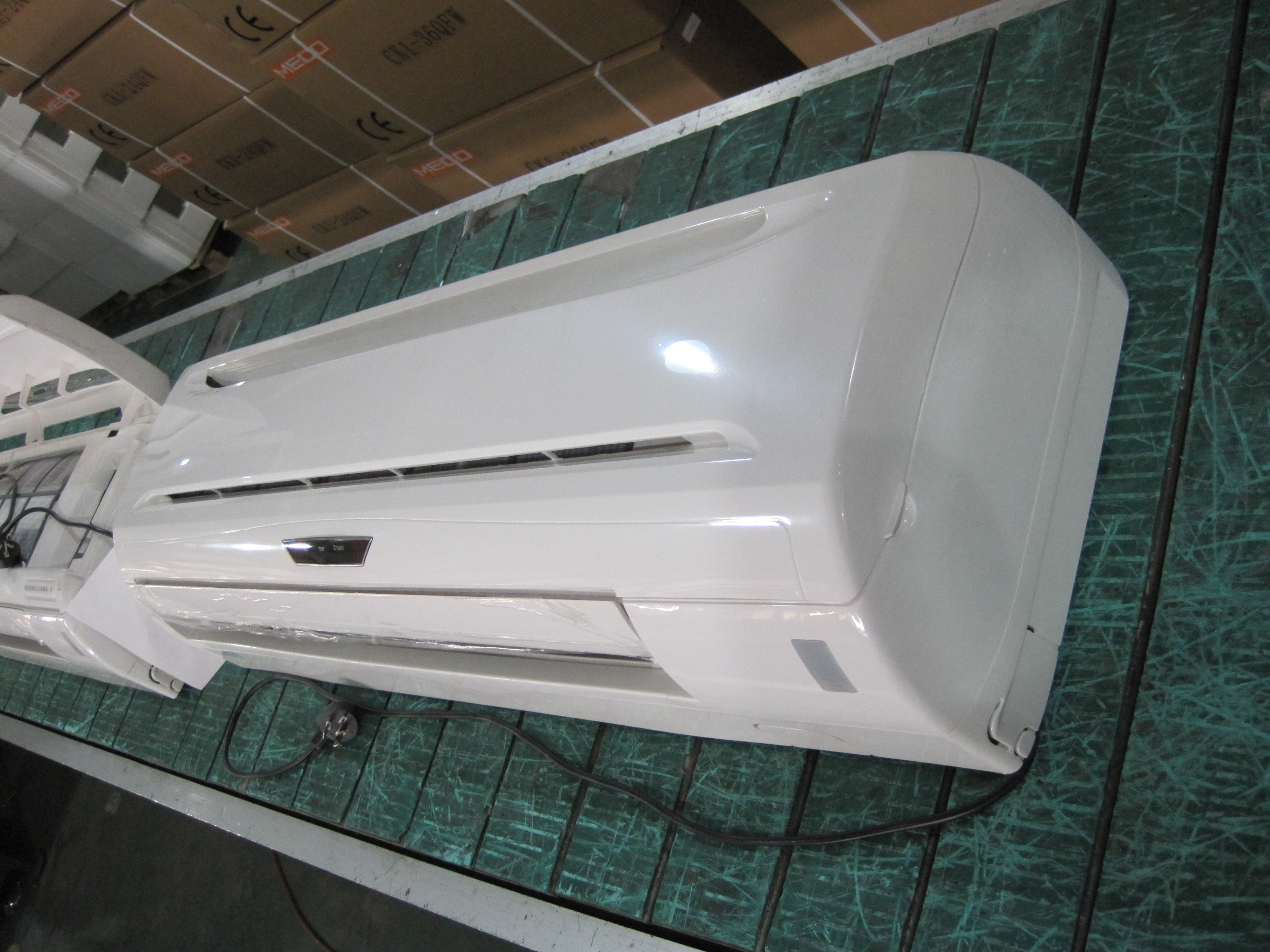

High Wall Mounted Fan Coil Unit/Wall Mounted FCU
  • High Wall Mounted Fan Coil Unit/Wall Mounted FCU
  • High Wall Mounted Fan Coil Unit/Wall Mounted FCU
  • High Wall Mounted Fan Coil Unit/Wall Mounted FCU
  • High Wall Mounted Fan Coil Unit/Wall Mounted FCU

High Wall Mounted Fan Coil Unit/Wall Mounted FCU

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. Conceal style digital display panel
2. Remote controller
3. Stainless steel hose, easy to install(optional)

Model(2 tube system)

MFP-34BM

MFP-51BM

MFP-68BM

MFP-85BM

MFP-102BM

MFP-136BM

Panel

220V,50Hz,1Ph

Air volume

H

M³/H

340

510

680

850

1020

1360

M

260

380

515

660

765

1010

L

180

260

340

430

520

700

Static pressure

Pa

0

0

0

0

0

0

Cooling capacity

Full heat TH

H

W

1800

2700

3600

4500

5400

7200

BTU/h

6142

9212

12283

15354

18425

24566

Sensible heat SH

W

1350

2025

2700

3375

4050

5400

BTU/h

4606

6909

9212

11516

13819

18424

Full heat TH

M

W

1476

2214

2952

3690

4428

5904

Sensible heat SH

W

978

1399

1963

2409

3044

3926

Full heat TH

L

W

1098

1647

2196

2745

3294

4392

Sensible heat SH

W

649

960

1355

1715

2060

2710

Heating capacity

H

W

2700

4050

5400

6750

8100

10800

M

W

2146

3219

4293

5366

6439

8586

L

W

1512

2268

3024

3780

4536

6048

Noise

High speed

dB(A)

37

39

41

43

45

46

Power input

High speed

W

30

38

45

50

90

100

Waterflow volume

High speed

M³/H

0.31

0.46

0.62

0.77

0.93

0.93

Pressure dropping

kPa

16

18

20

21

22.5

23.5

Water tube connection (inlet)

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

Water tube connection (oulet)

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

Coil

form

Hydrophilic aluminum fin to wear copper tube

Maximum working pressure

MPa

1.6

1.6

1.6

1.6

1.6

1.6

Condensing water pipe

mm

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

ZG1/2”

Net dimension

L x W x H

mm

850x300x198

850x300x198

970x315x235

970x315x235

1100x330x235

1100x330x235

Net weight

kg

11.2

11.2

14.5

14.5

16.5

16.5
