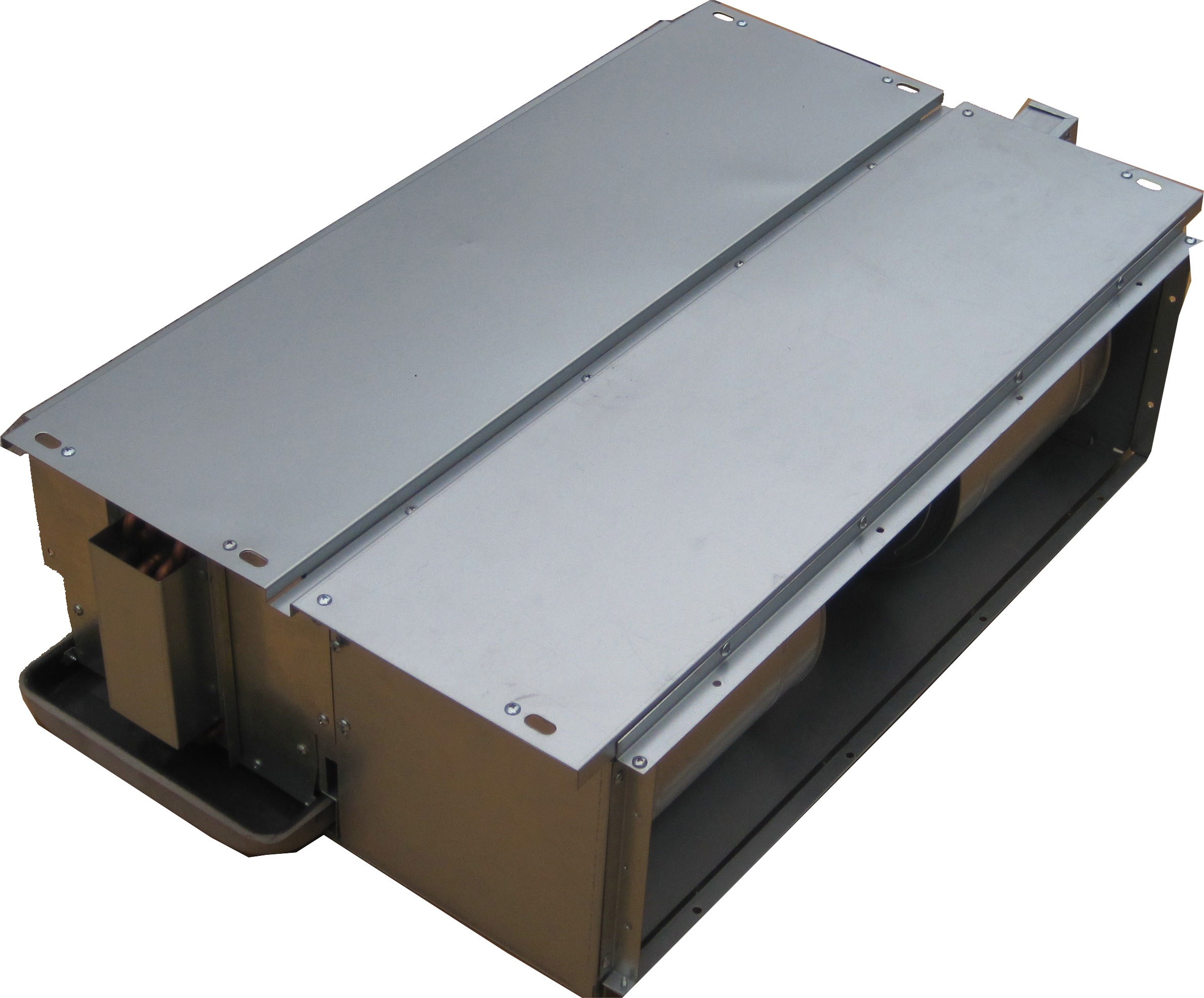

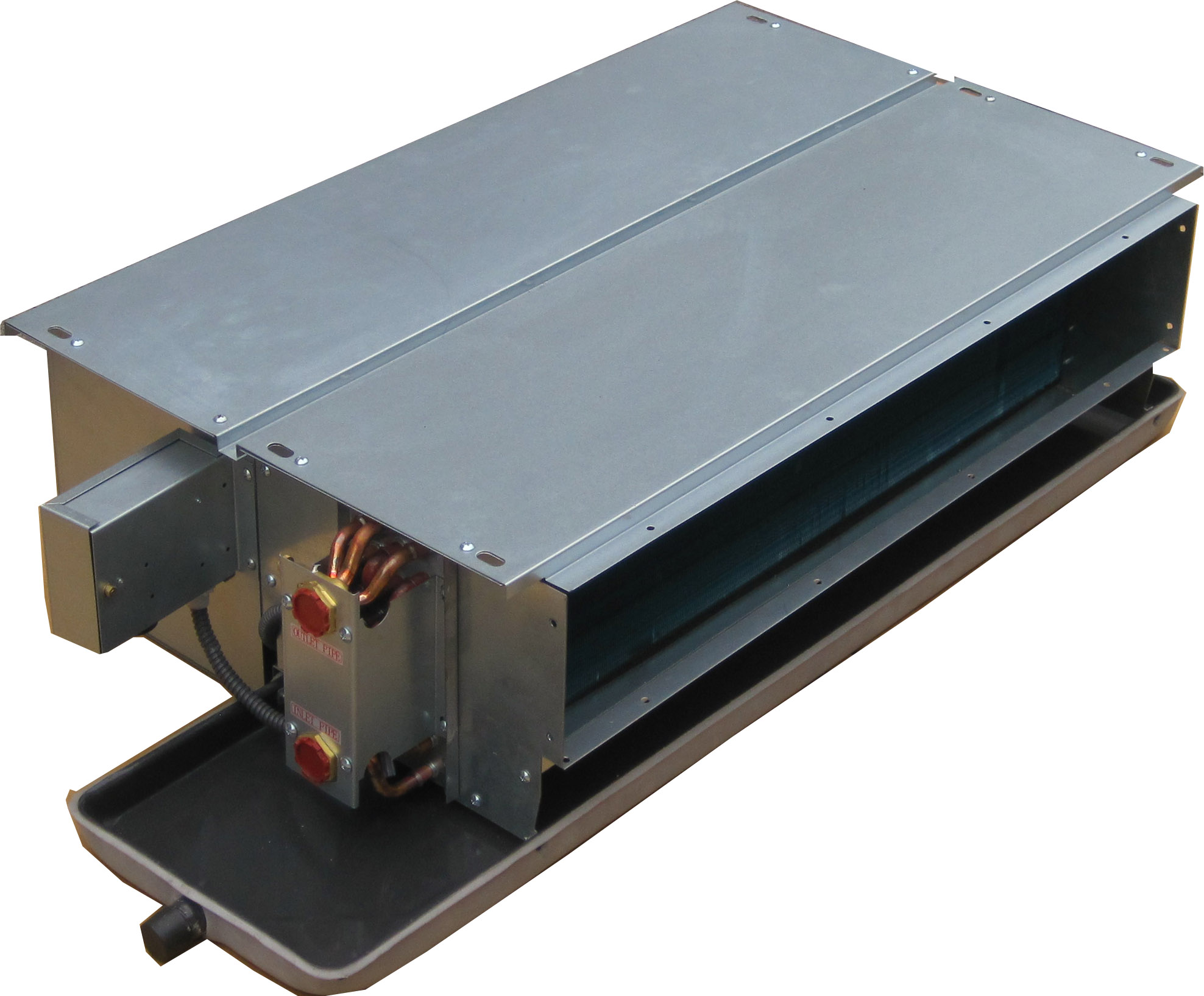

Ceiling Conceal Ducted Type Fan Coil Unit/Ducted Fan Coil
  • Ceiling Conceal Ducted Type Fan Coil Unit/Ducted Fan Coil
  • Ceiling Conceal Ducted Type Fan Coil Unit/Ducted Fan Coil
  • Ceiling Conceal Ducted Type Fan Coil Unit/Ducted Fan Coil
  • Ceiling Conceal Ducted Type Fan Coil Unit/Ducted Fan Coil

Ceiling Conceal Ducted Type Fan Coil Unit/Ducted Fan Coil

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. Fan:
Adopt famous brand fan, stable quality, reliable quality; routine and precise adjustment of operation balance, stable and quiet operation of fan

2. Water collection tray:
Adopt high-grade stretch plate, plastic-sprayed surface, smooth and smooth, corrosion-resistant, rust-resistant; one-time stamping forming process, no welding, welding points. The overall insulation treatment, the insulation layer does not warp, do not fall off, completely avoid the second drip of the condensate tray; the dual-direction spout design, the condensate discharge speed is fast, no water retention, effectively reduce the rate of bacterial growth; super large condensate tray Design to prevent the phenomenon of condensate dripping at the interface between the surface cooler and the inlet and outlet pipes

3. Heat exchanger:
High-quality copper tube, with high heat transfer efficiency, high toughness, high hardness and other characteristics, can withstand high water pressure, especially suitable for the use of super high-rise buildings; fin spacing has computer simulation optimization design combined with experimental feedback to improve, heat exchange area is sufficient Smooth wind output and high heat exchange efficiency

4. Air return box is optional, which can ease installation, reducing construction cost.

5. Integrated models:
Air flow from 340~2380m3/h, 9 models.
Every model can choose 12/30/50 Pa static pressure.

6. High efficiency:
Adopt high-efficiency heat exchanger and large air volume centrifugal fan to improve the heat transfer effect of the unit

7. Symmetrical design, simple and convenient installation
2-tube system

Model

MFP-34WA

MFP-51WA

MFP-68WA

MFP-85WA

MFP-102WA

MFP-136WA

MFP-170WA

MFP-204WA

MFP-238WA

Power supply

220V,50Hz,1PH



Air volume

H

M3/h

340

510

680

850

1020

1360

1700

2040

2380

M

270

380

515

660

765

1040

1280

1550

1800

L

190

260

340

430

530

710

860

1050

1280

Static pressure

Pa

12(30)

12(30)

12(30)

12(30)

12(30)

12(30)

12(30)

12(30)

12(30)

Cooling capacity

TH

H

W

1800

2700

3600

4500

5400

7200

9000

10800

12600

SH

W

1341

2012

2682

3353

4023

5364

6705

8046

9387

TH

M

W

1458

2187

2916

3645

4374

5832

7290

8748

10206

SH

W

1152

1728

2304

2880

3455

4607

5759

6911

8063

TH

L

W

1134

1728

2304

2880

3455

4607

5759

6911

8063

SH

W

930

1395

1860

2325

2790

3720

4649

5579

6509

Heating capacity

H

W

2700

4050

5400

6750

8100

10800

13500

16200

18900

M

2079

3119

4158

5198

6237

8316

10395

12474

14553

L

1634

2450

3267

4084

4901

6534

8168

9801

11435

Noise

High speed

12Pa

dB(A)

37

39

41

43

45

46

48

50

52

30Pa

39

41

43

45

48

49

50

52

54

Power input

High speed

12Pa

W

34

41

59

73

91

118

146

182

216

30Pa

41

54

65

82

98

132

168

206

247

Waterflow volume

High speed

M3/h

0.31

0.46

0.62

0.77

0.93

1.23

1.54

1.85

2.16

Pressure dropping

kPa

16

18

20

23

28

30

33

37

40

Water tube connection(inlet)

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

Water tube connection(outlet)

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

ZG3/4”

Coil

Type

Copper tube hydrophilic aluminum fins



Maximum working pressure

MPa

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

1.6

Condensation pipe size(diameter)

mm

External thread DN20

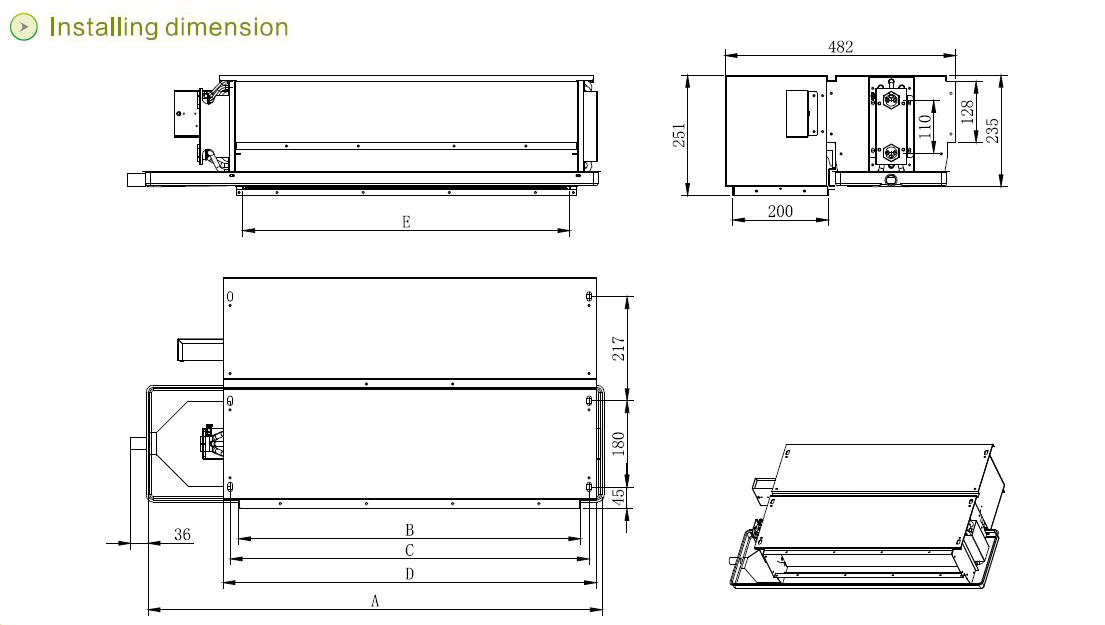

Net dimension

L x W xH

mm

755 x 482 x 235

855 x 482 x 235

955 x 482 x 235

1080 x 482 x 235

1175 x 482 x 235

1460 x 482 x 235

1650 x 482 x 235

1915 x 482 x 235

2150 x 482 x 235

Net weight

kg

15.4

17.9

20

21.9

23.3

32.3

35.7

40

44.9



This product have widely range of use. It can be used for the central air conditioning system in big or small spaces such as: hotel, home, official building, supermarket and hospital.
