Air Cooled Condenser

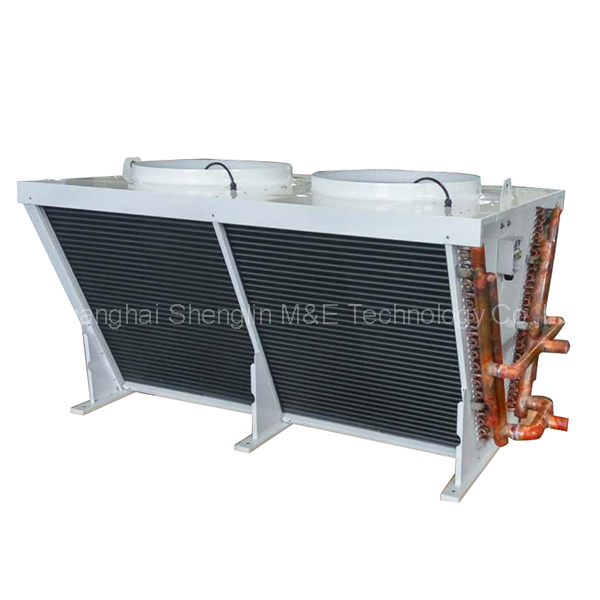

V Type Air Cooled Condenser
  • V Type Air Cooled Condenser
  • V Type Air Cooled Condenser
  • V Type Air Cooled Condenser
  • V Type Air Cooled Condenser

V Type Air Cooled Condenser

We're here to help Easy ways to get the answers you need.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification

Air discharge direction

Performance ranges

Cooling capacity: from 10 to 285 kw
Air volume: from 2819 to 64356 m3/h
Sound pressure level: from 31 to 64 dB A(10m)
Air cooled condensers:customized on demand

High efficiency heat exchanger

Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan.
Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition).
Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany

Fan

Only choose low specific energy consumption fans.
Fan nozzle designs for maximum air flow and air throw.
Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting.
Motor: protection class IP 54 and insulation class F.
Voltage:400V/3N/50Hz
Air separator for each fan.

Testing

Heat exchangers are supplied clean and tested at a pressure of 30 bars

Options

Coil design refrigerant: R414A, R407C.
Multiple circuits.
Sub-cooling circuits.
Stainless steel or aluminum casing.
Coated aluminum or copper fins and anti-corrosion expoxy fin.
Explosion ploof motor.
Customized fin spacing.


Technical parameter
Air cooled condenser SHSL-C1 series parameter(fin space 2.1mm)

Type

SHSL-C1-010-1X350

SHSL-C1-012-1X350

SHSL-C1-013-1X350

SHSL-C1-018-1X450

SHSL-C1-021-1X450

SHSL-C1-024-1X450

SHSL-C1-027-1X500

SHSL-C1-032-1X500

SHSL-C1-038-1X500

Capacity

R404A

KW

10.02

11.58

13.10

17.79

20.99

24.32

27.07

31.55

37.60

Y

R22

9.76

11.19

12.47

17.55

20.46

23.44

26.57

30.84

36.11

Y

Air flow

M3/h

2819

2682

2456

5945

5560

5053

8415

8111

7556

Y

Fan motor

Phase

1

1

1

3

3

3

3

3

3

W

140

140

140

540

540

540

830

830

830

Y

A

0.60

0.60

0.60

1.10

1.10

1.10

1.45

1.45

1.45

Y

Fan

No. X φ

1x1x350

1x1x350

1x1x350

1x1x450

1x1x450

1x1x450

1x1x500

1x1x500

1x1x500

Sound pressure level

dB(A)

31

31

31

43

43

43

49

49

49

Y

10m

Dimension

L

mm

870

870

870

1020

1020

1020

1220

1220

1220

W

mm

525

525

525

625

625

625

825

825

825

H

mm

797

797

797

820

820

820

870

870

870

A

mm

690

797

797

840

820

820

1040

870

870

B

mm

--

--

--

--

--

--

--

--

--

C

mm

--

--

--

--

--

--

--

--

--

D

mm

490

490

490

490

490

490

490

490

490

Inlet φ

mm

15.88

15.88

15.88

19.05

19.05

19.05

22.2

22.2

22.2

Inlet φ

mm

12.7

12.7

12.7

15.88

15.88

15.88

19.05

19.05

19.05

Product weight(empty)

kg

38

39

43

53

56

61

80

84

92


Type

SHSL-C1-050-1X630

SHSL-C1-060-1X630

SHSL-C1-073-1X630

SHSL-C1-097-2X630

SHSL-C1-117-2X630

SHSL-C1-142-2X630

SHSL-C1-142-2X630

SHSL-C1-178-3X630

SHSL-C1-235-4X630

SHSL-C1-285-4X630

Capacity

R404A

KW

50.37

60.48

72.75

97.45

117.41

142.44

177.81

215.08

234.82

284.89

Y

37.77

45.36

54.56

73.08

88.06

106.83

133.35

161.31

176.12

213.67

R22

49.90

59.49

70.14

97.05

116.05

137.95

169.21

204.51

232.09

275.89

Y

37.43

44.62

52.61

72.79

87.03

103.46

126.91

153.38

174.07

206.92

Air flow

M3/h

18206

17477

16087

36414

34958

32178

52435

48266

69916

64356

Y

14565

13982

12870

29131

27966

25742

41948

38613

55933

51485

Fan motor

Phase

3

3

3

3

3

3

3

3

3

3

W

2750

2750

2750

8250

8250

8250

8250

8250

8250

8250



Y

1750

1750

1750

5250

5250

5250

5250

5250

5250

5250

A

5.10

15.30

15.30

15.30

15.30

15.30

15.30

15.30

15.30

15.30

Y

3.00

9.00

9.00

9.00

9.00

9.00

9.00

9.00

9.00

9.00

Fan

No. X φ

1x1x630

1x1x630

1x1x630

2x1x630

2x1x630

2x1x630

3x1x630

3x1x630

2x2x630

2x2x630

Sound pressure level

dB(A)

59

59

59

61

61

61

63

63

64

64

Y

10m

52

52

52

54

54

54

56

56

57

57

Dimension

L

mm

1530

1530

1530

2830

2830

2830

4130

4130

2880

2880

W

mm

1085

1085

1085

1085

1085

1085

1085

1085

2100

2100

H

mm

920

920

920

920

920

920

920

920

1070

1070

A

mm

1340

1340

1340

--

--

--

--

--

--

--

B

mm

--

--

--

1340

1340

1340

1340

1340

1340

1340

C

mm

--

--

--

1300

1300

1300

1300

1300

1300

1300

D

mm

640

640

640

640

640

640

640

640

640

640

Inlet φ

mm

28.58

28.58

34.93

34.93

41.28

41.28

53.98

53.98

53.98

66.67

Inlet φ

mm

22.22

22.22

28.58

22.22

34.93

34.93

41.28

41.28

41.28

41.28

Product weight(empty)

kg

171

178

193

296

311

337

442

482

498

554



Process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air.
