Air Cooled Condenser
Air condensers are available in a wide performance range between 10 and 2,000 kW condensing performance. Depending on case of application, you can select between different series.  All air cooled condensers are available in different noise levels and naturally suitable for outside installation.

Structure Type Model Photo Cooling cpacity (kw) Air volume (m3/h) Fan Diameter(mm) Air discharge direction Key documents

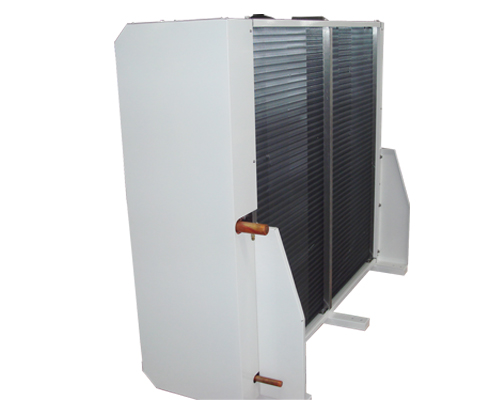

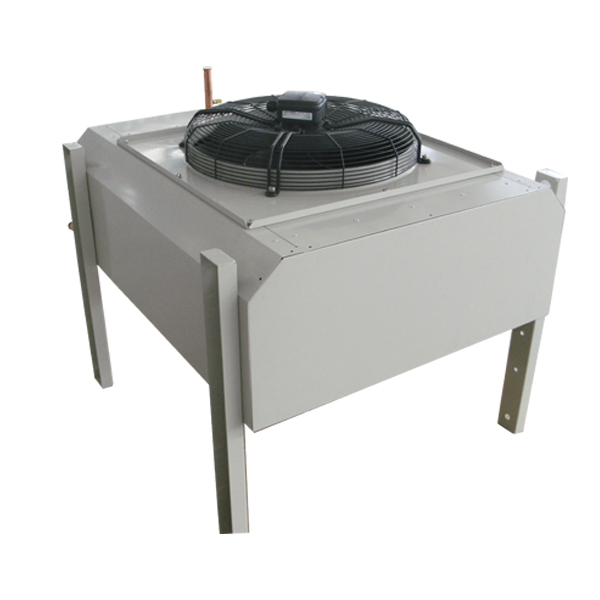

Plate Type Air Cooled Condenser SHSL-C1-010-1X350~C1-285-4X630 10~285 2819~64356 350~630 Vertical Brochure of SHSL-C1

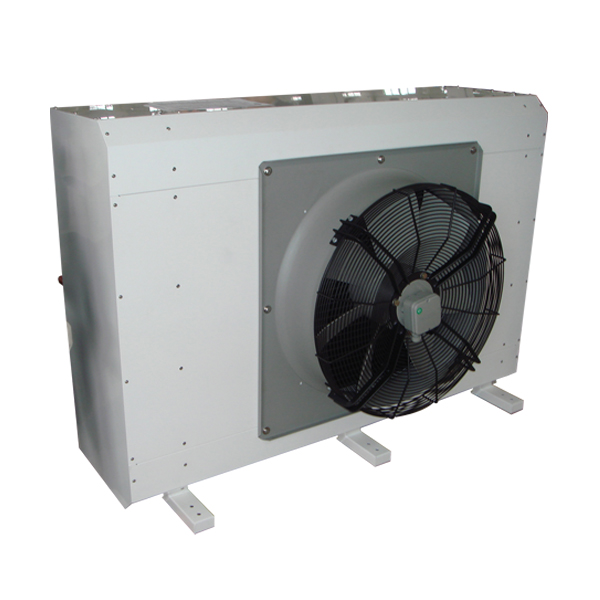

Horizontal

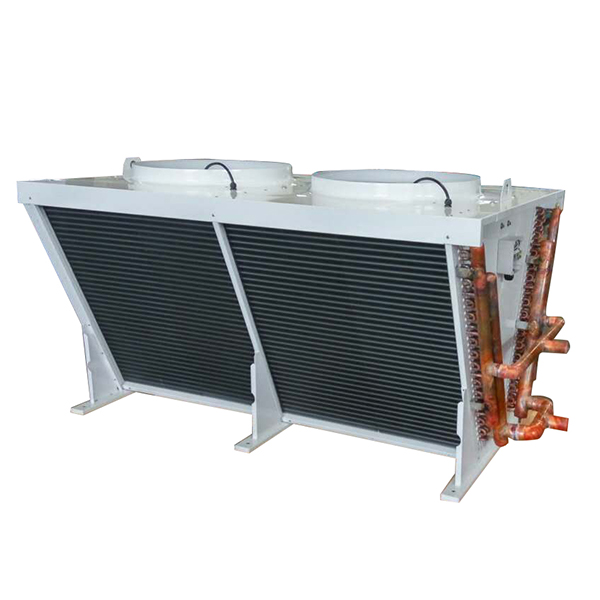

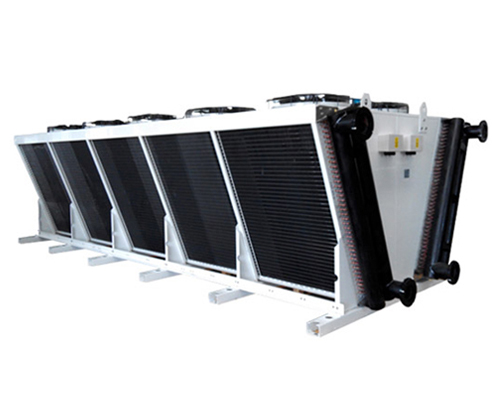

V Type Air Cooled Condenser SHSL-C2-268-4X630~C2-1427-20X630 268~1427 74478~366798 630 Vertical Brochure of SHSL-C2

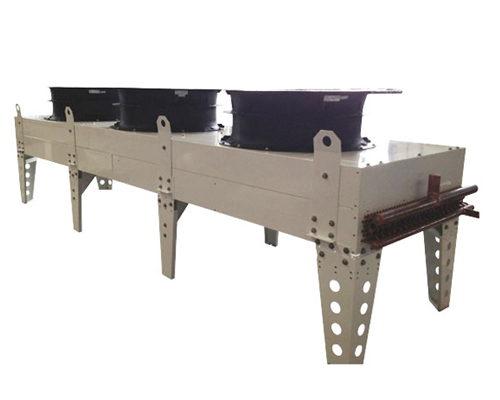

Plate Type Air Cooled Condenser SHSL-C3-062-1X800~C3-889-12X800 62~889 20950~238230 800 Vertical Brochure of SHSL-C3

Case/Application
Case 1: used in chemical plant. Case 2: used in chemical plant. Refrigerant: ethylic acid(flow: 372 ton/h) Case 3: used in communication station as air conditioner outdoor unit in China. Case 4: used in communication station as air conditioner outdoor unit
Case 5: used in garbage gisposal incinerator. Refrigerant: steam(flow: 69ton/h) Case 6: used in a power plant in Iraq Case 9: used in ore yard in Russia. Case 10: special designed to match the fruit and vegetable freezer for Singapore client.



Air Cooled Condenser, Outdoor Condensing Unit, Outdoor Condenser, Remote Condenser
Total 1 Page 7 records
