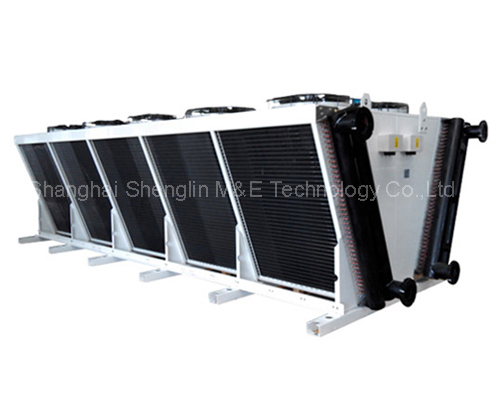

Air Cooled Condenser SHSL-C2 Series
  • Air Cooled Condenser SHSL-C2 Series
  • Air Cooled Condenser SHSL-C2 Series
  • Air Cooled Condenser SHSL-C2 Series
  • Air Cooled Condenser SHSL-C2 Series

Air Cooled Condenser SHSL-C2 Series

We're here to help Easy ways to get the answers you need.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification

Air discharge direction

Performance ranges

Cooling capacity: from 268 to 1478 kw
Air volume: from 74478 to 366798 m3/h
Sound pressure level: from 64 to 73 dB A(10m)
Air cooled condensers:customized on demand

High efficiency heat exchanger

Capacity designs for maximizing the heat transfer relative to the energy consumption of the fan.
Tube and tube coupling design for low pressure drop in the coil on the media sides(maximum 100KPa at water designing condition).
Our thermodynamic and aerodynamic designing software is long year tested and proved in Germany

Fan

Only choose low specific energy consumption fans.
Fan nozzle designs for maximum air flow and air throw.
Our fans from the world`s leading manufacturer are practically proved to be reliable in operation and long lasting.
Motor: protection class IP 54 and insulation class F.
Voltage:400V/3N/50Hz
Air separator for each fan.

Testing

Heat exchangers are supplied clean and tested at a pressure of 30 bars

Options

Coil design refrigerant: R414A, R407C.
Multiple circuits.
Sub-cooling circuits.
Stainless steel or aluminum casing.
Coated aluminum or copper fins and anti-corrosion expoxy fin.
Explosion ploof motor.
Customized fin spacing.


Technical parameter
Air cooled condenser SHSL-C2 series parameter(fin space 2.1mm)



Type

SHSL-C2-268-4X630

SHSL-C2-302-4X630

SHSL-C2-326-4X630

SHSL-C2-396-6X630

SHSL-C2-446-6X630

SHSL-C2-482-6X630

SHSL-C2-534-8X630

SHSL-C2-601-8X630

SHSL-C2-649-8X630

SHSL-C2-681-10X630

Capacity

R404A

KW

268.2

302.0

325.9

395.5

446.2

482.4

533.7

601.3

649.4

680.6

Y

230.2

254.5

270.79

340.20

376.90

407.79

458.50

507.04

539.90

579.70

R22

263.1

294.3

315.5

389.2

435.9

468.1

506.9

570.9

616.0

636.9

Y

224.50

246.30

260.20

332.60

365.50

386.90

436.58

482.00

512.00

543.00

Air flow

M3/h

74478

72577

70496

111721

108870

105750

148958

145155

140993

186200

Y

57259

55491

53861

85892

83240

80795

114520

110983

107723

143145

W

11.0

11.0

11.0

16.5

16.5

16.5

22.0

22.0

22.0

27.5

Y

7.0

7.0

7.0

10.5

10.5

10.5

14.0

14.0

14.0

17.5

A

20.4

20.4

20.4

30.6

30.6

30.6

40.8

40.8

40.8

51.0

Y

12.0

12.0

12.0

18.0

18.0

18.0

24.0

24.0

24.0

30.0

Sound pressure level

dB(A)

64





66





67





68

Y

10m

57





59





60





61

Dimension

L

mm

2186





3186





4186





5186

H

mm

1874

1874

1874

1874

1874

1874

1874

1874

1874

1874

D

mm

2100

2100

2100

2100

2100

2100

2100

2100

2100

2100

D1

mm

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

L1

mm

963

963

963

963

963

963

963

963

963

963

L2

mm

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

L3

mm

1963

1963

1963

2963

2963

2963

3963

3963

3963

4963

Inlet φ

mm

2X41.28

2X41.28

2X41.28

2X53.98

2X53.98

2X53.98

2X53.98

2X66.67

2X66.67

2X66.67

Inlet φ

mm

2X28.58

2X28.58

2X28.58

2X34.93

2X34.93

2X34.93

2X34.93

2X41.28

2X41.28

2X41.28

Product weight(empty)

kg

762

805

847

1125

1188

1252

1489

1576

1660

1852

Type

SHSL-C2-775-10X630

SHSL-C2-829-12X630

SHSL-C2-928-12X630

SHSL-C2-973-14X630

SHSL-C2-1083-14X630

SHSL-C2-1149-16X630

SHSL-C2-1233-16X630

SHSL-C2-1299-18X630

SHSL-C2-1375-18X630

SHSL-C2-1427-20X630

Capacity

R404A

KW

775.0

829.1

928.0

974.4

1082.7

1149.4

1233.2

1298.6

1374.5

1427.2

Y

648.50

706.10

779.30

830.80

908.80

971.50

1038.50

1098.63

1076.60

1209.00

R22

723.0

775.1

860.9

909.5

1007.2

1076.2

1144.2

1214.4

1271.2

1337.9

Y

606.90

660.50

724.00

776.20

845.93

909.70

964.90

1027.90

998.00

1133.50

Air flow

M3/h

177751

223424

213303

260657

248450

293756

283947

330471

31452

366798

Y

135639

171767

162766

200391

189475

224681

216543

252761

243616

280378

Fan

No X φ

2x5x630

2x6x630

2x6x630

2x7x630

2x7x630

2x8x630

2x8x630

2x9x630

2x9x630

2x10x630

Fan Motor
3 phase/400V/50Hz

W

27.5

33.0

33.0

38.5

38.5

44.0

44.0

49.5

49.5

55.0

Y

17.5

21.0

21.0

24.5

24.5

28.0

28.0

31.5

31.5

35.0

A

51.0

61.2

61.2

71.4

71.4

81.6

81.6

91.8

91.8

102.0

Y

30.0

36.0

36.0

42.0

42.0

48.0

48.0

54.0

54.0

60.0

Sound pressure level

dB(A)

68

69

69

70

70

71

71

72

72

73

Y

10m

61

62

62

63

63

64

64

65

65

66

Dimension

L

mm

5186

6186

6186

7186

7186

8186

8186

9186

9186

10186

H

mm

1874

1874

1874

1874

1874

1874

1874

1874

1874

1874

D

mm

2100

2100

2100

2100

2100

2100

2100

2100

2100

2100

D1

mm

2000

2000

2000

2000

2000

2000

2000

2000

2000

2000

L1

mm

963

963

963

963

963

963

963

963

963

963

L2

mm

1000

1000

1000

1000

1000

1000

1000

1000

1000

1000

L3

mm

4963

5963

5963

6963

6963

7963

7963

8963

8963

9963

Inlet φ

mm

2x66.67

2x66.67

2x66.67

2x66.67

2x66.67

2x76.2

2x76.2

2x76.2

2x76.2

2x76.2

Inlet φ

mm

2x41.28

2x41.28

2x41.28

2x41.28

2x41.28

2x53.98

2x53.98

2x53.98

2x53.98

2x53.98

Product weight(empty)

kg

2180

2211

2605

2574

3247

3225

3709

3624

4187

4264



Process engineering, heat / power plant, power generation, chemical industry, air conditioning chiller, heat transformer, smelting, etc.. It is suitable for all equipment which needs heat dissipation and is installed in the open air.
