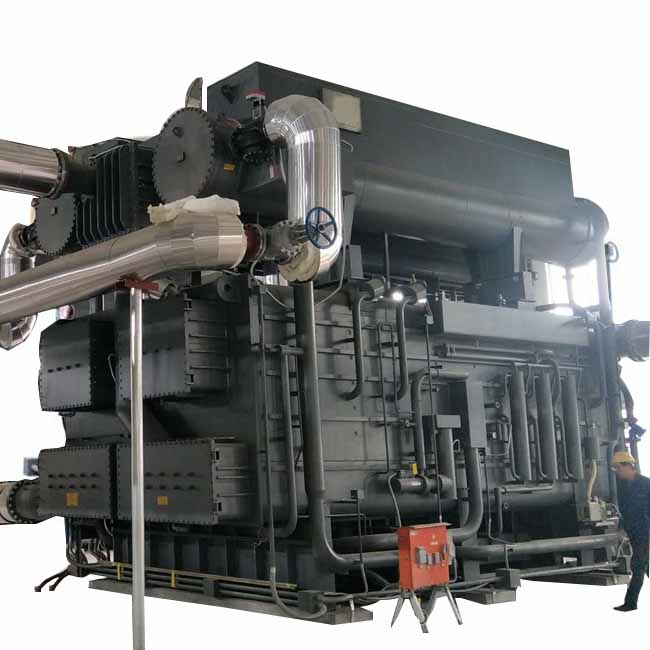

Absorption Chiller
Absorption Chiller Chinese Suppliers
  • Absorption Chiller Chinese Suppliers
  • Absorption Chiller Chinese Suppliers
  • Absorption Chiller Chinese Suppliers
  • Absorption Chiller Chinese Suppliers

Absorption Chiller Chinese Suppliers

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Function: Cooling in summer
Driving heat source: 0.4~0.8MPa Saturated Vapor
Cooling capacity: 300,000 kcal/h~10,000,000 kcal/h
Application field: Coking, textile, machinery manufacturing, petroleum, chemical industry and other industrial fields; cold, heat and power combined supply system.
Product series: ZXC

Specifications 〖ZXC Series〗 Steam pressure 0.6MPa

Item;ΣZXC-000



010MB

012MB

015MB

018MB

021MB

025MB

030MB

033MB

036MB

040MB

045MB

050MB

056MB

063MB

066MB

070MB



Capability



Cooling

KW

352

422

528

633

739

879

1055

1161

1266

1407

1583

1758

1969

2216

2321

2462

10⁴kcal/h

30

36

45

54

64

76

91

100

109

121

136

151

169

191

200

212

USRT

100

120

150

180

210

250

300

330

360

400

450

500

560

630

660

700



cold water

Inlet temperature-
Outlet temperature

12.0→7.0

flow

M³/h

60.5

72.6

90.7

108.9

127.0

151.2

181.4

199.6

217.7

241.9

272.2

302.4

338.7

381.0

399.2

423.4

Pressure loss

kPa

29.7

43.8

34.1

51.7

26.7

33.6

53.0

26.9

28.3

37.8

51.0

41.9

53.6

68.6

33.0

34.7

Water retention

0.11

0.13

0.16

0.18

0.21

0.28

0.32

0.35

0.37

0.41

0.45

0.59

0.65

0.71

0.75

0.79



Cooling water

Inlet temperature-
outlet temperature

32.0→37.5

flow

M³/h

95.0

114.0

142.5

171.0

199.5

237.5

285.0

313.5

342.0

380.0

427.5

475.0

532.0

598.5

627.0

665.0

Pressure loss

kPa

42.3

47

47

61.8

46.7

37.7

59

35.2

37

49.1

66

48.9

59.4

76.2

49.02

51.6

Water retention

0.29

0.33

0.40

0.48

0.52

0.81

0.90

1.00

1.06

1.13

1.22

1.68

1.85

1.99

2.03

2.14



Steam

Steam volume

kg/h

379

455

569

682

796

948

1.138

1.254

1.365

1.517

1.707

1.896

2.124

2.389

2.508

2.655

Inlet pressure

MPa(G)

0.6(saturation)

Condensate outlet temperature

90.0



Electric

Voltage • Phase • Frequency

V•Φ•Hz

380V•3Ph•50Hz

Total motor capacity

kW

1.7

1.7

1.7

2.8

2.8

2.8

2.8

3.6

3.6

3.8

3.8

5.6

8.1

8.1

8.1

8.1

Supply power capacity

kVA

5.2

5.2

5.2

7.4

7.4

7.4

7.4

8.7

8.7

9

9

11.9

16.1

16.1

16.1

16.1

Supply power current

A

8.6

8.6

8.6

11.9

11.9

11.9

11.9

13.9

13.9

14.4

14.4

18.8

25.2

25.2

25.2

25.2



Connect pipe diameter

Cold water inlet

DN

100

125

125

150

150

200

200

200

200

200

200

200

250

250

250

250

Cooling water inlet and outlet

DN

125

125

125

150

150

200

200

250

250

250

250

250

300

300

300

300

Steam inlet

DN

50

50

50

65

65

65

65

65

65

65

100

100

100

100

100

100

Condensate outlet

DN

25

25

25

32

32

32

32

40

40

40

50

50

50

50

50

50



Equipment Specifications

Length(L)

mm

3096

3256

3732

4318

4923

3991

4538

5323

5323

5823

6423

4544

4863

5363

5917

5917

Width(W)

mm

1805

1805

1805

1805

1805

2329

2329

2320

2320

2320

2320

2912

2912

2912

2912

2912

Height(H)

mm

1885

1885

1885

1885

1885

2139

2139

2139

2139

2139

2139

2719

2719

2719

2719

2719

Operating Weight

t

5.2

5.4

6.0

7.4

8.2

10.2

11.5

12.5

13.2

14.6

15.8

18.9

20.5

22.2

23.3

24.5

Carrying weight

t

4.8

5.0

5.4

6.8

7.5

9.1

10.2

11.2

11.8

13.0

14.2

16.7

18.0

19.5

20.5

21.6


Specifications 〖ZXC Series〗 Steam pressure 0.6MPa

Item;ΣZXC-000



083MB

090MB

100MB

116MB

132MB

150MB

165MB

180MB

200MB

232MB

264MB

300MB

330MB



Capability



Cooling

KW

2919

3165

3517

4080

4642

5275

5803

6330

7034

8159

9285

10551

11606

10⁴kcal/h

251

272

302

351

400

454

500

544

605

702

798

907

998

USRT

830

900

1000

1160

1320

1500

1650

1800

200

2320

2640

3000

3300



Cold water

Inlet temperature-
Outlet temperature

12.0→7.0

Flow

M³/h

502.0

544.3

604.8

701.6

798.3

907.2

997.9

1088.6

1209.6

1403.1

1596.7

1814.4

1995.8

Pressure loss

kPa

51.4

58.0

61.1

33.5

43.4

40.9

50.7

29.2

41.1

62.7

43.0

62.9

82.8

Water retention

0.89

1.30

1.37

1.54

1.72

2.01

2.16

2.40

2.66

3.09

3.51

3.99

4.39



Cooling water

Inlet temperature-
outlet temperature

32.0→37.5

flow

M³/h

788.5

855.0

950.0

1102.0

1254.0

1425.0

1567.5

1710.0

1900.0

2204.0

2508.0

2850.0

3135.0

Pressure loss

kPa

71.3

76.095

80.1

60.8

81.8

79.6

98.5

44.5

57.4

81

59.5

81.3

102.9

Water retention

2.46

3.36

3.54

3.99

4.34

5.03

5.35

6.07

6.75

7.82

8.90

10.12

11.13



Steam

Steam volume

kg/h

3.148

3.420

3.792

4.399

5.006

5.689

6.257

6.822

7.580

8.793

10.006

11.370

12.507

Inlet pressure

MPa(G)

0.6(saturation)

Condensate outlet temperature

90.0



Electric

Voltage • Phase • Frequency

V•Φ•Hz

380V•3Ph•50Hz

Total motor capacity

kW

8.1

9.7

9.7

9.7

11.6

13.4

13.4

15.3

18.1

18.1

23.5

23.5

28.2

Supply power capacity

kVA

16.1

20.6

20.6

20.6

24.2

27.1

27.1

31.7

35.3

35.3

49.8

49.8

55.3

Supply power current

A

25.2

32

32

32

37.4

41.8

41.8

49.1

61.2

61.2

76.9

76.9

89.3



Connect pipe diameter

Cold water inlet

DN

250

300

300

300

350

400

400

400

450

450

500

500

600

Cooling water inlet and outlet

DN

350

350

350

400

400

450

450

450

500

600

600

600

600

Steam inlet

DN

125

125

125

125

125

150

150

150

200

200

200

200

200

Condensate outlet

DN

65

65

65

65

65

65

65

65

80

80

80

80

80



Equipment Specifications

Length(L)

mm

6738

6068

6068

6968

7768

7618

8218

8402

9302

10505

9415

10575

11475

Width(W)

mm

2912

3620

3620

3620

3620

3821

3521

4180

4180

4180

4375

4375

4375

Height(H)

mm

2719

3246

3246

3246

3246

3631

3631

4134

4134

4134

4774

4774

4774

Operating Weight

t

27.9

33.4

35.2

40.1

45.5

50.0

53.4

59.8

66.4

77.1

87.7

99.6

109.6

Carrying weight

t

24.5

28.8

30.3

34.6

39.5

43.0

45.9

51.3

57.0

66.1

75.3

85.5

94.1


Note:
1. The performance tolerance and the coefficient of cold water and cooling water fouling are based on GB / T 18431 (the latest version).
2. The operating range is 10 ~ 100%.
3. When the steam supply pressure exceeds the rated pressure of 0.6MPa, a pressure reducing valve should be installed.
4. When the superheat of the supplied steam exceeds 10℃, a cooling device should be installed.
5. The maximum operating pressure of cold water and cooling water system is 0.6MPa (Gauge), the maximum operating pressure of steam system is 0.6MPa (Gauge)
6. During the initial start-up process, when the cooling water temperature is not lower than 15℃, it can be safely started.
7. The minimum cooling water temperature can correspond to 10℃. (Optional)
8. The parameters in this table will be changed due to product improvement without prior notice.
Coking, textile, machinery manufacturing, petroleum, chemical industry and other industrial fields; cold, heat and power combined supply system

Country:China
Application: energy saving of epoxy acetylene and ethylene glycol plant / capacity expansion of epoxy acetylene
Product: hot water type chiller
Cooling capacity: 12, 310kW
Cooling water: large circulating water system
Surplus hot water: process hot water

Country:China
Application: thermal power plant
Product: steam type absorption heat pump unit
The project uses 3 34MW steam-type absorption heat pumps, powered by steam turbine extraction, to recover waste steam waste heat, forming a heating capacity of 2 million square meters
