Fin Heat Exchanger

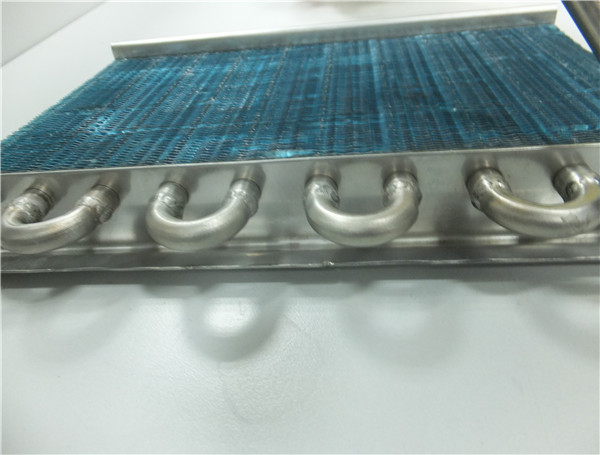

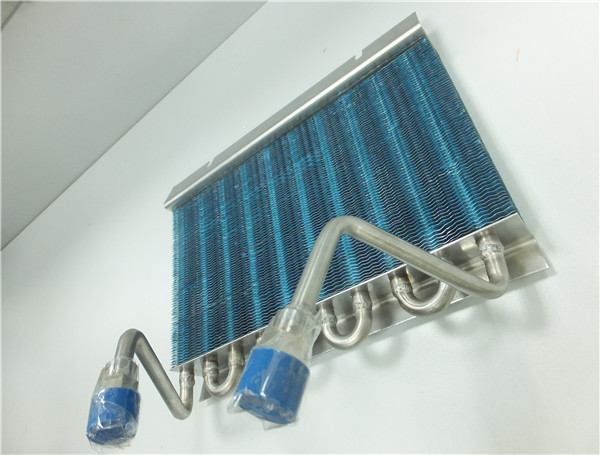

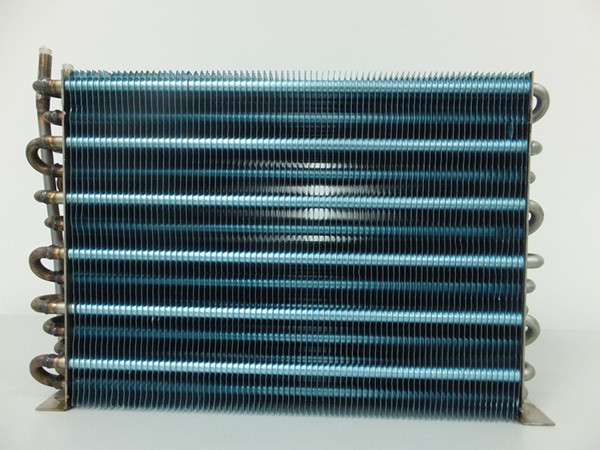

Stainless Steel Tube With Blue Fin Heat Exchanger
  • Stainless Steel Tube With Blue Fin Heat Exchanger
  • Stainless Steel Tube With Blue Fin Heat Exchanger
  • Stainless Steel Tube With Blue Fin Heat Exchanger
  • Stainless Steel Tube With Blue Fin Heat Exchanger

Stainless Steel Tube With Blue Fin Heat Exchanger

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference

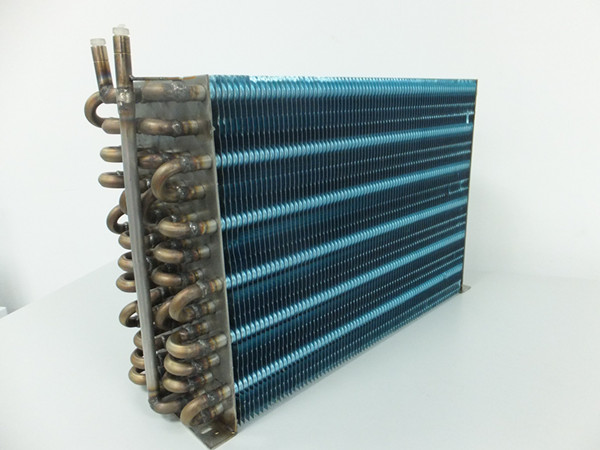

Stainless Steel Tube with Blue Fin Heat Exchanger use for dairy, food, chemicals & pharma

CONSTRUCTION
Tubes
Stainless steel tube AISI-316 or 304, specially manufactured for the coil's construction with thickness from 0,5mm to 1mm.

Fins

Corrugated fins with auto-separation collar, covering all the tube surface maximising the global inter change and adjusting the fin's

spacing (from 1,8 mm to 12 mm). These can be manufactured in aluminium, pre-coated aluminium, copper or stainless steel.

All these materials can be coated by the electrophoresis treatment for corrosive ambient.

Casing

This is built from galvanized steel, aluminium or stainless steel. The structure is totally riveted between the frames, top and bottom
sides, this gives a rigid and compact coil.
The perforations for the accommodation tubes are with protection collars for avoiding fractures.

Headers

The headers are manufactured totally in stainless steel. For direct expansion coils, the distributors and capillary are also in stainless steel.

Welding

TIG, without any material addition; this guarantee the circuit hold back and the perfect welding.

Test

The pressure testing is made to all coils, with dried air at 38kg/cm2 and submerged in a water to verify are not leakages.
All coils evaporators and condensers are charged with pressure and provided with a shell for verifying in the reception.
A quality stamp certufy the test and hold back of each coil and allow the perfect draw up of the product assigned reference number and manufacturing.

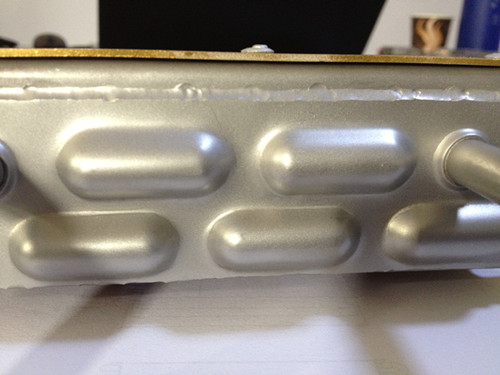

Welding surface can be sandblasted



Argon-arc welding:TIG











Fin heat exchanger application

1: Used in AHU(air handlign unit)

2: Used in air source heat pump

3: Used in FCU(fan coil unit)

4: Used in ice maker

空调箱应用

热泵应用

风机盘管应用

制冰机应用

5: Used in household split air conditioner

6: Used in cabinet

7: Used in air cooled chiller.

8: Used in dehumidifier.

家用空调应用

机柜应用

冷水机应用

除湿机应用









9: Used in beauty laser equipment.

10: Used in bus air conditioner.

11: Used in air cooled condensing unit.

12: Used in island counter or deep freezer

激光美容仪应用

大巴空调应用

冷凝机组应用

岛柜应用
