Fin Condenser

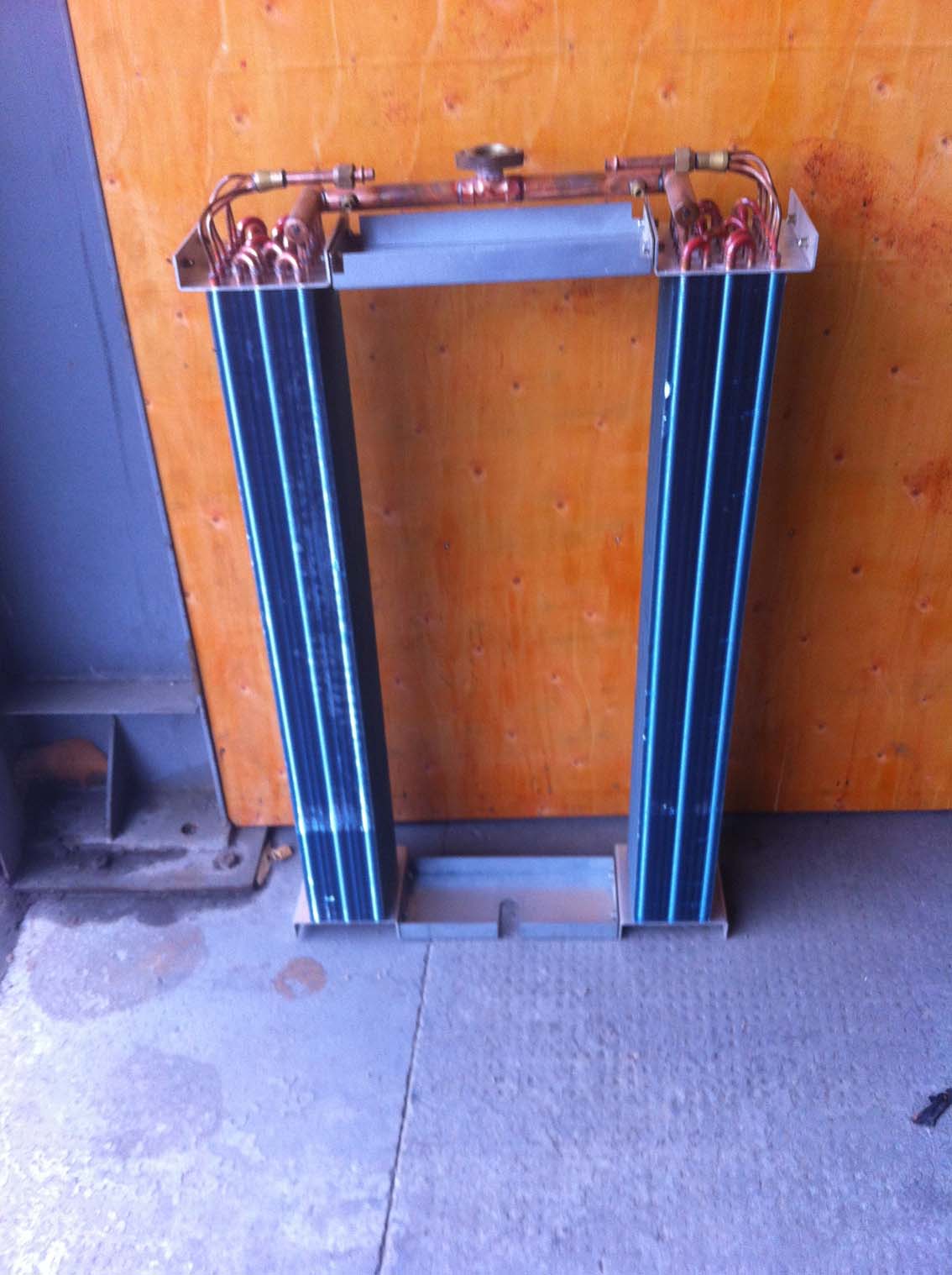

Bus Ac Condenser and Evaporator
  • Bus Ac Condenser and Evaporator
  • Bus Ac Condenser and Evaporator
  • Bus Ac Condenser and Evaporator
  • Bus Ac Condenser and Evaporator

Bus Ac Condenser and Evaporator

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
● AC  Condenser
● Copper tube:7mm,7.94mm,9mm,9.52mmetc
● Fin: corrugated, flat , louver fin
● Certificate:ROHS, ISO.


Feature:
1. fin type: louver fin or flat fin or corrugated fin
2. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
3. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
4. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
5. different alternative condensing fans available: shaded pole or outer rotor fan motor.
6.did gas examination under 3.0Mpa air pressure to ensure the tightness.
7.widely used in refrigeration industry, cold room and other cooling system.
8. we can supply products as per customized samples or drawing.

Procedure:
Mold of Copper tube&aluminum fin/copper fin

Fin Pattern Copper Tube O.D.(mm) Row Space(mm) Hole Space(mm) Fin Thickness(mm)

Fin Space(mm)
Flat fin Sine wave with blade fin Smooth sine wave fin Window fin Sesamoid fin
A 7 12.7 21 0.105 / / 1.3 1.3 /
B 7 13.2 17.6 0.105 / / 1.3 1.3 /
C 7 12.7 20.4 0.105 / / 1.3~1.8 1.3~1.8 /
D 7 12.7 19.05 0.105 / / 1.3~1.8 1.3~1.8 /
E 7.94 15.88 25.4 0.105 1.8~3.0 1.8~3.0 1.8~3.0 1.8~3.0 /
E 7.94 19.05 22 0.105~0.13 1.4~3.0 1.4~3.0 1.4~3.0 1.4~3.0 /
F 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
G 9.52 22 25.4 0.18~0.4 3.5~6.35 / / / /
H 9.52 21.65 25 0.105~0.18 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
I 9.52 21.65 25 0.15~0.24 3.2~6.35 3.2~6.35 3.2~6.35 / /
J 12.75 27.5 31.75 0.115~0.15

1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
K 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /
L 15.88 34.64 40 0.115~0.15 / 2.6~3.5 2.6~3.5 / /

Mold of Stainless steel tube&aluminum fin/copper fin

Fin Pattern Stainless steel Tube O.D.(mm) Row Space(mm) Hole Space(mm) Fin Thickness(mm)

Fin Space(mm)
Flat fin Sine wave with blade fin Smooth sine wave fin Window fin Sesamoid fin
A 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
B 9.52 16.5 19.05 0.105~0.115 1.4~2.5 1.4~2.5 1.4~2.5 / /
C 12.75 27.5 31.75 0.115~0.15

1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
D 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /


1.Used for combined air handling unit, fan coil etc air conditioning devices

2.Used for heat transfer in cold storage and all kinds of low temperature systems

3.
Used of energy recovery and low temperature system devices

4.Used for dry operation condition, fresh air dehumidification etc systems

5.
Used for industry and commerce air conditioning system

6.
Used for vehicle and vessel etc transportation devices

Pictures for Ac Condenser







Fin heat exchanger application

1: Used in AHU(air handlign unit)

2: Used in air source heat pump

3: Used in FCU(fan coil unit)

4: Used in ice maker

空调箱应用

热泵应用

风机盘管应用

制冰机应用

5: Used in household split air conditioner

6: Used in cabinet

7: Used in air cooled chiller.

8: Used in dehumidifier.

家用空调应用

机柜应用

冷水机应用

除湿机应用









9: Used in beauty laser equipment.

10: Used in bus air conditioner.

11: Used in air cooled condensing unit.

12: Used in island counter or deep freezer

激光美容仪应用

大巴空调应用

冷凝机组应用

岛柜应用
