Fin Condenser
Air Cooled Condenser
  • Air Cooled Condenser
  • Air Cooled Condenser
  • Air Cooled Condenser
  • Air Cooled Condenser

Air Cooled Condenser

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference

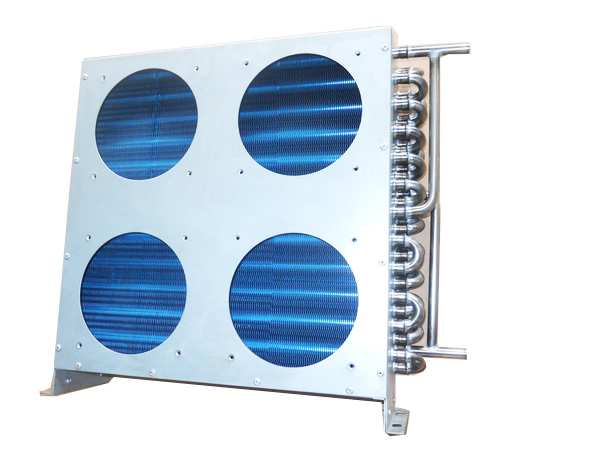

Air Cooled Condenser
● Copper tube Dia.7mm,7.94mm, 9mm,9.52mm
● Aluminum fin type: flat,corrugated, louver.

Feature:
1. material :copper , aluminum ,galvanized plate
2. aluminum foil: hydrophilic or bare
3. fin type: louver fin or flat fin or corrugated fin
4. copper pipe: diameter 7mm or 8mm or 9.52mm ,grooved or smooth tube
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. suitable for R134A, R22, R404A, R407C refrigerant and so on
8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.widely used in refrigeration industry, cold room and other cooling system.
12. we can supply products as per customized samples or drawing.

Fuel Cells:

A - Cooling Electrical convertors of wind power and Photovoltaic systems.
B- All heat exchanging needs in the Milk industry.

Abilities:

We can manufacture in a variety of tube diameters in 3/8" (9.53mm) and 7mm and others upon request.
3/8" tube is suitable for high capacities and high flow rates.
7mm tube is suitable for low capacities and low flow rates of the refrigerants. Which enables to get higher efficiency in a reduced volume.

Structure:

A - Upper assembly welded plate cartridge style to maintain the continuous flow while taking advantage of as small valium as possible.
B - Return bands system enabling the continuous flow.
Fin Type Copper Tube O.D.
(mm)
Row Space
(mm)
Hole Space
(mm)
Fin Thickness
(mm)
Fin Space
(mm)
Flat fin Sine wave
with blade fin
Smooth sine wave fin Window fin Sesamoid fin
A 7 12.7 21 0.105 / / 1.3 1.3 /
B 7 13.2 17.6 0.105 / / 1.3 1.3 /
C 7 12.7 20.4 0.105 / / 1.3~1.8 1.3~1.8 /
D 7.94 15.88 25.4 0.105 1.8~3.0 1.8~3.0 1.8~3.0 1.8~3.0 /
E 7.94 19.05 22 0.105~0.13 1.4~3.0 1.4~3.0 1.4~3.0 1.4~3.0 /
E 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
F 9.52 22 25.4 0.18~0.4 3.5~6.35 / / / /
G 9.52 21.65 25 0.105~0.18 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
H 9.52 21.65 25 0.15~0.24 3.2~6.35 3.2~6.35 3.2~6.35 / /
I 12.75 27.5 31.75 0.115~0.15 1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
J 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /
K 15.88 34.64 40 0.115~0.15 / 2.6~3.5 2.6~3.5 / /
Item
Heat exchanger Type
Operation medium
Operation pressure (MPa)
Application
1
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Cold/hot water
1.6
Used for combined air handling unit, fan coil etc air conditioning devices
2
Φ18/Φ20 Steel pipe winding with steel sheet
Steam
0.2
Used for combined air handling unit, fan coil etc air conditioning devices
3
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Brine
1.6
Used for heat transfer in cold storage and all kinds of low temperature systems
4
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
Ethylene glycol
1.6
Used of energy recovery and low temperature system devices
5
Φ16 Copper tube with aluminium fin
Ice mud
1.6
Used for dry operation condition, fresh air dehumidification etc systems
6
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R22
1.9
Used for industry and commerce air conditioning system
7
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R407C
1.9
Used for industry and commerce air conditioning system
8
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R134a
3.1
Used for vehicle and vessel etc transportation devices

Fin heat exchanger application

1: Used in AHU(air handlign unit)

2: Used in air source heat pump

3: Used in FCU(fan coil unit)

4: Used in ice maker

空调箱应用

热泵应用

风机盘管应用

制冰机应用

5: Used in household split air conditioner

6: Used in cabinet

7: Used in air cooled chiller.

8: Used in dehumidifier.

家用空调应用

机柜应用

冷水机应用

除湿机应用









9: Used in beauty laser equipment.

10: Used in bus air conditioner.

11: Used in air cooled condensing unit.

12: Used in island counter or deep freezer

激光美容仪应用

大巴空调应用

冷凝机组应用

岛柜应用
