Brazed Plate Heat Exchanger
China Brazed Heat Exchanger Manufacturer
  • China Brazed Heat Exchanger Manufacturer
  • China Brazed Heat Exchanger Manufacturer
  • China Brazed Heat Exchanger Manufacturer
  • China Brazed Heat Exchanger Manufacturer

China Brazed Heat Exchanger Manufacturer

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
1. Compact structure: adopt thin stainless steel, high heat transfer factors.
2. Reliability: adopt 316L and copper as well as high quality brazing works. Endure high pressure and temperature. Long life and no maintenance need.
3. Reduce water require: with the high great transfer efficiency, only need 1/3 water usage compare to shell and tube heat exchanger under same condition.
4. Lightly: only 20-30% weight compare to shell and tube heat exchanger and reduce the logistics cost.
5. Low fouling factors: high disorderly flow lower the fouling condition, reduce the maintain.
6. With distributor: in crease the refrigerant evaporating efficiency and reduce the risks by using the distributor to force the refrigerant flow direction.

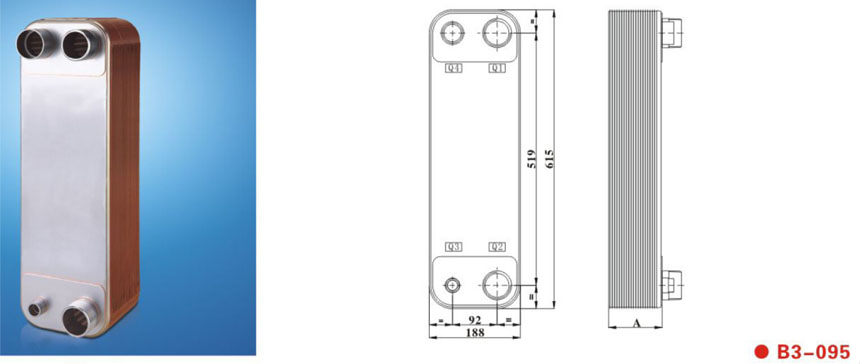

Model

Number of plates

A(mm)

Weight(kg)

Hold-up volume Q1Q2  Q3Q4

Heat exchange area

B3-095

n

11+2.4n

5.2+0.41n

0.21Xn/2  0.21X(n-2)/2

(n-2)X0.095


Products Description

Design Pressure

3.0MPa

4.5MPa

Test Pressure

4.5MPa

6.75MPa

Design Temperature

-196~+200℃

Type of Channels

H

Max.Welded Connection

2 1/8"

Max.Threaded Connection

2"

Max.Number of Plates

250




1. Air conditioning and HVAC industrial: As evaporator, condenser, super heater, sub cooler, heat recovery and economizer.
2. Chemical Industrial: Heating and cooling process, evap./cond. process.
3. Metallurgy industrial: Rolling mill, cast machine,exygen machine, hydraulic,/lubricant, cycle cooling water.
4. Power industrial: Transformer oil cooler, rtc.
5. Textile and paper industrial: Waste gas, liquid heat recovery.
