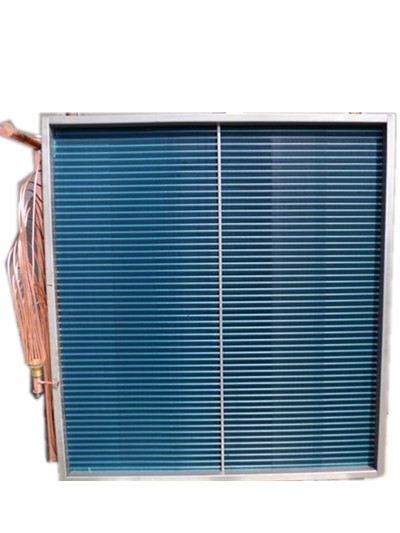

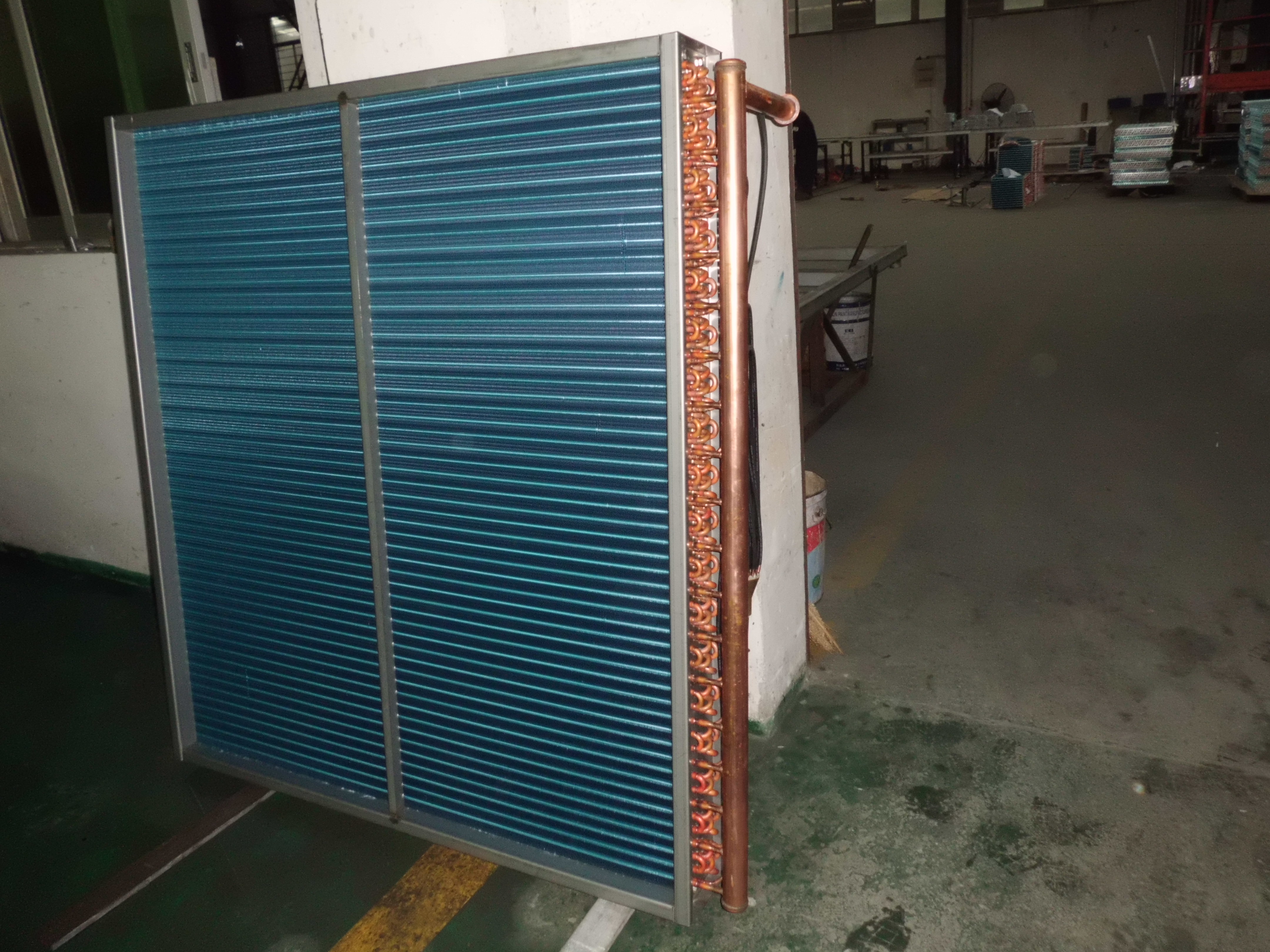

Heat pump evaporator:
1. Heat pump evaporators are designed and manufactured for heat pump.
2. We can also manufacture it mainly used in low-moderate cooling occasions, such as hospitals, clean rooms, ships,
chemical air conditioner, food, paper industry, tobacco and other factories or laboratories.

Specification:

1. Tube O.D.: 9.52mm.
2. Materials: copper tube aluminum fin;
3. Transport size is 1000*900*950mm.
3. This product welded depending on the material and application.
4. Heat exchanger outline size and shape: can be manufactured according to clients’ requirements.

Feature:
1. We can supply products as per customized samples or drawing.
2. suitable for R134A, R22, R404A, R407C refrigerant and so on
3. Fin type: louver fin or flat fin or corrugated fin
4. different alternative condensing fans available: shaded pole or outer rotor fan motor.
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.



Item Other Condenser  Type Operation  medium Operation  pressure (MPa) Application
1
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Cold/hot water 1.6
Used for combined air handling unit,  fan coil etc air conditioning devices
2
Φ18/Φ20 Steel pipe winding with steel sheet
Steam 0.2
Used for combined air handling unit,  fan coil etc air conditioning devices
3
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Brine 1.6
Used for heat transfer in cold storage  and all kinds of low temperature  systems
4
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
Ethylene glycol 1.6
Used of energy recovery and low  temperature system devices
5
Φ16 Copper tube with aluminium fin
Ice mud 1.6
Used for dry operation condition,  fresh air dehumidification etc systems
6
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R22 1.9
Used for industry and commerce air  conditioning system
7
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R407C 1.9
Used for industry and commerce air  conditioning system
8
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R134a 3.1
Used for vehicle and vessel etc  transportation devices


Mold of Copper tube&aluminum fin/copper fin

Fin Pattern Copper Tube O.D.(mm) Row Space(mm) Hole Space(mm) Fin Thickness(mm)

Fin Space(mm)
Flat fin Sine wave with blade fin Smooth sine wave fin Window fin Sesamoid fin
A 7 12.7 21 0.105 / / 1.3 1.3 /
B 7 13.2 17.6 0.105 / / 1.3 1.3 /
C 7 12.7 20.4 0.105 / / 1.3~1.8 1.3~1.8 /
D 7 12.7 19.05 0.105 / / 1.3~1.8 1.3~1.8 /
E 7.94 15.88 25.4 0.105 1.8~3.0 1.8~3.0 1.8~3.0 1.8~3.0 /
E 7.94 19.05 22 0.105~0.13 1.4~3.0 1.4~3.0 1.4~3.0 1.4~3.0 /
F 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
G 9.52 22 25.4 0.18~0.4 3.5~6.35 / / / /
H 9.52 21.65 25 0.105~0.18 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
I 9.52 21.65 25 0.15~0.24 3.2~6.35 3.2~6.35 3.2~6.35 / /
J 12.75 27.5 31.75 0.115~0.15

1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
K 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /
L 15.88 34.64 40 0.115~0.15 / 2.6~3.5 2.6~3.5 / /

Mold of Stainless steel tube&aluminum fin/copper fin

Fin Pattern Stainless steel Tube O.D.(mm) Row Space(mm) Hole Space(mm) Fin Thickness(mm)

Fin Space(mm)
Flat fin Sine wave with blade fin Smooth sine wave fin Window fin Sesamoid fin
A 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
B 9.52 16.5 19.05 0.105~0.115 1.4~2.5 1.4~2.5 1.4~2.5 / /
C 12.75 27.5 31.75 0.115~0.15

1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
D 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /

Heat pump evaporators are mainly used in low-moderate cooling occasions, such as hospitals, clean rooms, ships,
chemical air conditioner, food, paper industry, tobacco and other factories or laboratories.

Paking pictures for evaporators



Application:

Fin heat exchanger application

1: Used in AHU(air handlign unit)

2: Used in air source heat pump

3: Used in FCU(fan coil unit)

4: Used in ice maker

空调箱应用

热泵应用

风机盘管应用

制冰机应用

5: Used in household split air conditioner

6: Used in cabinet

7: Used in air cooled chiller.

8: Used in dehumidifier.

家用空调应用

机柜应用

冷水机应用

除湿机应用









9: Used in beauty laser equipment.

10: Used in bus air conditioner.

11: Used in air cooled condensing unit.

12: Used in island counter or deep freezer

激光美容仪应用

大巴空调应用

冷凝机组应用

岛柜应用
