Fin Evaporator

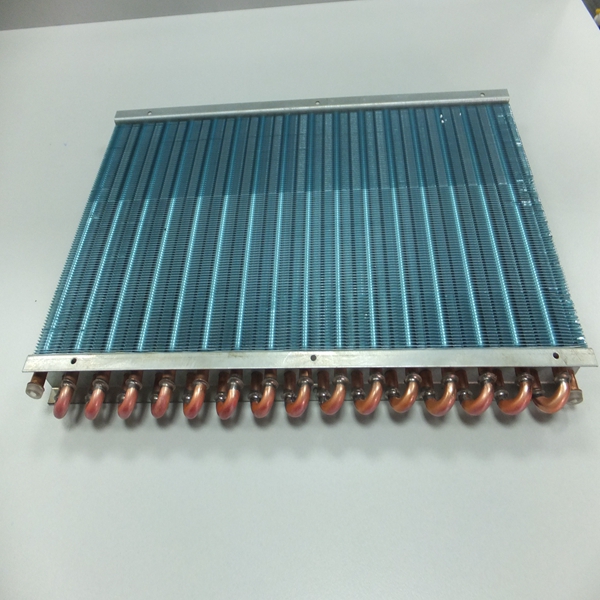

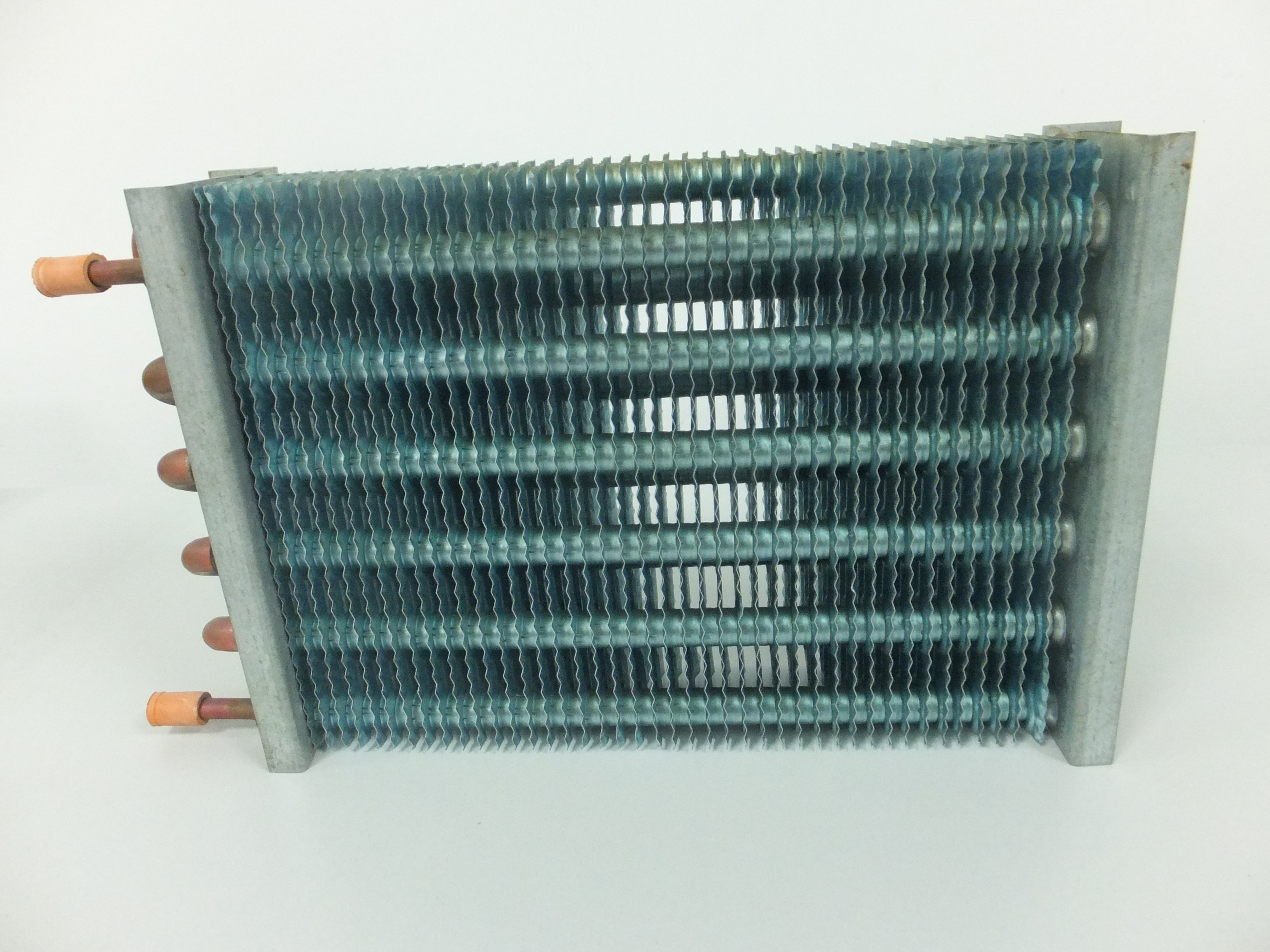

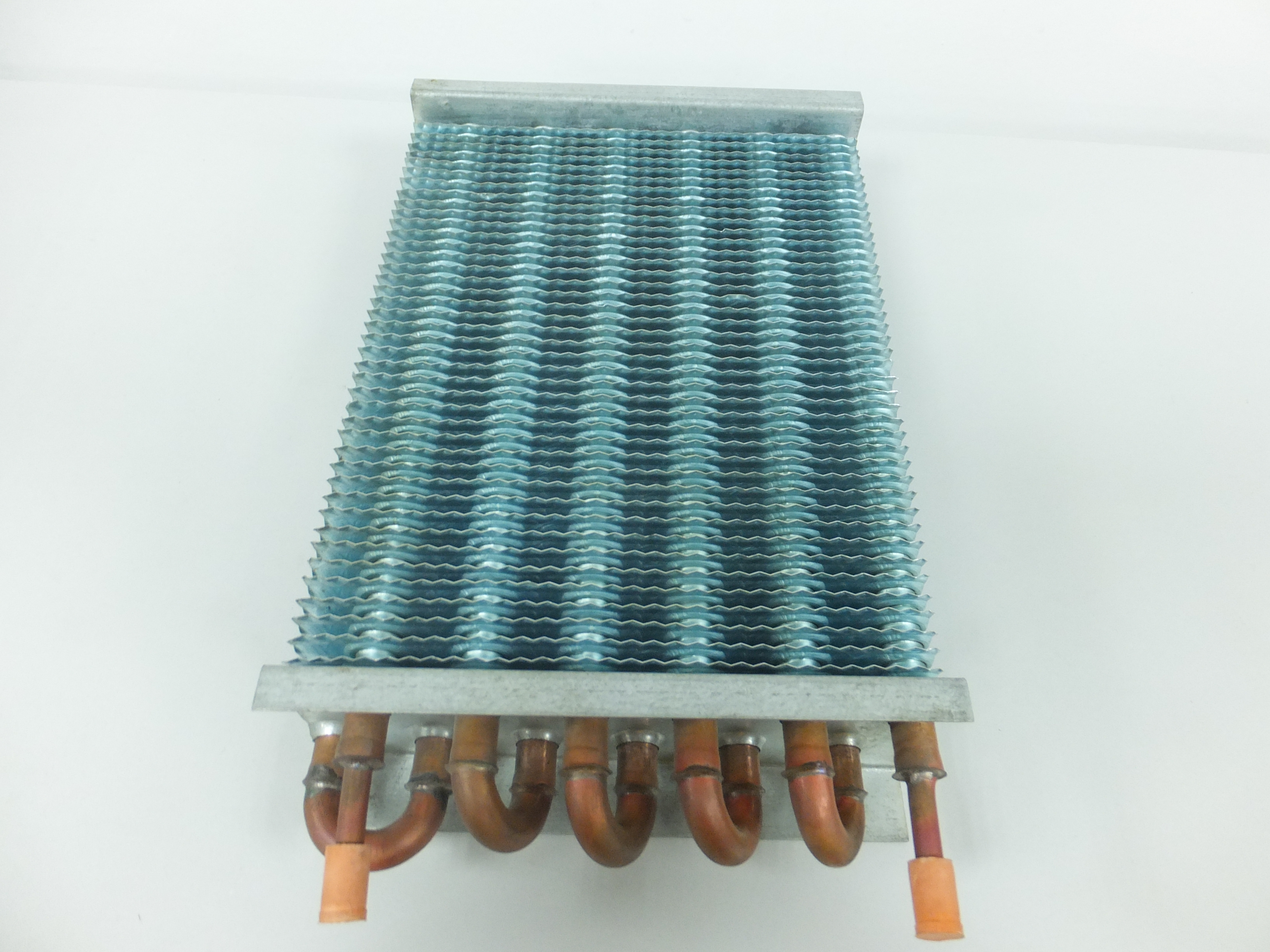

Cabinet air conditioner evaporator
  • Cabinet air conditioner evaporator
  • Cabinet air conditioner evaporator
  • Cabinet air conditioner evaporator
  • Cabinet air conditioner evaporator

Cabinet air conditioner evaporator

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
Cabinet air conditioner evaporator:
Cabinet air conditioner evaporators are mainly used in low-moderate cooling occasions, such as hospitals, clean rooms, ships, chemical air conditioner,
 food, paper industry,tobacco and other factories or laboratories.

Fin Tube evaporator

evaporator use in many industrial applications and it’s an important part in process, both in Cooling or Heating.
We design and manufacture many type of Radiators, for Low or High Temperature, used for many kind of process.



Item
 Evaporator Type
Operation  medium
Operation  pressure (MPa)
Application
1 Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Cold/hot water
≤1.6
Used for combined air handling unit,  fan coil etc air conditioning devices
2 Φ18/Φ20 Steel pipe winding with steel sheet
Steam
≤0.2
Used for combined air handling unit,  fan coil etc air conditioning devices
3 Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Brine
≤1.6
Used for heat transfer in cold storage  and all kinds of low temperature  systems
4 Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
Ethylene glycol
≤1.6
Used of energy recovery and low  temperature system devices
5 Φ16 Copper tube with aluminium fin
Ice mud
≤1.6
Used for dry operation condition,  fresh air dehumidification etc  systems
6 Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R22
≤1.9
Used for industry and commerce  air conditioning system
7 Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R407C
≤1.9
Used for industry and commerce  air conditioning system
8 Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R134a
≤3.1
Used for vehicle and vessel etc  transportation devices







Fin heat exchanger application

1: Used in AHU(air handlign unit)

2: Used in air source heat pump

3: Used in FCU(fan coil unit)

4: Used in ice maker

空调箱应用

热泵应用

风机盘管应用

制冰机应用

5: Used in household split air conditioner

6: Used in cabinet

7: Used in air cooled chiller.

8: Used in dehumidifier.

家用空调应用

机柜应用

冷水机应用

除湿机应用









9: Used in beauty laser equipment.

10: Used in bus air conditioner.

11: Used in air cooled condensing unit.

12: Used in island counter or deep freezer

激光美容仪应用

大巴空调应用

冷凝机组应用

岛柜应用
