Marine Type AC
Marine Split Type AC
  • Marine Split Type AC
  • Marine Split Type AC
  • Marine Split Type AC
  • Marine Split Type AC

Marine Split Type AC

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference

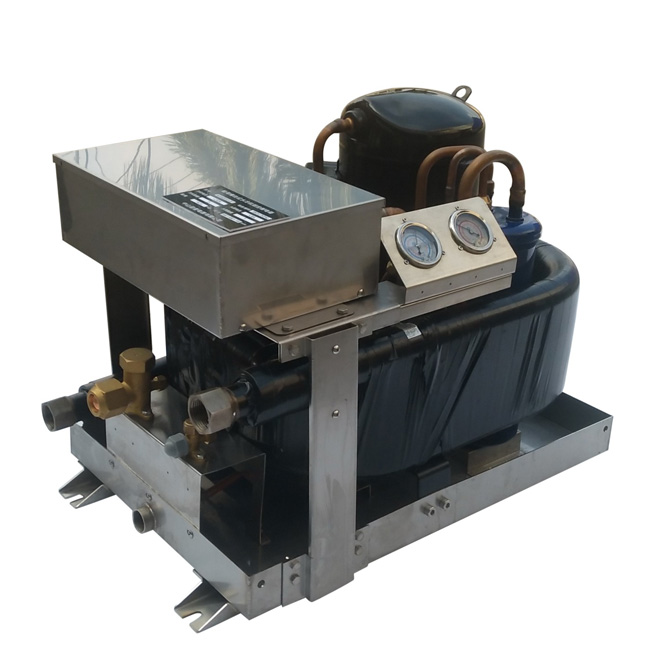

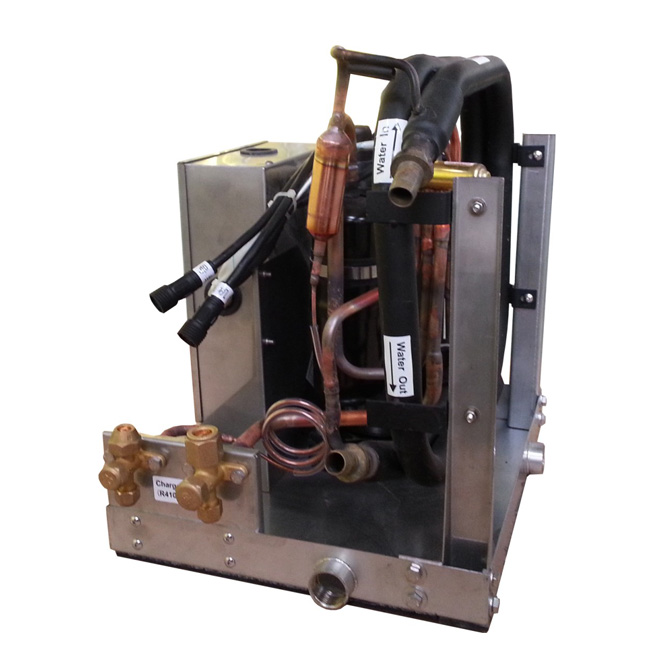

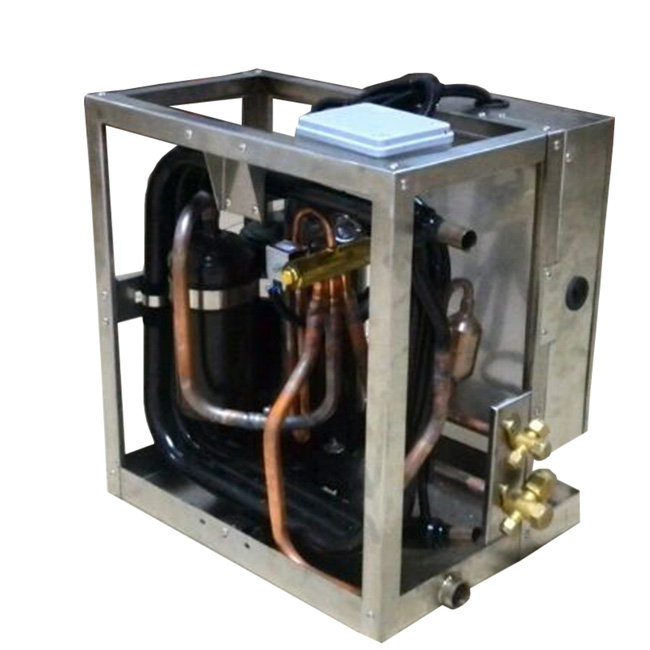

The split marine air conditioner consists of two parts: the outdoor unit  and the indoor unit. The indoor unit is light and low in noise. The fan can be installed in a 90-degree rotation according to the cabin conditions. The units use stainless steel sheet metal, corrosion-resistant and high-efficiency nickel-copper heat exchangers, and soft starters can be configured according to customer needs to reduce the current and voltage fluctuations of air conditioning startup.

Model

MC9-E2A

MC12-E2A

MC18-E2A

MC24-E2A

MC36-S2A/T

MC72-S2A/T

Power supply

Ph-V-Hz

1Ph/220V/50Hz

3Ph/380V/50Hz

Cooling

Capacity

BTU

9,000

12,000

18,000

24,000

36,000

48,000

Input power

W

620

840

1,060

1,260

2,600

4,300

Rated current

A

3.3

4.5

6.0

7.8

5.5

8.0

EER



4.2

4.1

4.1

4.1

4.0

4.0

Heating

Capacity

BTU

10,000

13,000

19,900

27,300

44,500

75,000

Input power

W

630

860

1,100

1,560

3,200

5,780

Rated current

A

3.5

4.6

6.6

8.7

6.3

9.5

COP



4.4

3.8

4.0

4.2

4.0

4.1

Max. current

A

4.8

6.3

9.0

10.2

7.6

12.2

Sea water flow

M3/h

0.64

0.85

1.2

1.7

2.8

4.7

Sea water pipe

mm

G1/2”-16

G3/4”-25

G1” inner grooved

Refrigerant type



R410a

Connecting pipe



1/4”,3/8”

1/2”,3/8”

5/8”,3/8”

5/8”,3/8”

5/8”,3/8”

7/8”,3/8”

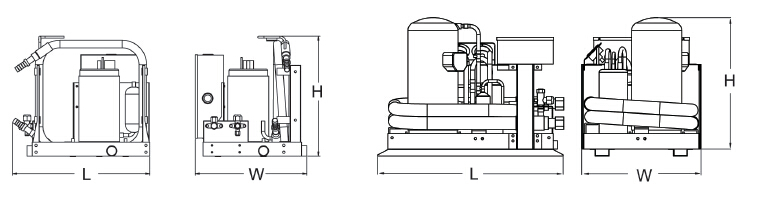

Dimension(L*W*H)

mm

397X323X347

397X315X387

462X322X410

472X322X450

664X436X495

662X436X490

Net weight

Kg

13

15

19

27

67

81

Noise level

dB(A)

≤50

≤50

≤50

≤50

≤55

≤55

Condensed water pipe

mm

G1/2-19

G3/4-25

Note: A 90 degree turn of the air supply hose will reduce the air volume by more than 25%. When installing, the air pipe should be shortened as much as possible, and the right-angle turn of the air pipe or air duct should be reduced


Floored Indoor Unit

Model

MA9-E2A

MA12-E2A

MA18-E2A

MA24-E2A

MA36-E2A

Power supply

Ph-V-Hz

1Ph/220V/50Hz

Cooling capacity

BTU

9,000

12,000

18,000

24,000

36,000

Heating capacity

BTU

10,000

13,300

20,100

27,500

43,900

Input power

W

140

140

200

360

680

Refrigerant type



R410a

Connecting pipe



1/4”,3/8”

1/2”,3/8”

5/8”,3/8”

5/8”,3/8”

5/8”,3/8”

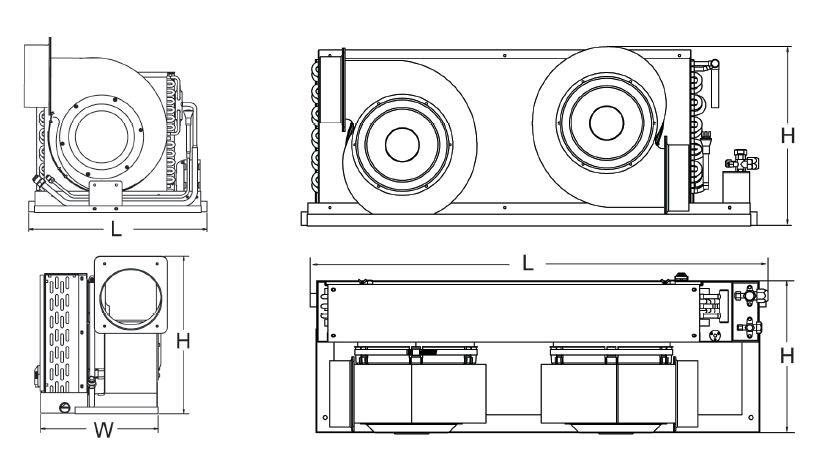

Dimension(L*W*H)

mm

540X360X390

540X350X390

540X360X425

585X380X485

1035X365X405

Indoor airflow

M3/h

630

630

810

1,150

1,260

Noise level

dB(A)

≤52

≤52

≤54

≤59

≤67

Net weight

Kg

14

15

19

25

30.5

Fan duct size

mm

Φ150

Condensed water pipe

Mm

G3/4”-25

Note:A 90 degree turn of the air supply hose will reduce the air volume by more than 25%. When installing, the air pipe should be shortened as much as possible, and the right-angle turn of the air pipe or air duct should be reduced
