Marine Modular Water Chiller

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference
This marine modular chillers are ther most flexible, compact design, and light-weight machines. They are the most reliable and easy-service chiller system for marine use. The single chiller capacity from 36,000 to 180,000btu. Generally it can be combined from 1 to 6 untis to a system with manifold piping system. Our control system can automatic run the units according to the heat load of the indoor fan coil unit. So that it can reduce the energy consumption. This system is widely used for catamaran fast-speed ferry boats. Thanks to the single chillers combining together, this system can back up each other, and provide the most reliable chiller function to the boat.

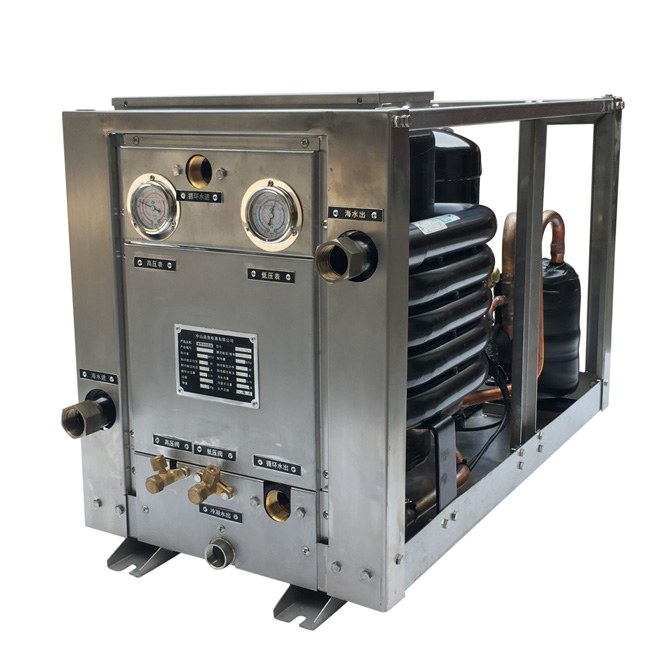

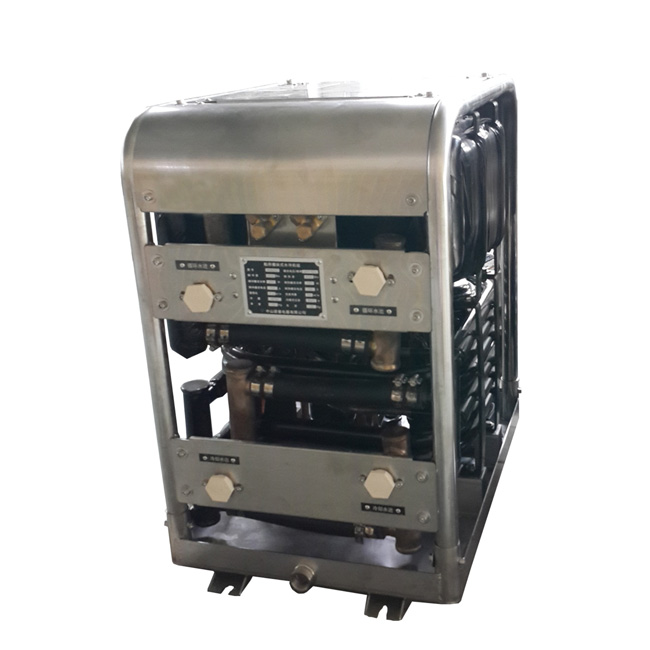

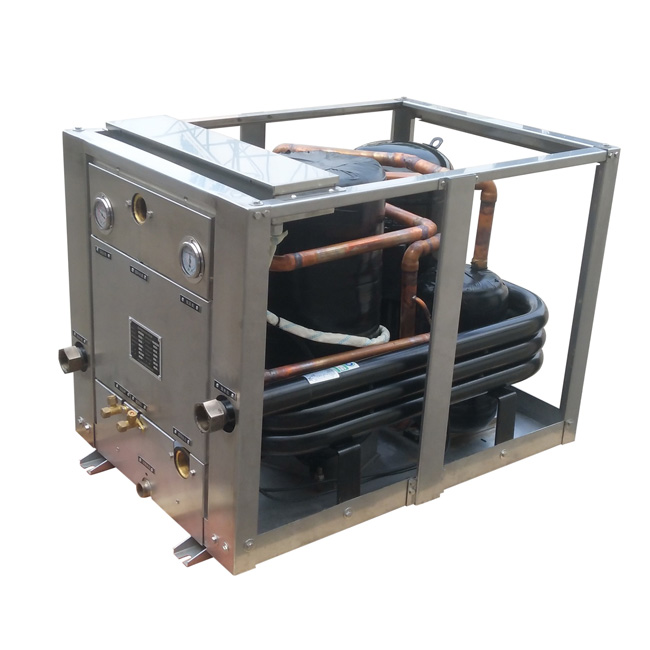

Single chiller has scroll compressor, 4-way valve, coaxis tube condenser, shell& tube evaporator, high/low pressure valve, pressure gauge, drain-pan combine to a compact&light weight system.
T series has knuring titanium coaxis tube for sea water heat exchanger, good for heavy duty chiller systerm in the real sea water use.

Model

MWA36-S2C/T

MWA48-S2C/T

MWA60-S2C/T

MWA72-S2C/T

Power supply

Ph-V-Hz

3Ph/380V/50Hz

Cooling

Capacity

BTU

36,000

48,000

60,000

72,000

Input power

W

2,600

3,460

4,480

5,200

Rated current

A

4.6

6.2

8.0

9.2

EER



4.0

4.0

3.9

4.0

Heating

Capacity

BTU

44,500

59,300

75,000

89,000

Input power

W

3,250

4,330

5,780

6,500

Rated current

A

5.7

7.6

10.3

11.4

COP



4.0

4.0

3.8

4.0

Max.current

A

7.4

9.9

13.6

14.8

Sea water flow

M3/h

2.8

3.7

4.7

5.6

Chilled water flow

M3/h

2.3

3.1

3.8

4.6

Sea water pipe



G1” inner thread

Chilled water pipe



G1” inner thread

Condensed water pipe

Mm

G3/4”-25

Noise level

dB(A)

≤52

≤55

≤62

≤65

Dimension(L*W*H)

mm

692X440X535

888X415X540

888X450X540

Net weight

Kg

84

90

101

107

Refrigerant type



R410a



Model

MWA90-S2C/T

MWA120-S2C/T

MWA150-S2C/T

MWA180-S2C/T

Power supply

Ph-V-Hz

3Ph/380V/50Hz

Cooling

Capacity

BTU

90,000

120,000

150,000

180,000

Input power

W

6,230

9,030

10,360

12,430

Rated current

A

11.8

16.4

19.5

23.4

EER



4.0

3.9

4.2

4.2

Heating

Capacity

BTU

115,000

158,000

189,800

227,700

Input power

W

7,500

11,300

12,940

15,530

Rated current

A

13.5

19.6

23

27.6

COP



4.5

4.0

4.3

4.3

Max.current

A

15.4

23.8

29

34.8

Sea water flow

M3/h

7.3

9.3

11.6

14

Chilled water flow

M3/h

5.5

7.6

9.5

11.4

Sea water pipe



G1” inner grooved

Chilled water pipe



G1” inner grooved

Condensed water pipe

Mm

G3/4”-25

Noise level

dB(A)

≤67

≤71

≤74

≤78

Dimension(L*W*H)

mm

910X600X650

1150X650X820

Net weight

Kg

135

158

215

255

Refrigerant type



R410a
