Marine Type Package AC
Marine Small Chiller/Yacht Air Conditioning
  • Marine Small Chiller/Yacht Air Conditioning
  • Marine Small Chiller/Yacht Air Conditioning
  • Marine Small Chiller/Yacht Air Conditioning
  • Marine Small Chiller/Yacht Air Conditioning

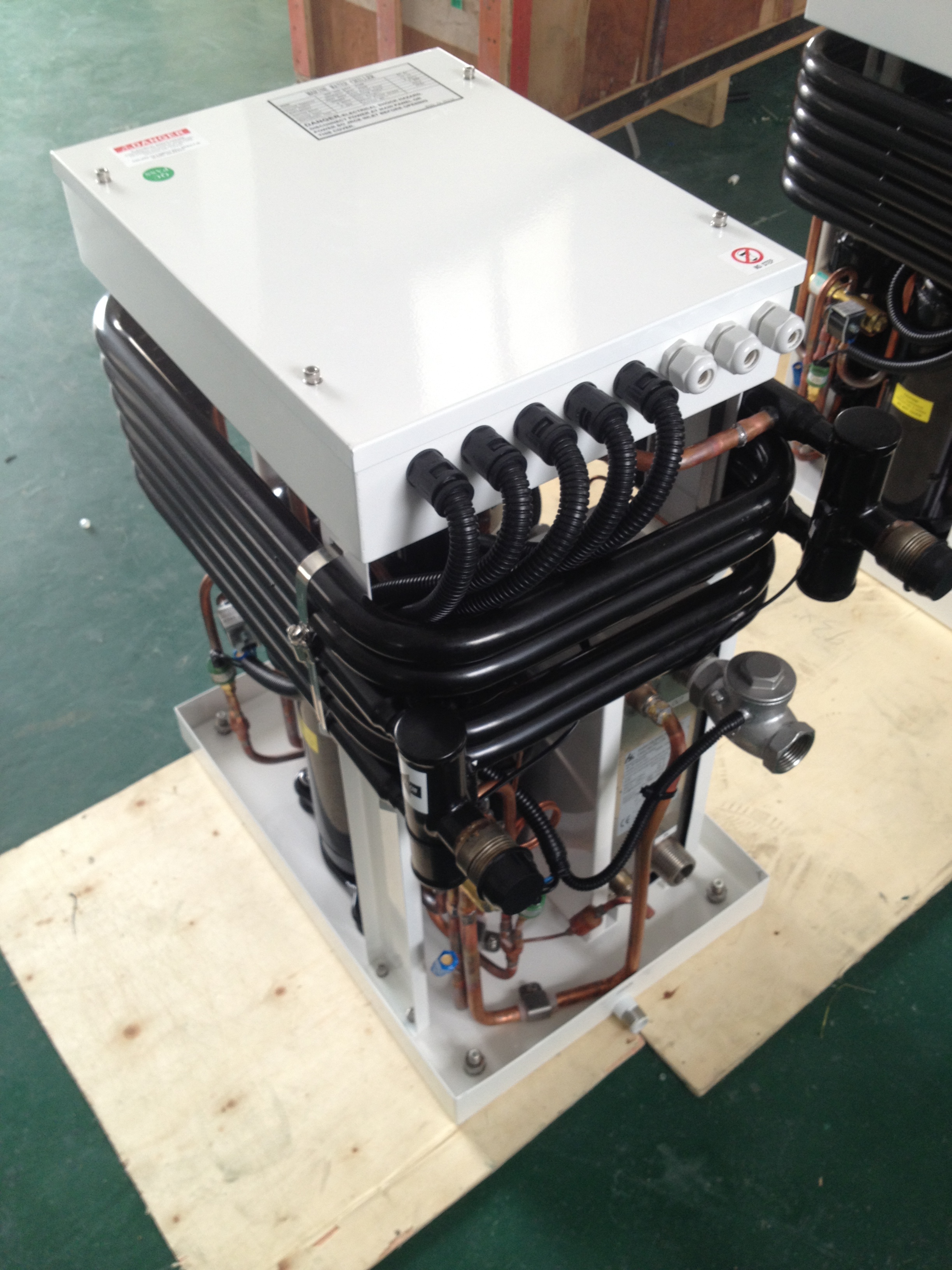

Marine Small Chiller/Yacht Air Conditioning

We're here to help Easy ways to get the answers you need.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification

Specifications:



Model No.

MHW36

Cooling capacity

Btu/h

36000

Heating capacity

Btu/h

38000

Power source

400V-50Hz-3

Input power
(kW)

Cooling

2.7

Heating

2.84

Amp Draw
(A)

Cooling

13

Heating

13.8

Chilled seawater flow

m3/h

2.4

Circulating water flow

m3/h

1.9

Refrigerant



R410a

Dimension
(mm)

Height

580

Width

500

Depth

350

Seawater pipe connection size

1”

Net Weight (kg)

95

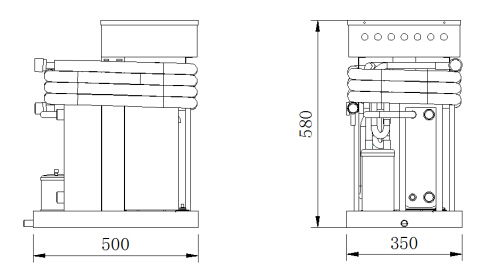

Outline drawing



Marine application
