electric water heaters with heat exchanger,gas boiler heat exchanger,coiled tube heat exchanger

Specification:
1.electric water heaters with heat exchanger
2green material with RoHs Certification
3.very strict testing for water or gas
Feature:
1. Place of Origin:Guangdong, China (Mainland)
2.Model Number:TC-B1
3.Type:Heat Exchanger Tube
4.Application:Heater Parts
5.Inside:titanium tube
6.Outside:PVC shell
7.Size:multi size

Our Advantages:
1) Professional manufacturer, ROHS, BV, SGS,
2) More than 15 years’ experiences of manufacturing. Cooperate with many famous brands: Midea , Gree, TCL, LG, Samsung, Hitachi, Panasonic etc.
3) Experienced technical staff. We have senior engineers and technicians more than 20 people with many years of experiences.
4)Our products can be customized. We can produce for clients according to the sample or drawings.

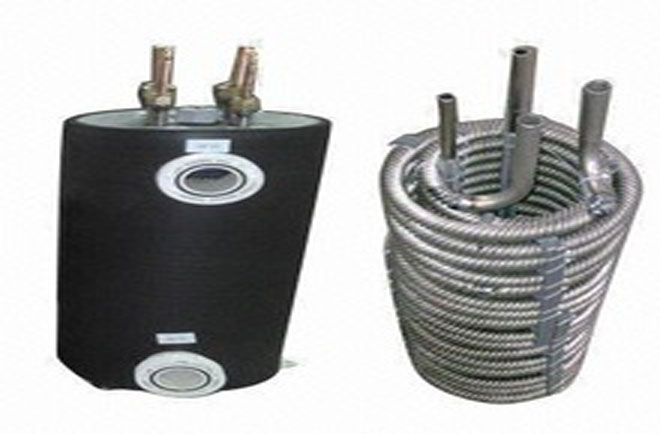

Product detail

inside: titanium coil

titanium tube material

seamless tube--TA1

titanium tube diameter

12.7mm----30mm(normal use)

titanium tube thickness

0.55mm----3.0mm(normal use)

outside: PVC case

PVC cover material

environmental protection

PVC tube diameter

OD110mm----OD400mm

PVC tube thickness

2.7mm----15.3mm

connection

gas inlet and outlet

titanium thread and copper nut/tube

water inlet and outlet

plastic piston

testing/others

water pressure

0.25----1.0Mpa(2.5---10bar)

gas pressure

3.5Mpa

PVC temperature

≤45°C

shell leakage

no

tube leakage

no

pack

0.6mm thick gray sponge

corrosive or not

anti-corrosion

use

pool /heat pump/ air conditioner/chiller etc

Size

titanium tube

water inlet and outlet

titanium tube working prssure

PVC shell     working pressure

each VOL

(CBM)

1/3HP/1/2HP

OD16*0.6mm*L3.3M

32mm

3.0Mpa

0.5Mpa

0.016

3/4HP/1HP

OD16*0.6mm*L5.3M

40mm

3.0Mpa

0.5Mpa

0.028

1.5HP/2HP

OD16*0.6mm*L9M

50mm

3.0Mpa

0.5Mpa

0.043

1HP

OD12.7*0.6mm*L5M

50mm

3.5Mpa

0.4Mpa

0.016

1.5HP

OD12.7*0.6mm*L7.5M

50mm

3.5Mpa

0.4Mpa

0.017

2HP

OD12.7*0.6mm*L11M

50mm

3.5Mpa

0.4Mpa

0.017

3HP

OD12.7*0.6mm*L15.5M

50mm

3.5Mpa

0.4Mpa

0.021

5HP

OD19*0.6mm*L20M

50mm

3.5Mpa

0.4Mpa

0.088

10HP

OD19*0.6mm*L40M

50mm

3.5Mpa

0.4Mpa

0.098

15HP

OD19*1.0mm*L60M

50mm

3.5Mpa

0.4Mpa

0.199

20HP

OD19*1.0mm*L80M

50mm

3.5Mpa

0.4Mpa

0.186

30HP

OD19*0.55mm*L120M

50mm

3.5Mpa

0.4Mpa

0.271

1.Used for electric water heaters

2.Used for gas boiler

3.Used for coil tube
