Coil

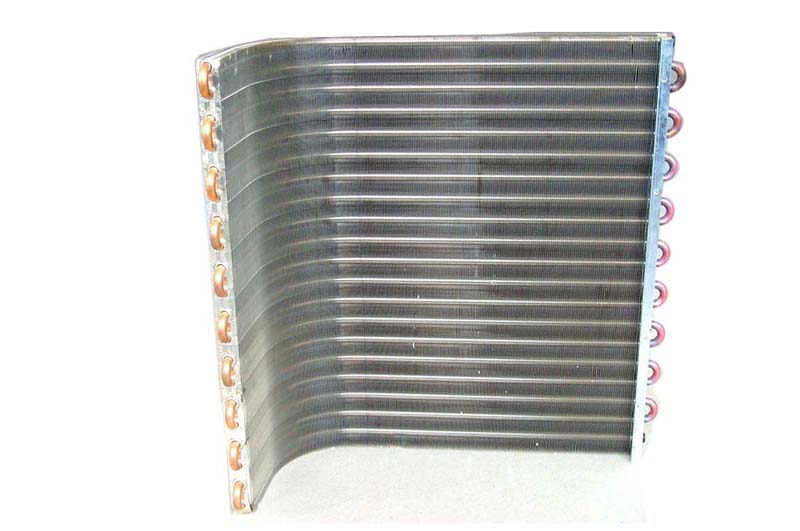

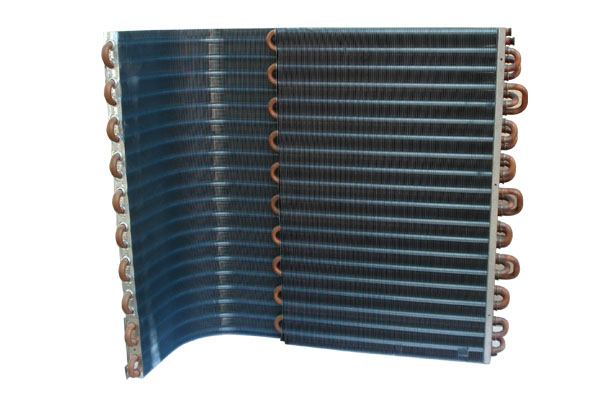

Evaporators Coils
  • Evaporators Coils
  • Evaporators Coils
  • Evaporators Coils
  • Evaporators Coils

Evaporators Coils

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference



● Tube diameters in 3/8" (9.53mm) and 7mm and others upon request.3/8" tube is suitable for high capacities and high flow rates.
● 7mm tube is suitable for low capacities and low flow rates of the refrigerants. Which enables to get higher efficiency in a reduced volume.

Detailed Product Description
7, 7.94, 9.52mm Dia Customized Copper Tube Aluminum Fin Air Cooled Air Conditioning Cooling Coil

Description:
1.Evaporator coil.
2.Can be customerized .
3.Work Pressure:0.2~3.1MPa.
4.Fin space:1.2~3.5mm.
5.Tube Diameter:7, 7.94, 9.52, 12.75, 15.88.



Item Condenser  Type Operation  medium Operation  pressure (MPa) Application
1
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Cold/hot water 1.6
Used for combined air handling unit,  fan coil etc air conditioning devices
2
Φ18/Φ20 Steel pipe winding with steel sheet
Steam 0.2
Used for combined air handling unit,  fan coil etc air conditioning devices
3
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Brine 1.6
Used for heat transfer in cold storage  and all kinds of low temperature  systems
4
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
Ethylene glycol 1.6
Used of energy recovery and low  temperature system devices
5
Φ16 Copper tube with aluminium fin
Ice mud 1.6
Used for dry operation condition,  fresh air dehumidification etc systems
6
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R22 1.9
Used for industry and commerce air  conditioning system
7
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R407C 1.9
Used for industry and commerce air  conditioning system
8
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R134a 3.1
Used for vehicle and vessel etc  transportation devices




1.Used for combined air handling unit, fan coil etc air conditioning devices

2.Used for heat transfer in cold storage and all kinds of low temperature systems

3.
Used of energy recovery and low temperature system devices

4.Used for dry operation condition, fresh air dehumidification etc systems

5.
Used for industry and commerce air conditioning system

6.
Used for vehicle and vessel etc transportation devices
