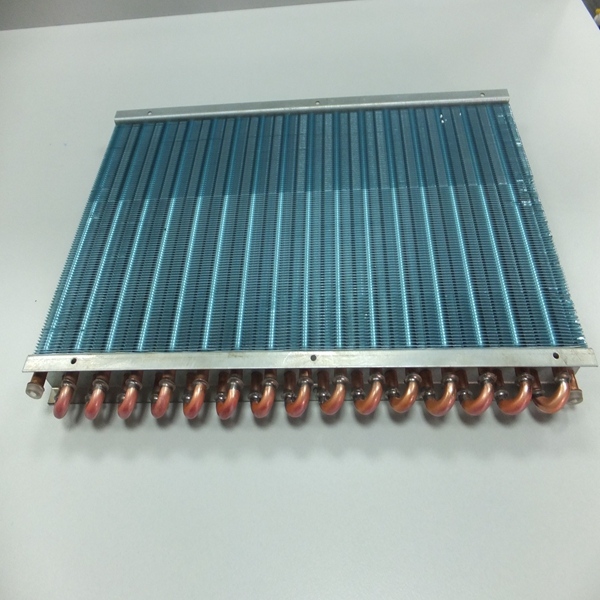

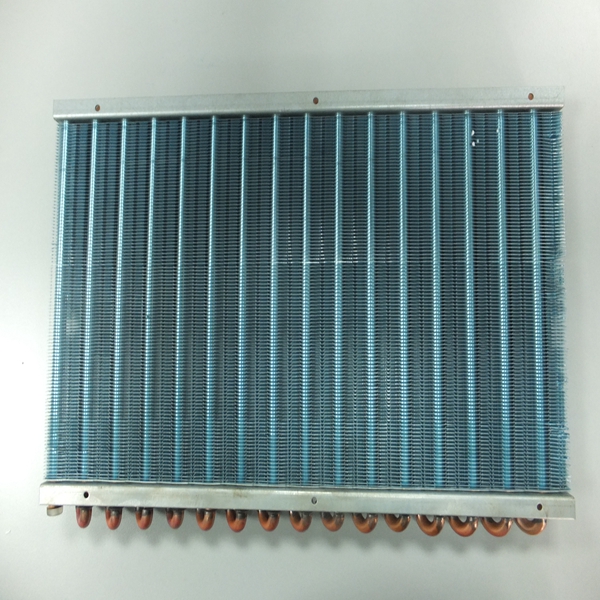

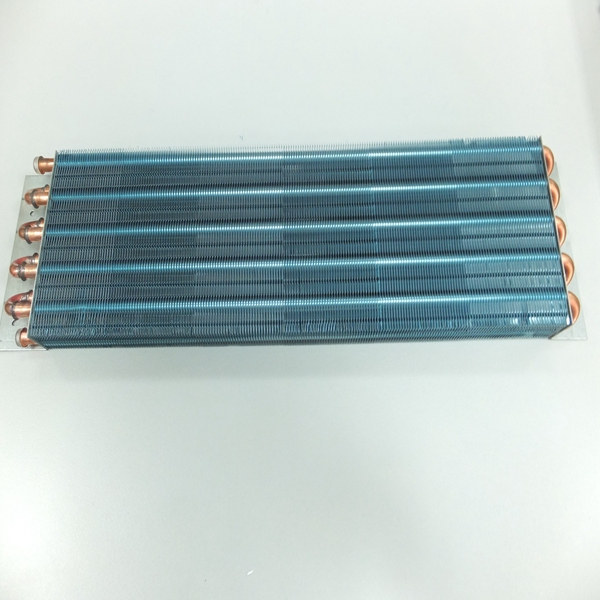

Cabinet air conditioner coil:
Cabinet air conditioner coils are mainly used in low-moderate cooling occasions, such as hospitals, clean rooms, ships,
chemical air conditioner, food, paper industry, tobacco and other factories or laboratories.

Specification:
1. Tube O.D.: 7mm.
2. Materials: copper tube aluminum fin;
3. This product welded depending on the material and application.
4. Heat exchanger outline size: can be manufactured according to clients’ requirements.

Feature:
1. Tube material: copper , aluminum, stainless steel, ect.
2. Fin material: copper, hydrophilic aluminum, bare aluminum, stainless steel, ect.
3. Fin type: louver fin or flat fin or corrugated fin
4. copper pipe: diameter 7mm or 8mm or 9.52mm, grooved or smooth tube
5. pitch of fins can be adjusted between 1.8—5.8mm.
6. pitch of holes and pitch of rows : 25*21.65MM and 12.7*19.05MM
7. suitable for R134A, R22, R404A, R407C refrigerant and so on
8. voltage: 220V/1/50HZ and 380V/3/50HZ or other type.
9. different alternative condensing fans available: shaded pole or outer rotor fan motor.
10.did gas examination under 3.0Mpa air pressure to ensure the tightness.
11.widely used in refrigeration industry, cold room and other cooling system.
12. we can supply products as per customized samples or drawing.
Fin Type Copper Tube O.D.
(mm)
Row Space
(mm)
Hole Space
(mm)
Fin Thickness
(mm)
Fin Space(mm)
Flat fin Sine wave with
blade fin
Smooth sine
wave fin
Window fin Sesamoid fin
A 7 12.7 21 0.105 / / 1.3 1.3 /
B 7 13.2 17.6 0.105 / / 1.3 1.3 /
C 7 12.7 20.4 0.105 / / 1.3~1.8 1.3~1.8 /
D 7.94 15.88 25.4 0.105 1.8~3.0 1.8~3.0 1.8~3.0 1.8~3.0 /
E 7.94 19.05 22 0.105~0.13 1.4~3.0 1.4~3.0 1.4~3.0 1.4~3.0 /
E 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
F 9.52 22 25.4 0.18~0.4 3.5~6.35 / / / /
G 9.52 21.65 25 0.105~0.18 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
H 9.52 21.65 25 0.15~0.24 3.2~6.35 3.2~6.35 3.2~6.35 / /
I 12.75 27.5 31.75 0.115~0.15 1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
J 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /
K 15.88 34.64 40 0.115~0.15 / 2.6~3.5 2.6~3.5 / /


Item Condenser  Type Operation  medium Operation  pressure (MPa) Application
1
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Cold/hot water 1.6
Used for combined air handling unit,  fan coil etc air conditioning devices
2
Φ18/Φ20 Steel pipe winding with steel sheet
Steam 0.2
Used for combined air handling unit,  fan coil etc air conditioning devices
3
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Brine 1.6
Used for heat transfer in cold storage  and all kinds of low temperature  systems
4
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
Ethylene glycol 1.6
Used of energy recovery and low  temperature system devices
5
Φ16 Copper tube with aluminium fin
Ice mud 1.6
Used for dry operation condition,  fresh air dehumidification etc systems
6
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R22 1.9
Used for industry and commerce air  conditioning system
7
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R407C 1.9
Used for industry and commerce air  conditioning system
8
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R134a 3.1
Used for vehicle and vessel etc  transportation devices
