Coil
Heating Coils/Water Coil
  • Heating Coils/Water Coil
  • Heating Coils/Water Coil
  • Heating Coils/Water Coil
  • Heating Coils/Water Coil

Heating Coils/Water Coil

In case you do not find the type or model in the website We can customized according to your request.
Contact Now
  • Features
  • Technical Data
  • Application
  • Certification
  • Part List
  • Reference

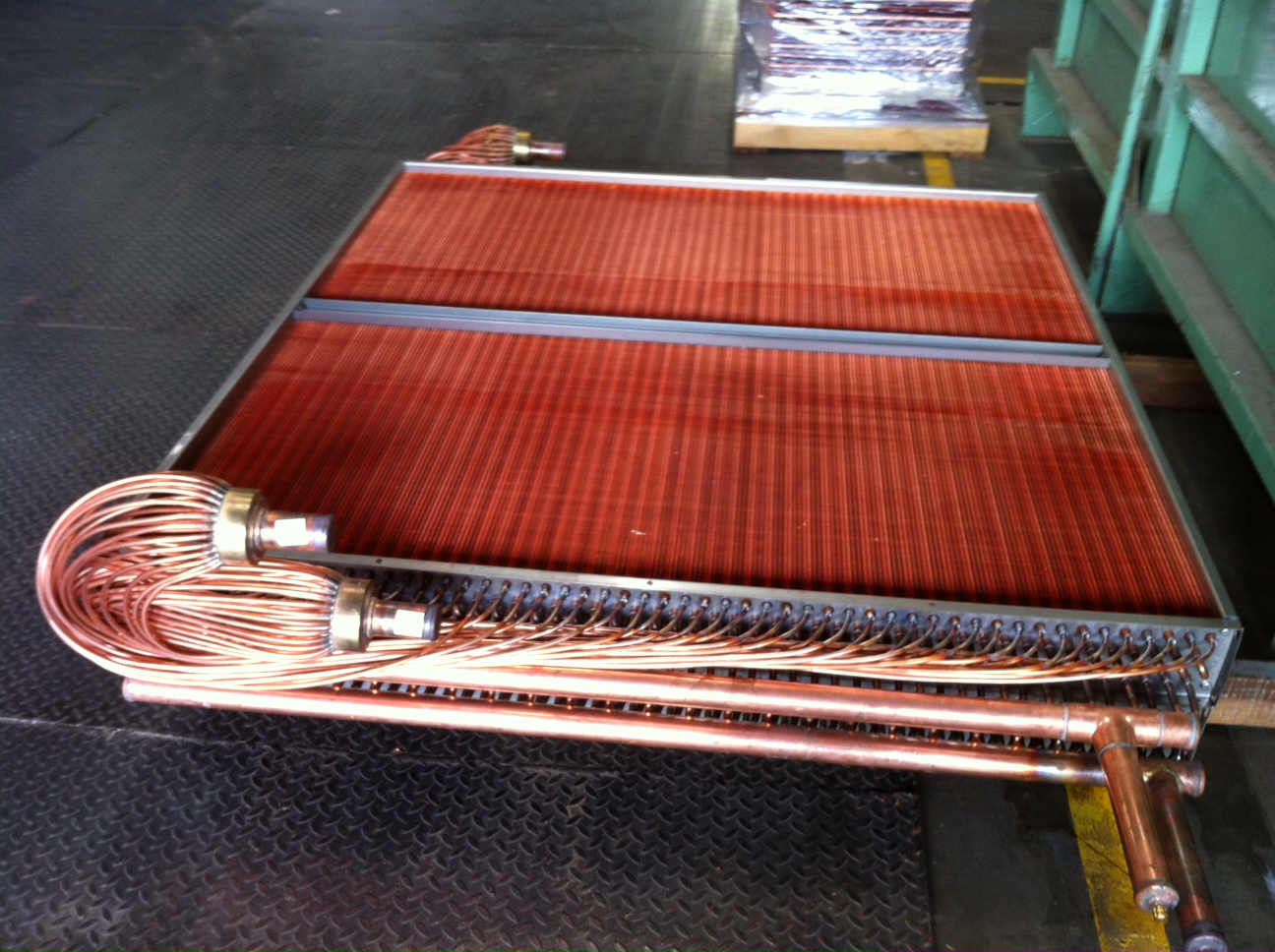

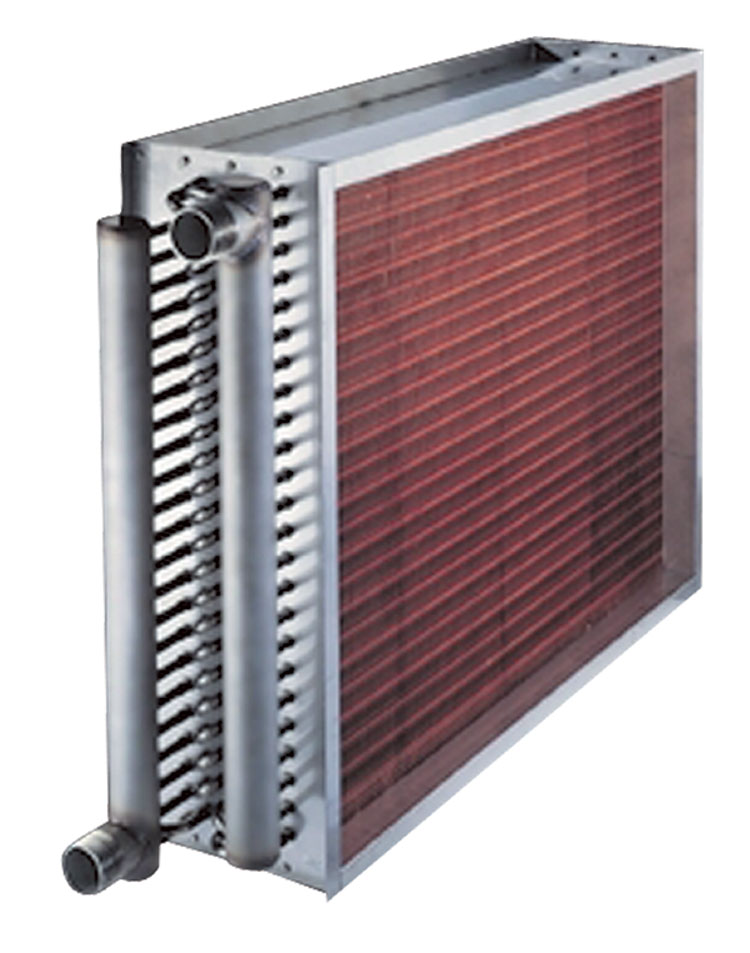

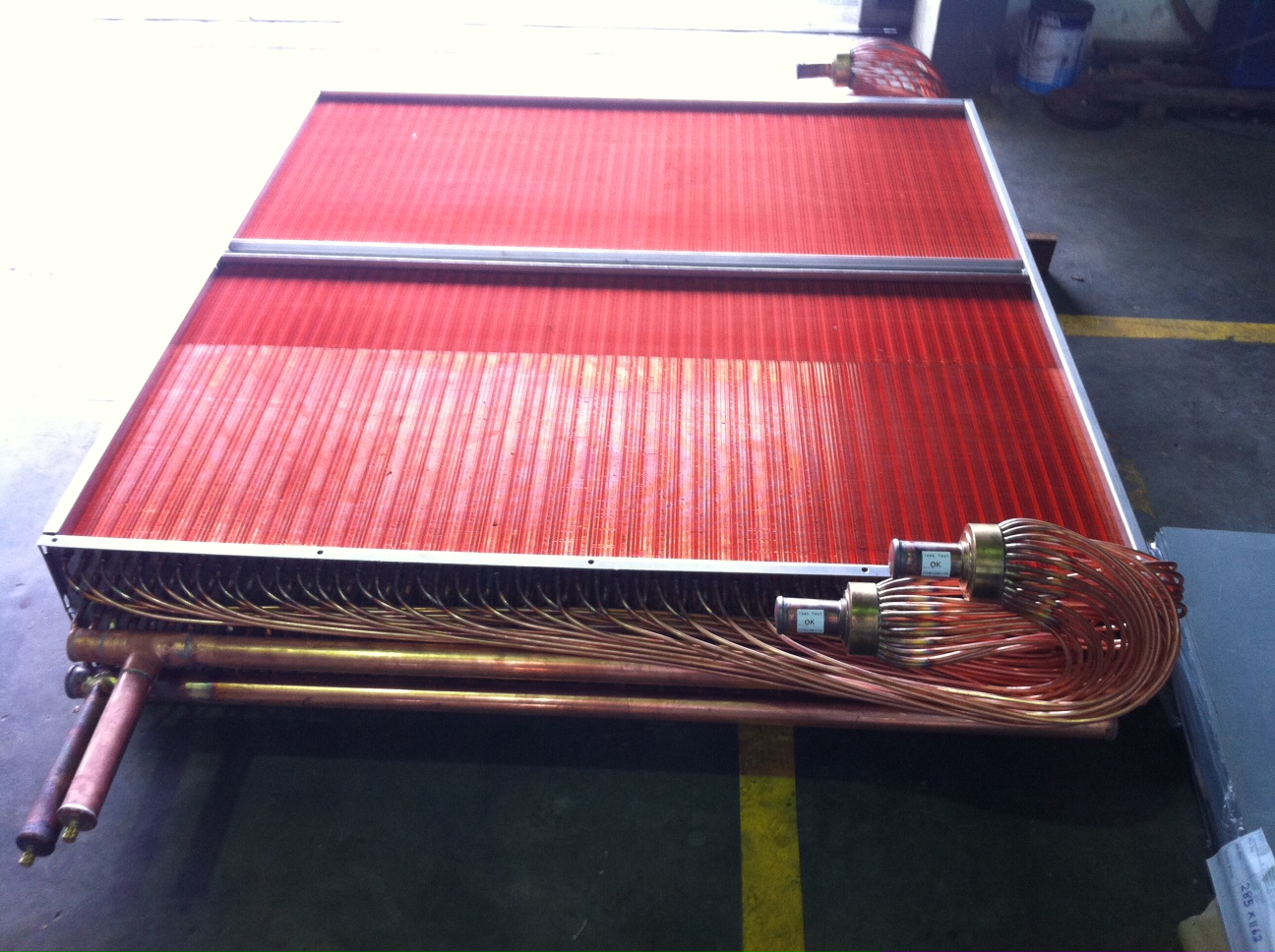

Heating Coils/Water Coil

Whether you need replacement HVAC coils, optimization of existing coils,
or custom coils—you can depend on Shenglin for fast and reliable coil design, delivery, and servicing.

Applications:

Fully Cleanable with Removable Side Panels
Ideal for High Temperature (above 35C ) Food Processing Rooms where Cleanability is Critical
Medium to Large Capacity for High Temperatures
NOT suitable for room temperatures below 35C

Feature:
1.different alternative condensing fans available: shaded pole or outer rotor fan motor.
2. Fin material: copper, hydrophilic aluminum, bare aluminum, stainless steel, ect.
3. Fin type: louver fin or flat fin or corrugated fin
4. copper pipe: diameter 7mm or 8mm or 9.52mm, grooved or smooth tube
5. pitch of fins can be adjusted between 1.8—5.8mm.


Fin Type Copper Tube O.D.
(mm)
Row Space
(mm)
Hole Space
(mm)
Fin Thickness
(mm)
Fin Space(mm)
Flat fin Sine wave
with blade fin
Smooth sine
wave fin
Window fin Sesamoid fin
A 7 12.7 21 0.105 / / 1.3 1.3 /
B 7 13.2 17.6 0.105 / / 1.3 1.3 /
C 7 12.7 20.4 0.105 / / 1.3~1.8 1.3~1.8 /
D 7.94 15.88 25.4 0.105 1.8~3.0 1.8~3.0 1.8~3.0 1.8~3.0 /
E 7.94 19.05 22 0.105~0.13 1.4~3.0 1.4~3.0 1.4~3.0 1.4~3.0 /
E 9.52 22 25.4 0.105~0.15 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
F 9.52 22 25.4 0.18~0.4 3.5~6.35 / / / /
G 9.52 21.65 25 0.105~0.18 1.6~3.2 1.6~3.2 1.6~3.2 1.6~3.2 /
H 9.52 21.65 25 0.15~0.24 3.2~6.35 3.2~6.35 3.2~6.35 / /
I 12.75 27.5 31.75 0.115~0.15 1.5~3.5 1.5~3.5 1.5~3.5 1.5~3.5 1.6~3.2
J 15.88 33 38.1 0.115~0.15 1.5~4.0 1.5~4.0 1.5~4.0 / /
K 15.88 34.64 40 0.115~0.15 / 2.6~3.5 2.6~3.5 / /

Item Condenser  Type Operation  medium Operation  pressure (MPa) Application
1
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Cold/hot water 1.6
Used for combined air handling unit,  fan coil etc air conditioning devices
2
Φ18/Φ20 Steel pipe winding with steel sheet
Steam 0.2
Used for combined air handling unit,  fan coil etc air conditioning devices
3
Φ16/Φ9.52/Φ12.7 Copper tube with aluminium fin
Brine 1.6
Used for heat transfer in cold storage  and all kinds of low temperature  systems
4
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
Ethylene glycol 1.6
Used of energy recovery and low  temperature system devices
5
Φ16 Copper tube with aluminium fin
Ice mud 1.6
Used for dry operation condition,  fresh air dehumidification etc systems
6
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R22 1.9
Used for industry and commerce air  conditioning system
7
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R407C 1.9
Used for industry and commerce air  conditioning system
8
Φ9.52/Φ7.94/Φ7 Copper tube with aluminium fin
R134a 3.1
Used for vehicle and vessel etc  transportation devices


1.Used for combined air handling unit, fan coil etc air conditioning devices

2.Used for heat transfer in cold storage and all kinds of low temperature systems

3.Used of energy recovery and low temperature system devices

4.Used for dry operation condition, fresh air dehumidification etc systems

5.Used for industry and commerce air conditioning system

6.Used for vehicle and vessel etc transportation devices
